Yokogawa EJX630A DPharp Pressure Transmitter 0-30 Bar 4-20mA HART Ex

Manufacturer: Yokogawa
Model: EJX630A
Type: In-line gauge pressure transmitter
Calibration range: 0–30 bar
Output: 4–20 mA DC
Communication: Digital / HART
Power supply: DC
Process connection: Stainless-steel hygienic/sanitary connection
Country of manufacture: Japan

The Yokogawa EJX630A is a high-performance DPharp gauge pressure transmitter designed for accurate measurement of liquid, gas and steam pressure. Yokogawa specifies reference accuracy up to ±0.04% of span depending on configuration, with a typical response time of approximately 90 ms.

Features:

• 0–30 bar calibrated range
• 4–20 mA DC analogue output
• Digital communication / HART
• DPharp digital sensor technology
• High accuracy and long-term stability
• Local LCD display
• Stainless-steel process connection
• Aluminium transmitter housing
• Hazardous-area/explosion-protection approvals
• Suitable for industrial process applications
• Made in Japan

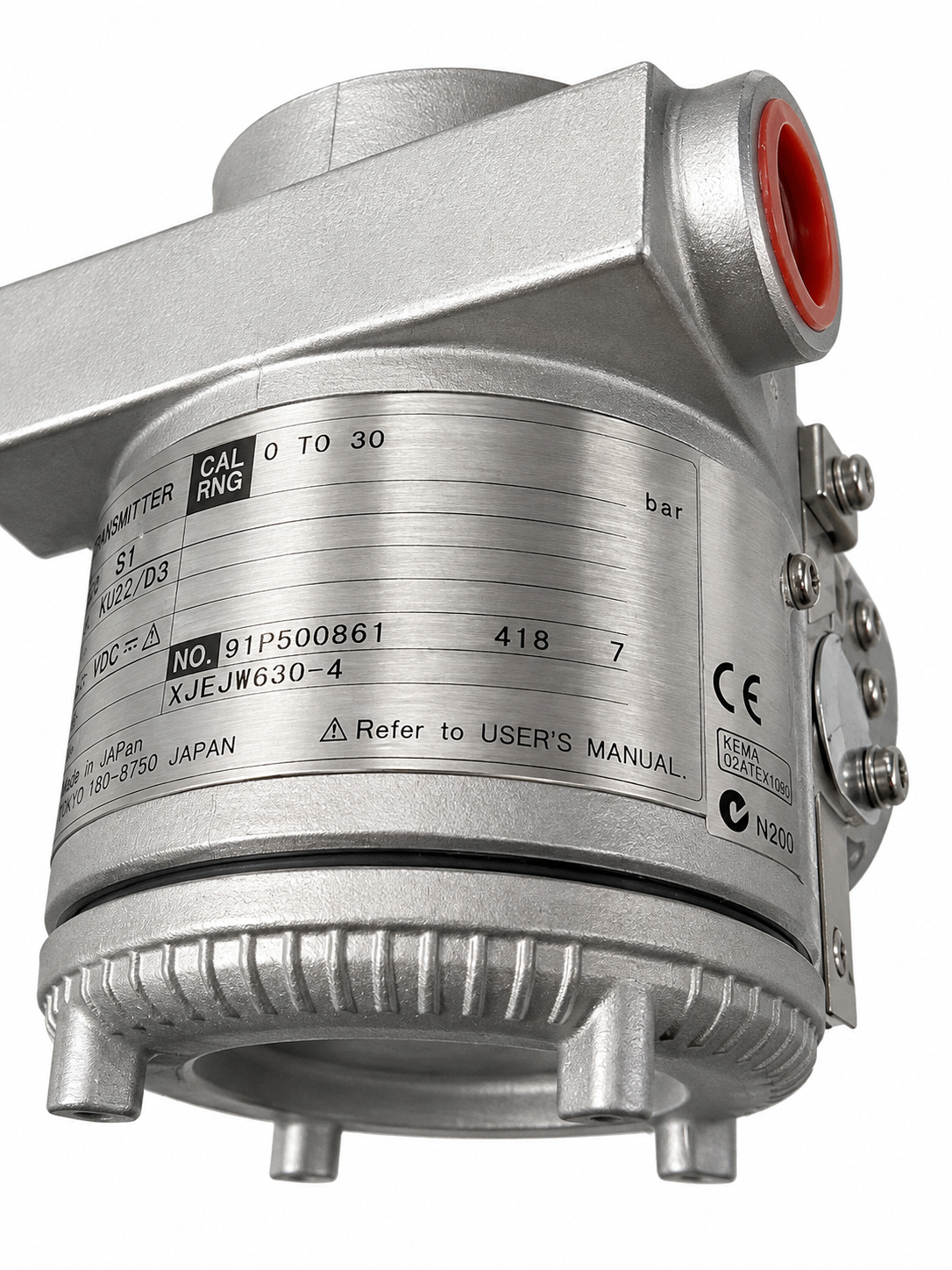

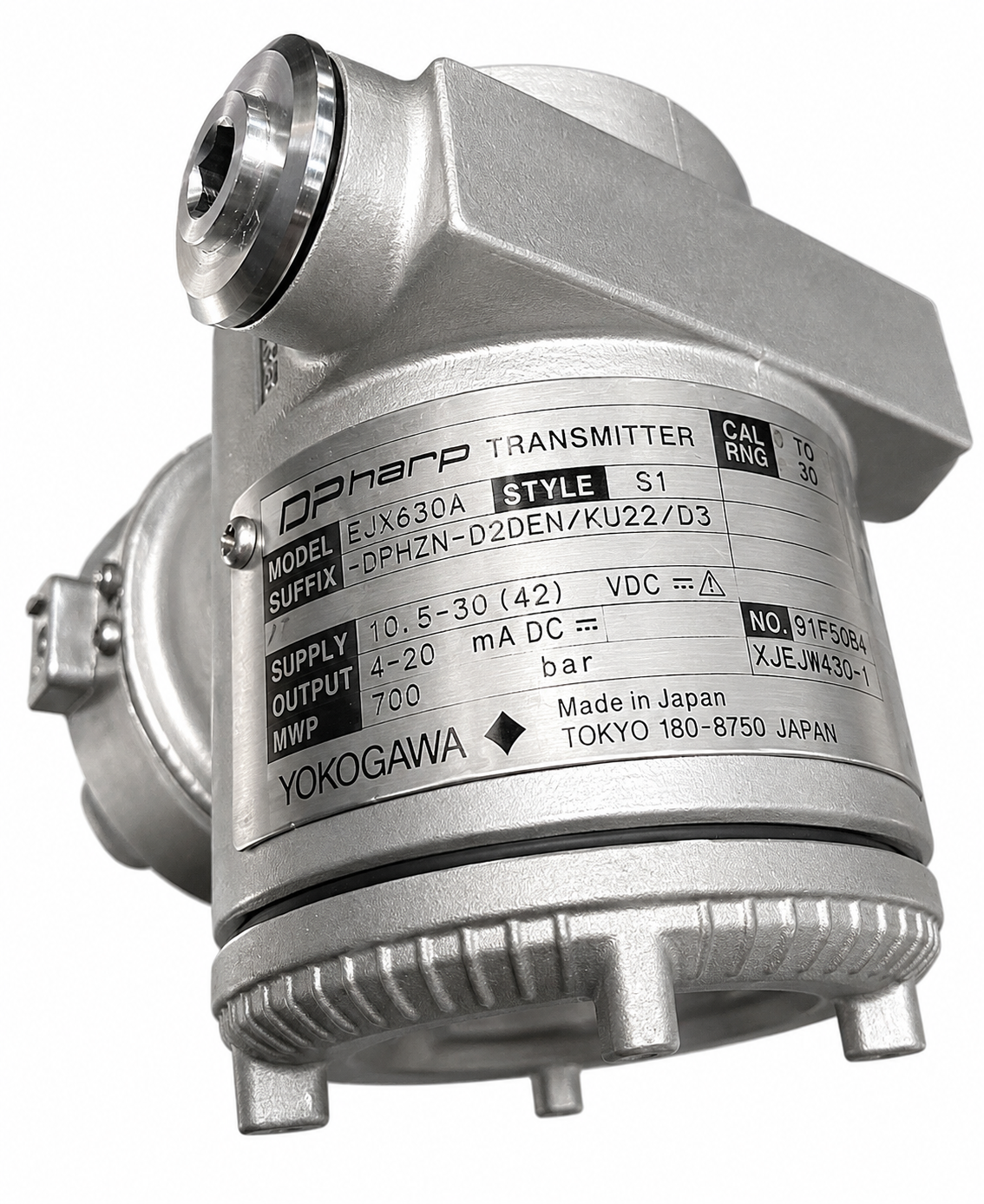

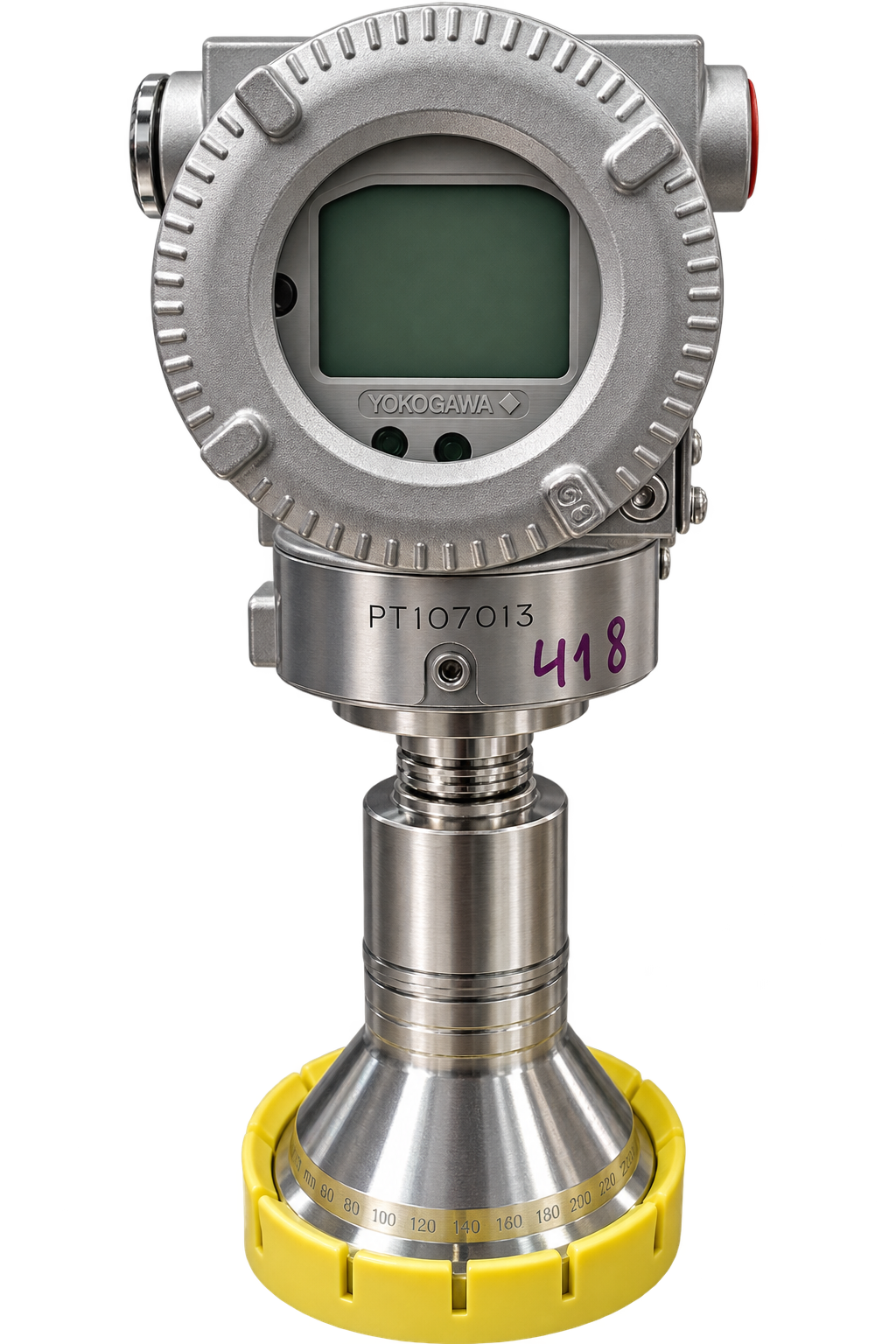

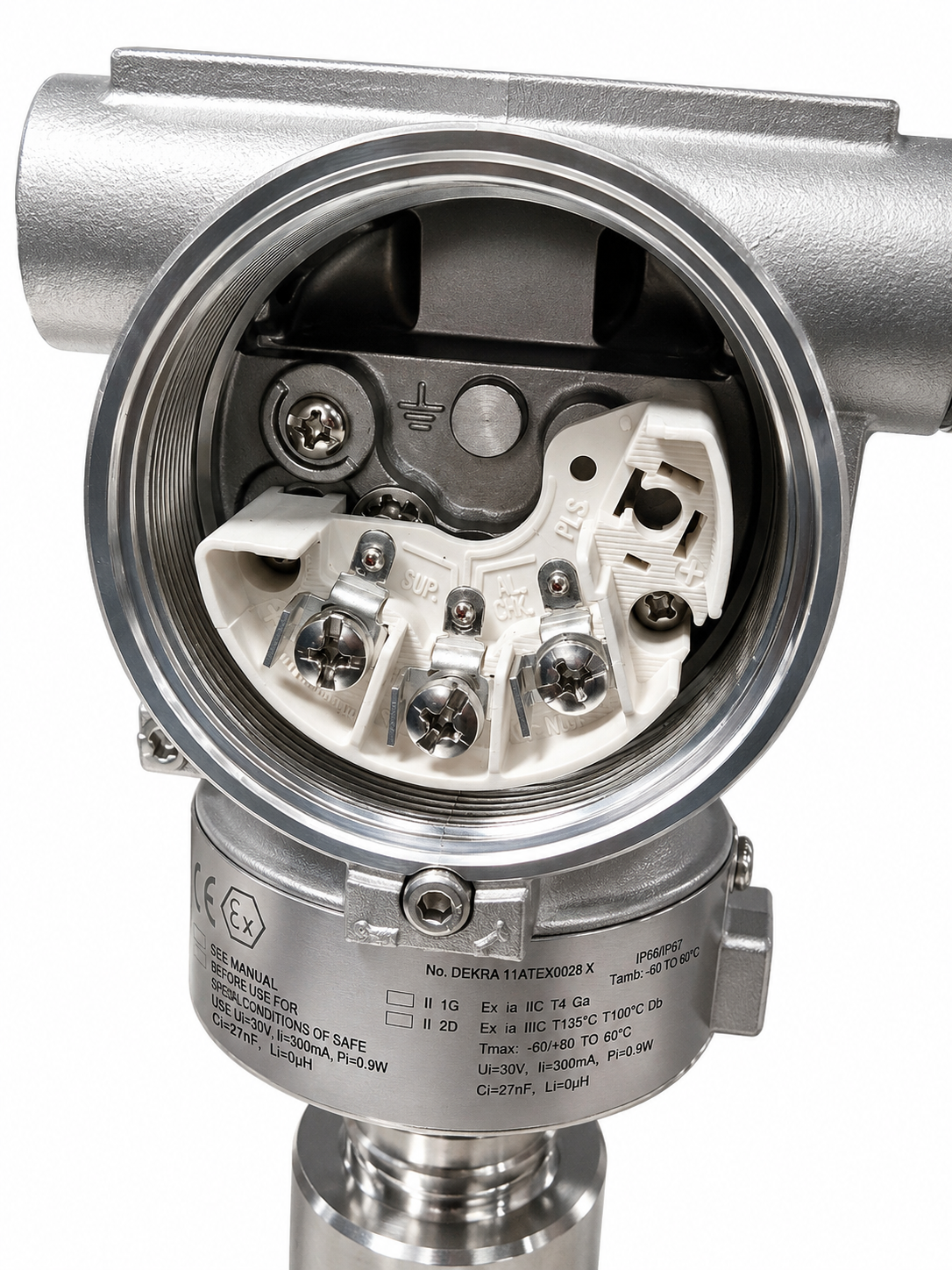

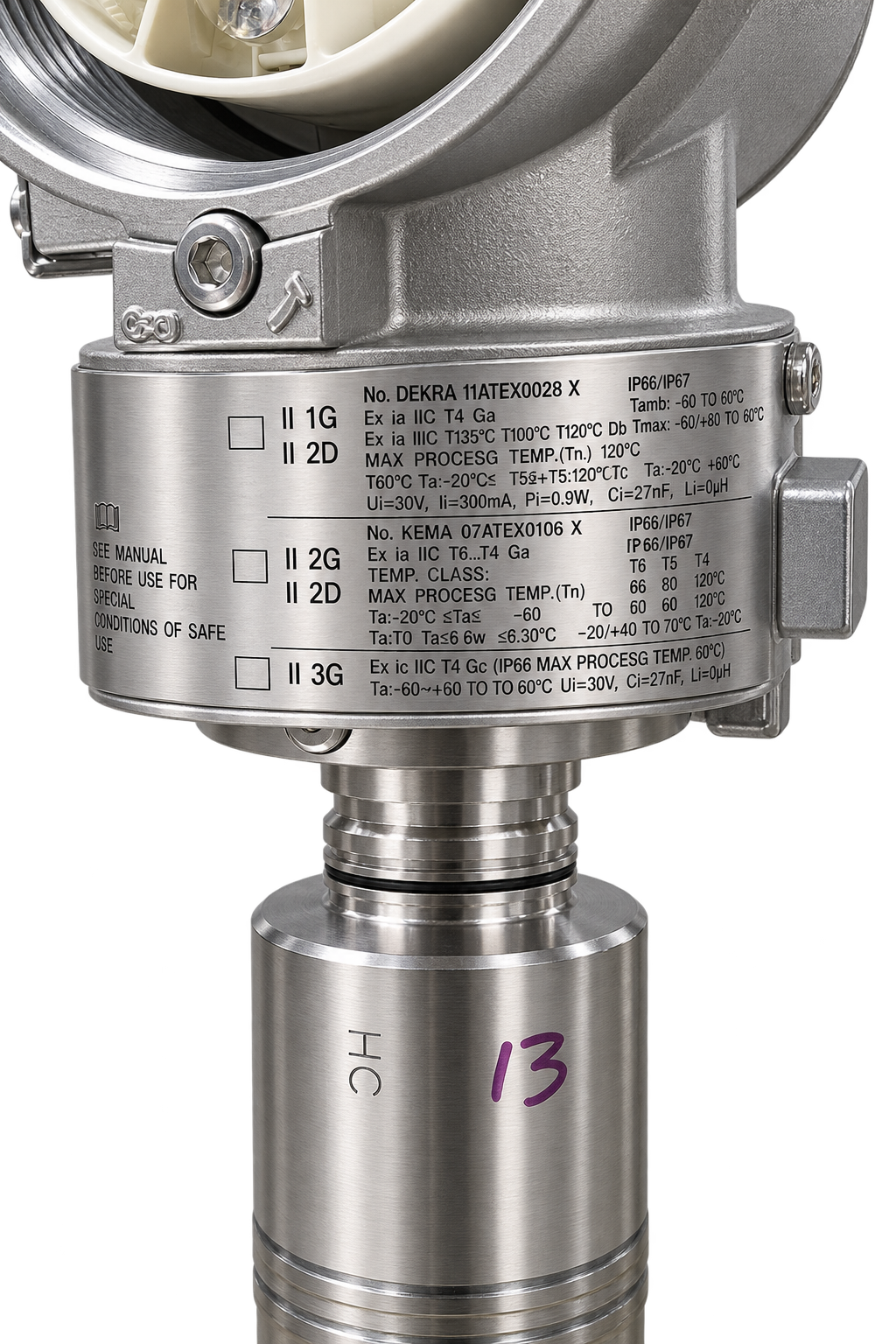

The transmitter has an integral display and the front cover is currently fitted. The terminal compartment and process connection are shown in the photographs.

Condition: Used.
