Wright Flow Technologies OL3/0054/15 Rotary Lobe Pump SEW Geared Motor 15 Bar

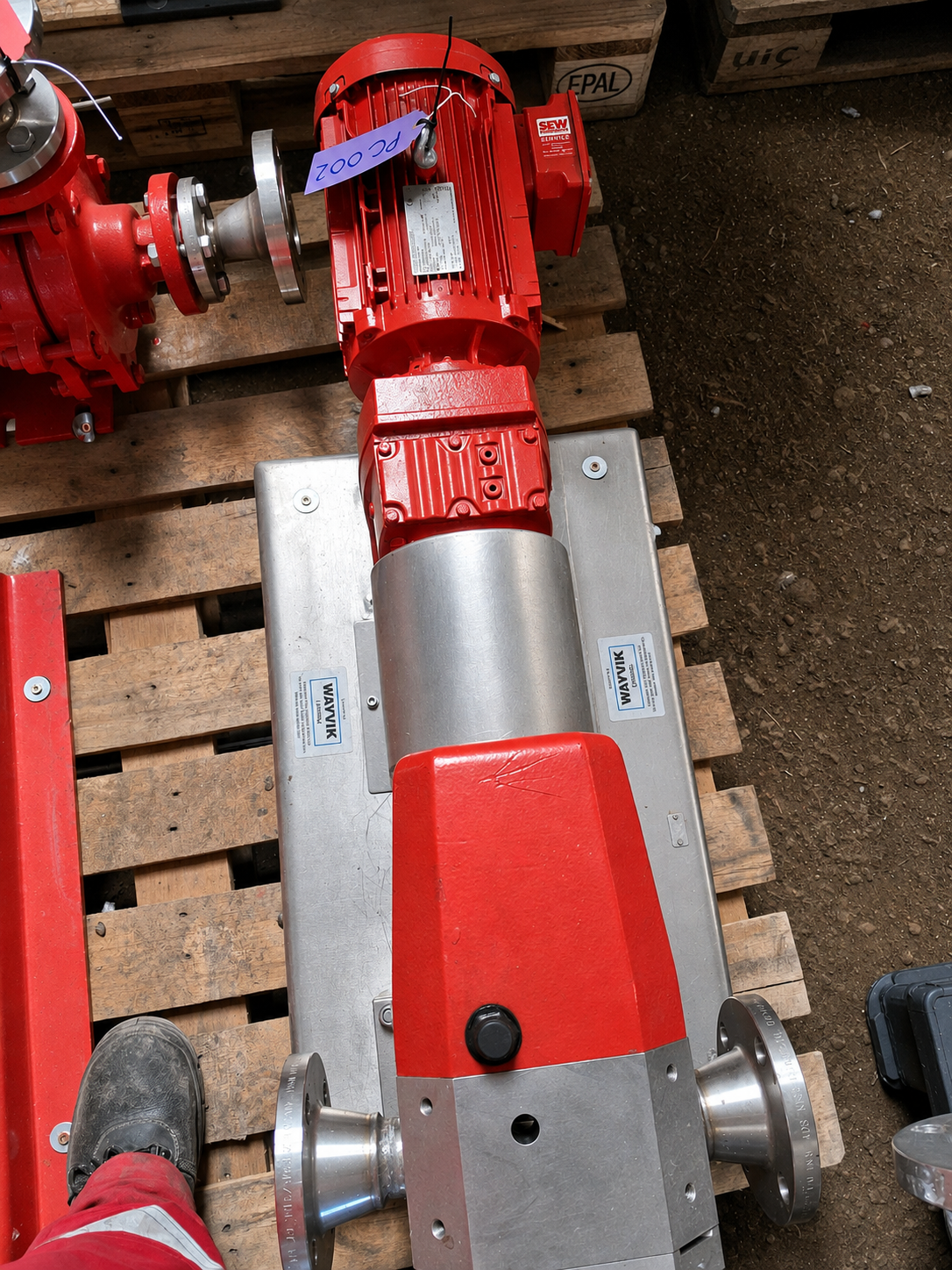

Industrial Wright Flow Technologies On-Line OL3/0054/15 rotary lobe pump, complete with SEW-Eurodrive geared motor and mounted drive assembly.

This is a robust positive-displacement rotary lobe pump designed for industrial process and fluid-handling applications. The Wright Flow Technologies On-Line range was manufactured for applications including food, beverage, pharmaceutical, chemical and cosmetic processing. The OL3/0054/15 is the S3S configuration of the On-Line range.

PUMP DETAILS

• Manufacturer: Wright Flow Technologies Ltd
• Series: On-Line
• Model: OL3/0054/15
• Serial No.: 67807/A/16
• Pump type: Rotary lobe / positive displacement
• Maximum pressure marked on pump: 15 bar
• Nominal connection size: 50 mm / 2"
• Theoretical displacement: 0.54 litres/revolution
• Maximum pump speed: 870 rpm
• Positive-displacement twin-lobe pumping principle
• Industrial geared drive arrangement

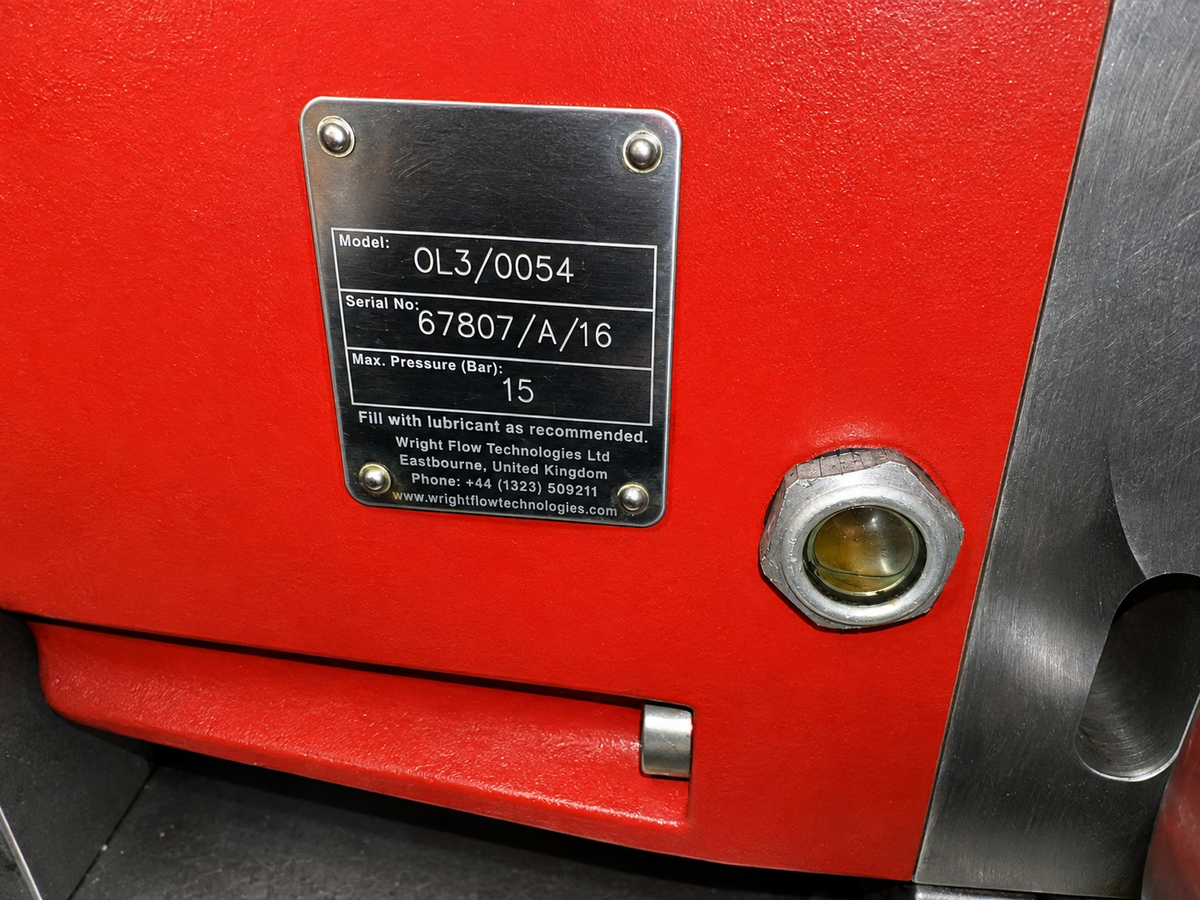

The manufacturer specifies the OL3/0054/15 with a theoretical displacement of 0.54 L/rev, 50 mm nominal connections, 14 bar maximum differential pressure and 870 rpm maximum speed. The actual pump identification plate is marked with a 15 bar maximum pressure rating.

DRIVE / MOTOR

Fitted with a SEW-Eurodrive geared motor, providing a suitable low-speed drive arrangement for the rotary lobe pump.

Motor plate details include:

• SEW-Eurodrive
• 3-phase AC motor
• 50 Hz
• 230/400 V
• Geared motor configuration
• CE marked

CONDITION

Used industrial equipment in generally good overall condition for its age.
