Wilden P2/SRRP/TF/TF/STF/014 AODD Double Diaphragm Pump 1" Stainless Steel

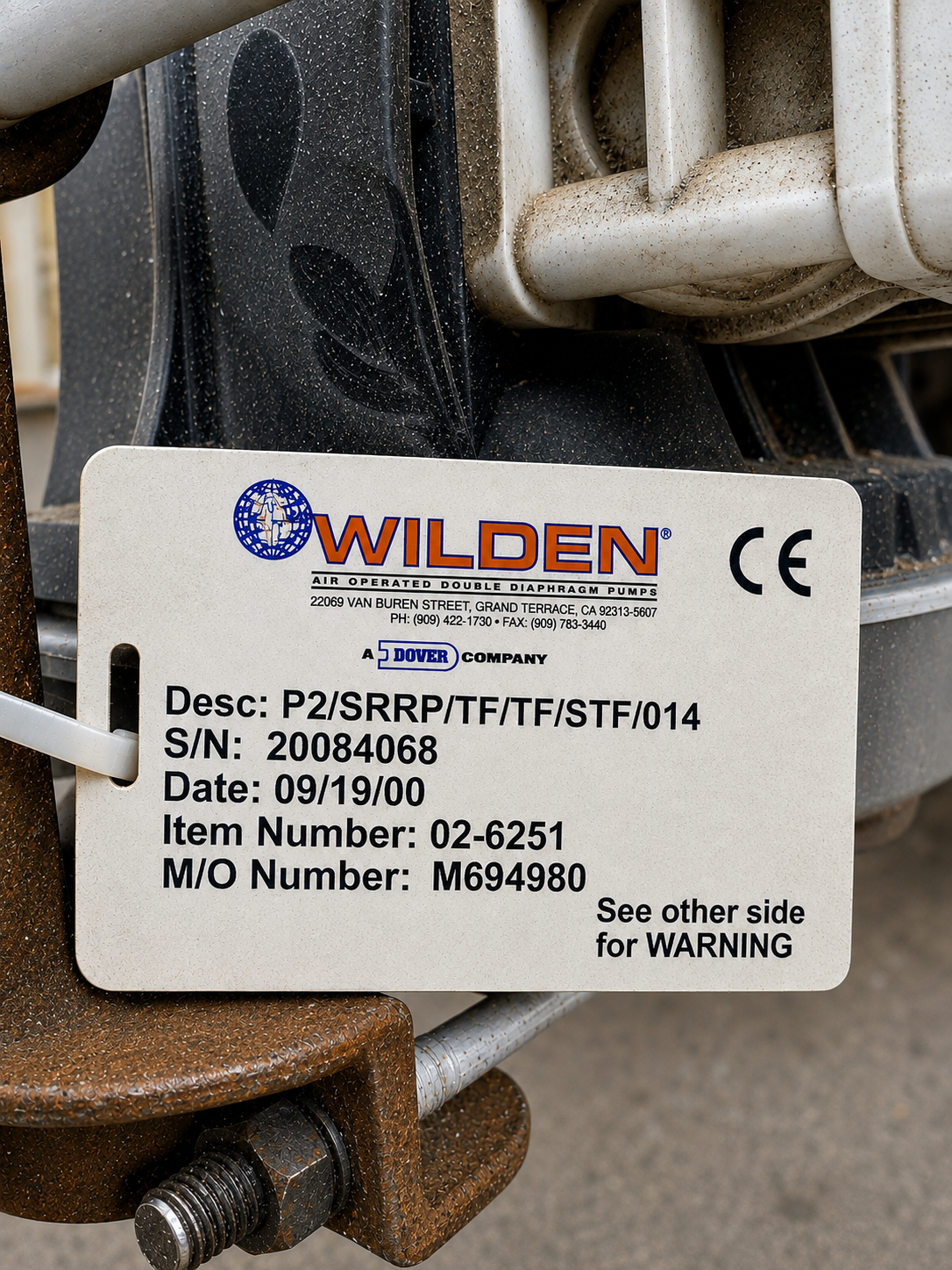

For sale is a Wilden P2 Series Air-Operated Double Diaphragm (AODD) Pump, identified from the manufacturer's plate as:

• Manufacturer: Wilden
• Model: P2/SRRP/TF/TF/STF/014
• Pump Type: Air-Operated Double Diaphragm Pump
• Serial No.: 0020084068
• Date: 09/19/00
• Item No.: 02-6251
• M/O No.: M694980
• Size: P2 / 1" class
• Condition: Used

The Wilden P2 is a rugged, positive-displacement, self-priming AODD pump designed for industrial fluid transfer. Wilden's P2 metal range is a 25 mm (1") pump, with published maximum flow rates of up to approximately 172 L/min and maximum pressure of 8.6 bar (125 psi), depending on the exact configuration and diaphragm material.

Features

• Genuine Wilden P2 industrial diaphragm pump
• Air-operated — no electric motor required
• Positive displacement design
• Self-priming
• Suitable for a wide range of industrial fluids
• Robust metal construction
• Large front and rear access clamps for servicing

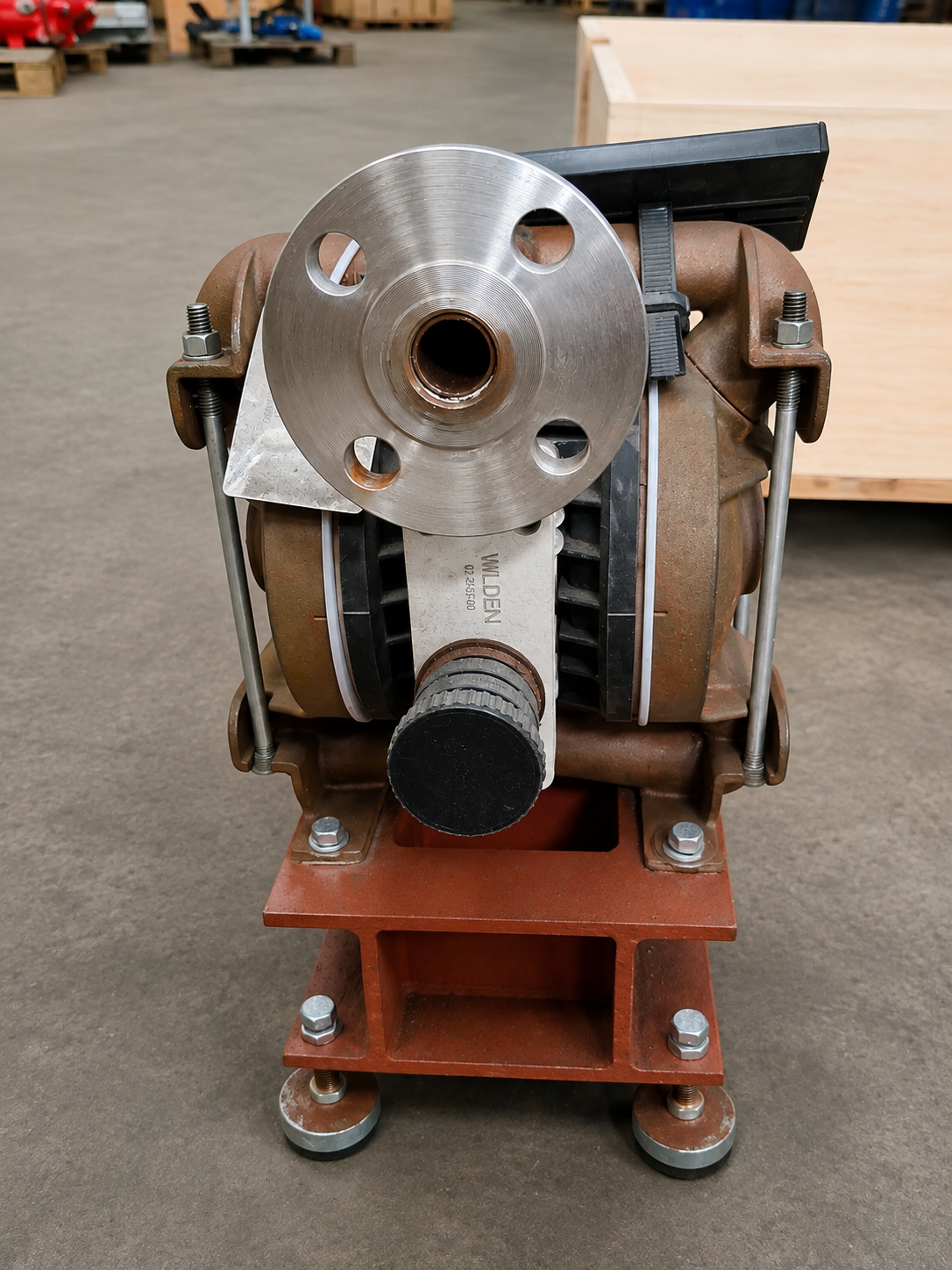

• Mounted on a steel support frame
• Flanged connections fitted
• Supplied as pictured

Technical Information

The standard P2 metal configuration uses a 1/4" FNPT air inlet and 1" liquid inlet, with configuration-dependent discharge connections. Wilden specifies maximum pressure of 8.6 bar / 125 psi and maximum flow of up to approximately 172 L/min for suitable configurations.

The pump is suitable for applications including:

• Chemical transfer
• Slurry handling
• Wastewater
• Industrial process fluids
• Abrasive liquids
• Viscous fluids
• Dosing and transfer duties
• General industrial pumping

Condition

Used condition.

The pump shows clear signs of previous industrial use
