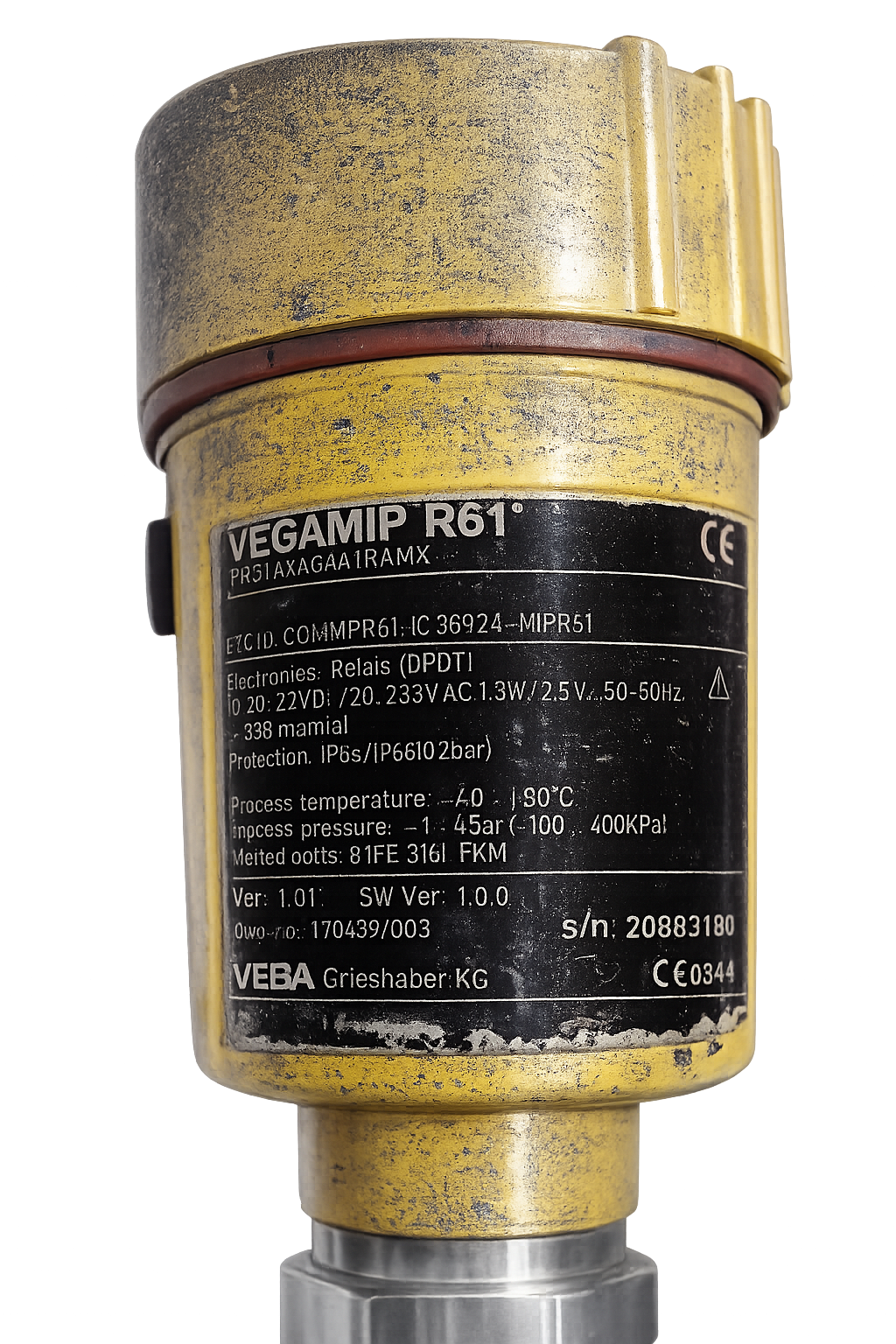

VEGA VEGAMIP R61 Microwave Receiver MPR61.XXAGA1RKMX 316L Stainless Steel

The VEGA VEGAMIP R61 is an industrial microwave receiver used as part of the VEGAMIP microwave barrier system for reliable point level detection of bulk solids and liquids. Designed for demanding industrial environments, the sensor operates without contact with the product, making it ideal for abrasive, dusty, or difficult process conditions.

Key Features

• Microwave receiver for use with VEGAMIP T61 transmitter
• Non-contact level detection for solids and liquids
• Reliable operation with dusty, abrasive, or changing product conditions
• Suitable for silos, bunkers, crushers, pipelines, vessels, and conveyor systems
• Wear-free and maintenance-free measuring principle
• Can detect materials through non-metallic vessel walls
• Suitable for object detection applications including vehicles and ships
• Hazardous area approved (ATEX / IECEx versions available)

Specifications

• Measuring distance: Up to 100 m
• Process temperature: -40°C to +80°C (up to +450°C with optional high-temperature adapter)
• Process pressure: -1 to +4 bar
• Wetted materials: 316L Stainless Steel, PTFE
• Protection rating: IP66/IP67 or IP66/IP68 depending on version
• Housing options: Stainless Steel, Aluminium, or Plastic
• Power supply: 20–55 VDC
• Output: Switching signal (relay or transistor version depending on model)

Typical Applications

• Bulk solids level detection in silos, hoppers, bunkers, and crushers
• Liquid level switching in vessels and pipelines
• Conveyor belt backup detection
• High dust and abrasive material handling environments
• Overfill and dry-run protection systems
