Vega VEGABAR52 Pressure Sensor BR52CXG5CKZAMXS

The VEGABAR 52 is a versatile pressure transmitter designed for measuring liquids, gases, and vapours in a wide range of industrial applications.

Key Features

• Suitable for measuring liquids, gases, and vapours
• High reliability thanks to the ceramic measuring cell's excellent resistance to overload and vacuum conditions
• Accurate measurement of very low pressures with outstanding precision
• Low maintenance requirements due to the wear-free ceramic sensor technology
• Long-term measurement stability for dependable performance

CERTEC® Ceramic Measuring Cell

At the heart of the VEGABAR 52 is VEGA's CERTEC® ceramic measuring cell, which provides:

• Exceptional long-term stability
• High overload resistance
• Excellent measurement accuracy
• Integrated temperature sensor

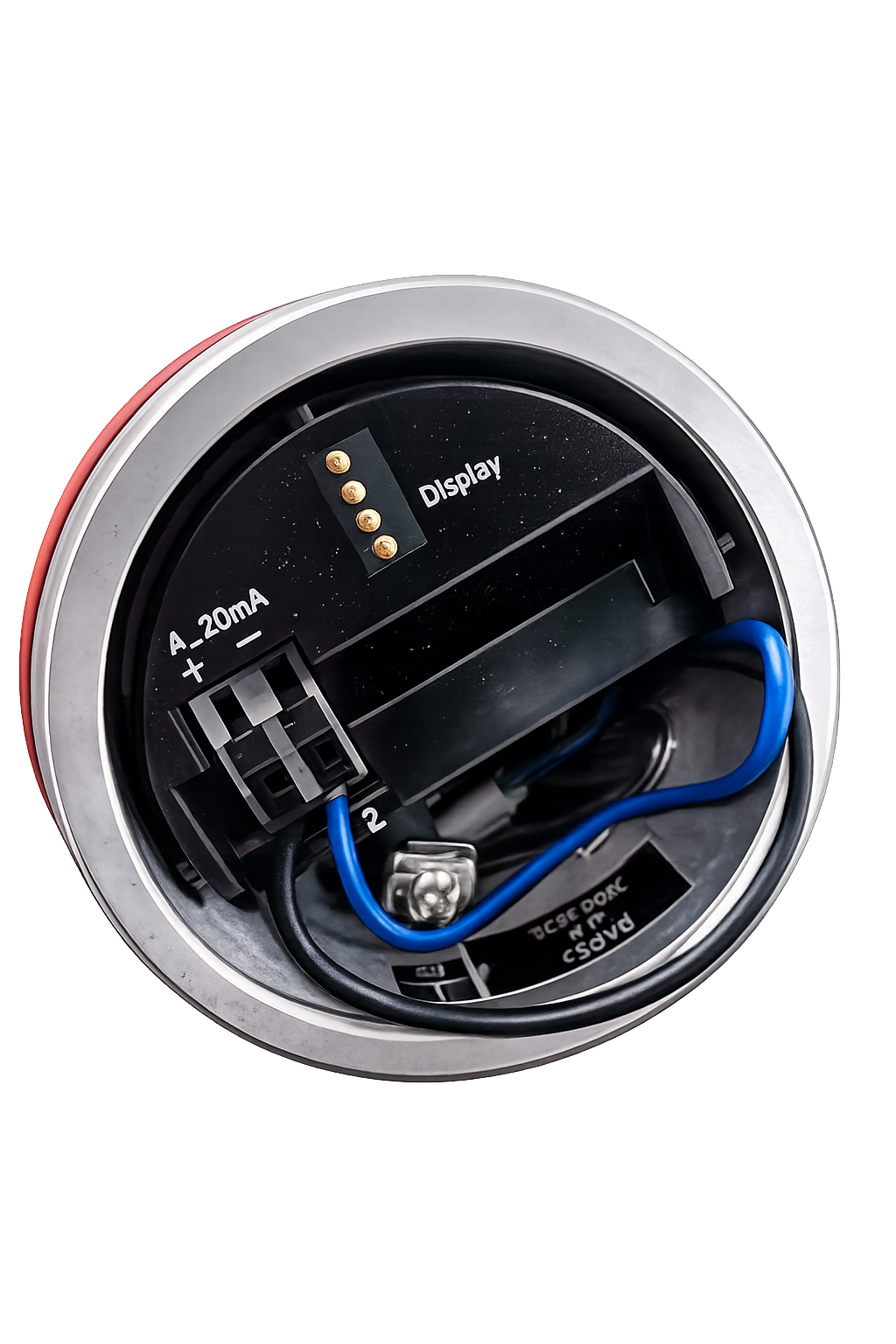

The built-in temperature sensor allows process temperature to be displayed on the local indicator or transmitted through the output signal for monitoring and control purposes.

The VEGABAR 52 is ideal for demanding industrial environments where reliable, accurate pressure measurement and minimal maintenance are essential.

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

MSTAK Email: mdalrymple@stakam.co.uk

⸻

Full Specifications:

• Manufacturer: VEGA

• Model: BR52CXG5CKZAMXS

• Enclosure Rating: IP66/67

• Hazardous Area Certification: PTB 03 ATEX 2035 X,3suppl. Ex II 1G, 1/2G, 2G Ex ia IIC T6

• ATEX Certified

• IECEx Approved

⸻

Condition:

✔ New without original packaging

✔ Stored correctly in dry environment

⸻

Suitable For:

• Oil & Gas installations

• Chemical processing

• Industrial automation

• Hazardous area applications

• Process control systems

Quantity

We have 5 total units available.
