VEGA VEGABAR 51 BR51CX01G12ZKMXJS Pressure Transmitter 0-2.5 Bar ABS 4-20mA

VEGA VEGABAR 51 Pressure Transmitter in used condition, removed from an industrial process installation. The unit is untested and is being sold as removed. It features a large flanged process connection and integrated display module.

Ideal as a replacement unit or for refurbishment and spare parts.

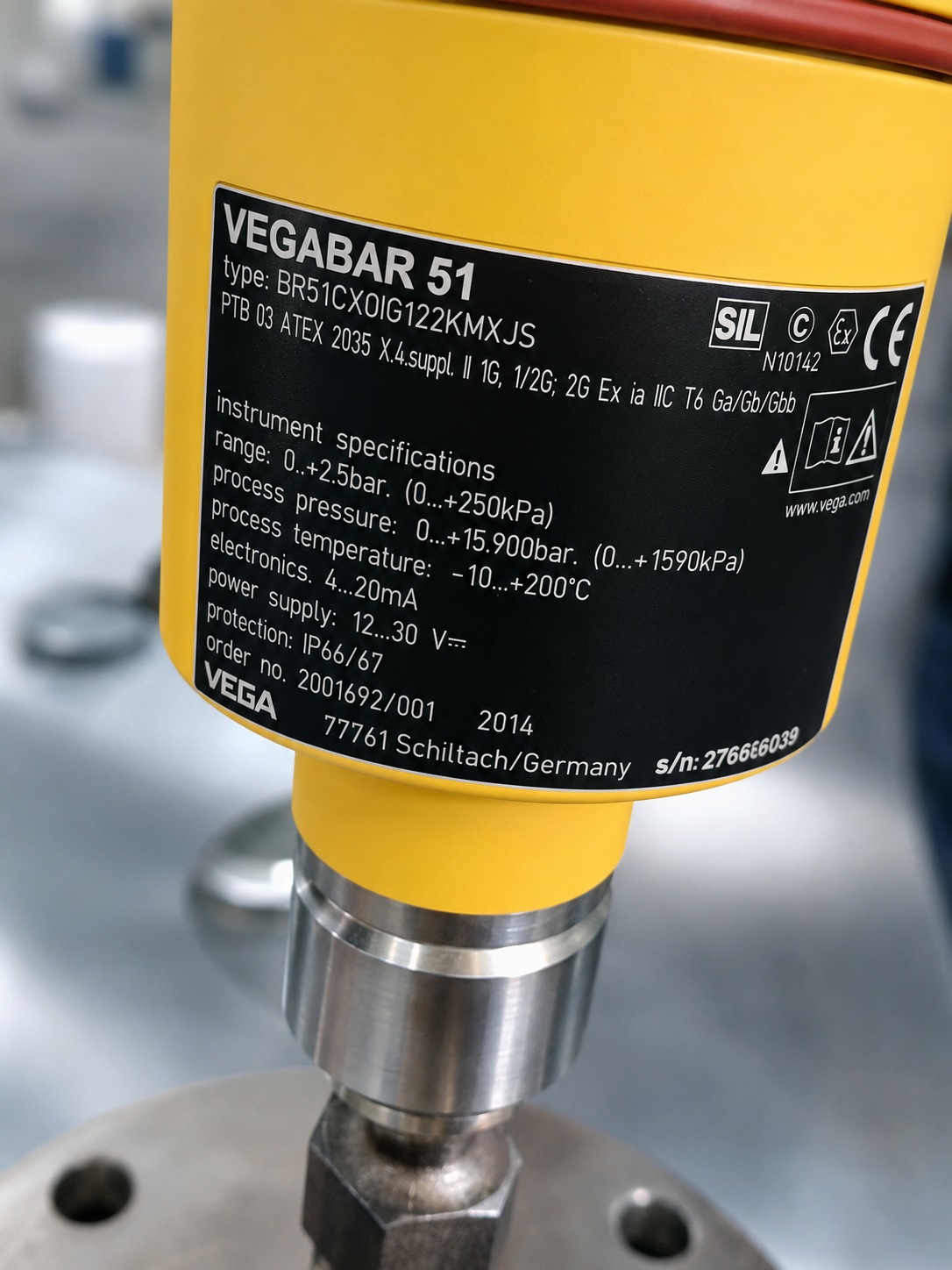

Specifications

• Manufacturer: VEGA
• Model: VEGABAR 51
• Type: BR51CX01G12ZKMXJS
• Measurement Range: 0 to 2.5 bar Absolute (0 to 250 kPa ABS)
• Maximum Process Pressure: 15.9 bar
• Output Signal: 4–20 mA
• Supply Voltage: 12–30 VDC
• Protection Rating: IP66/IP67
• Hazardous Area Approval: ATEX Ex ia IIC T6
• Process Temperature: -10°C to +200°C
• Year of Manufacture: 2014
• Process Connection: Flanged connection (as pictured)

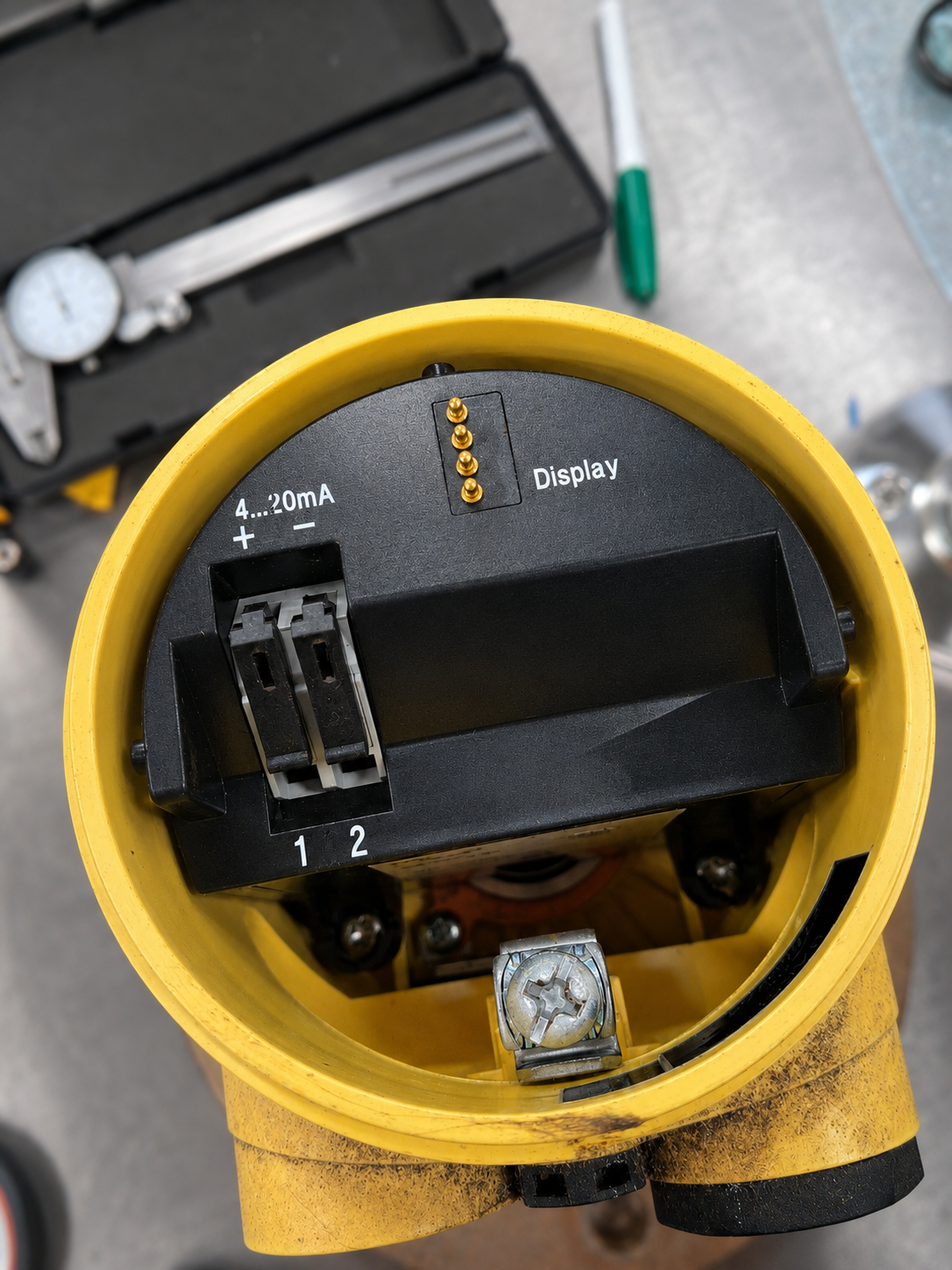

• Display Module: Installed

Condition

• Used industrial surplus.
• Untested; no functional testing has been carried out.
• Cosmetic signs of use including marks, dirt and light surface corrosion on the flange.
• Internal electronics appear complete.
