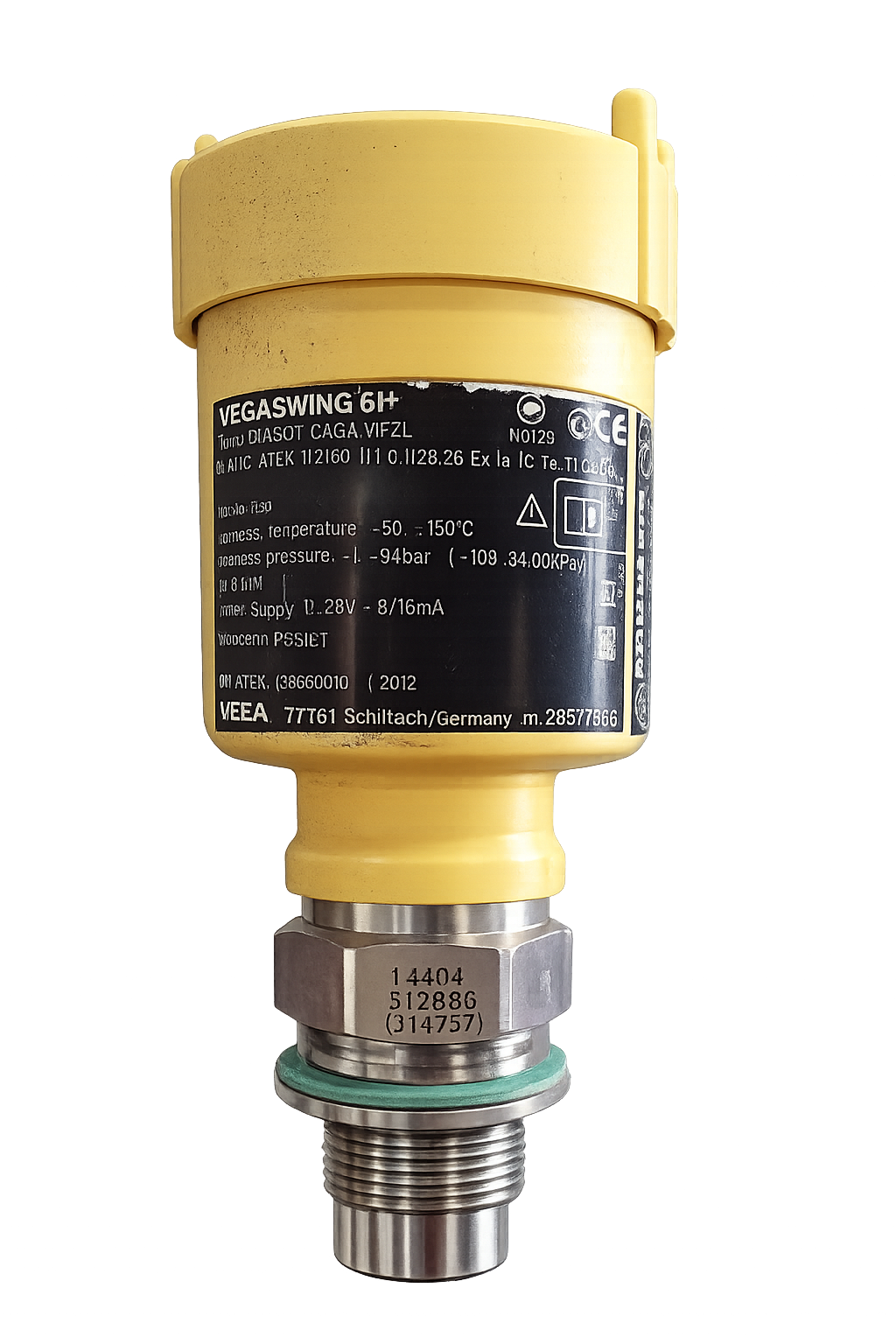

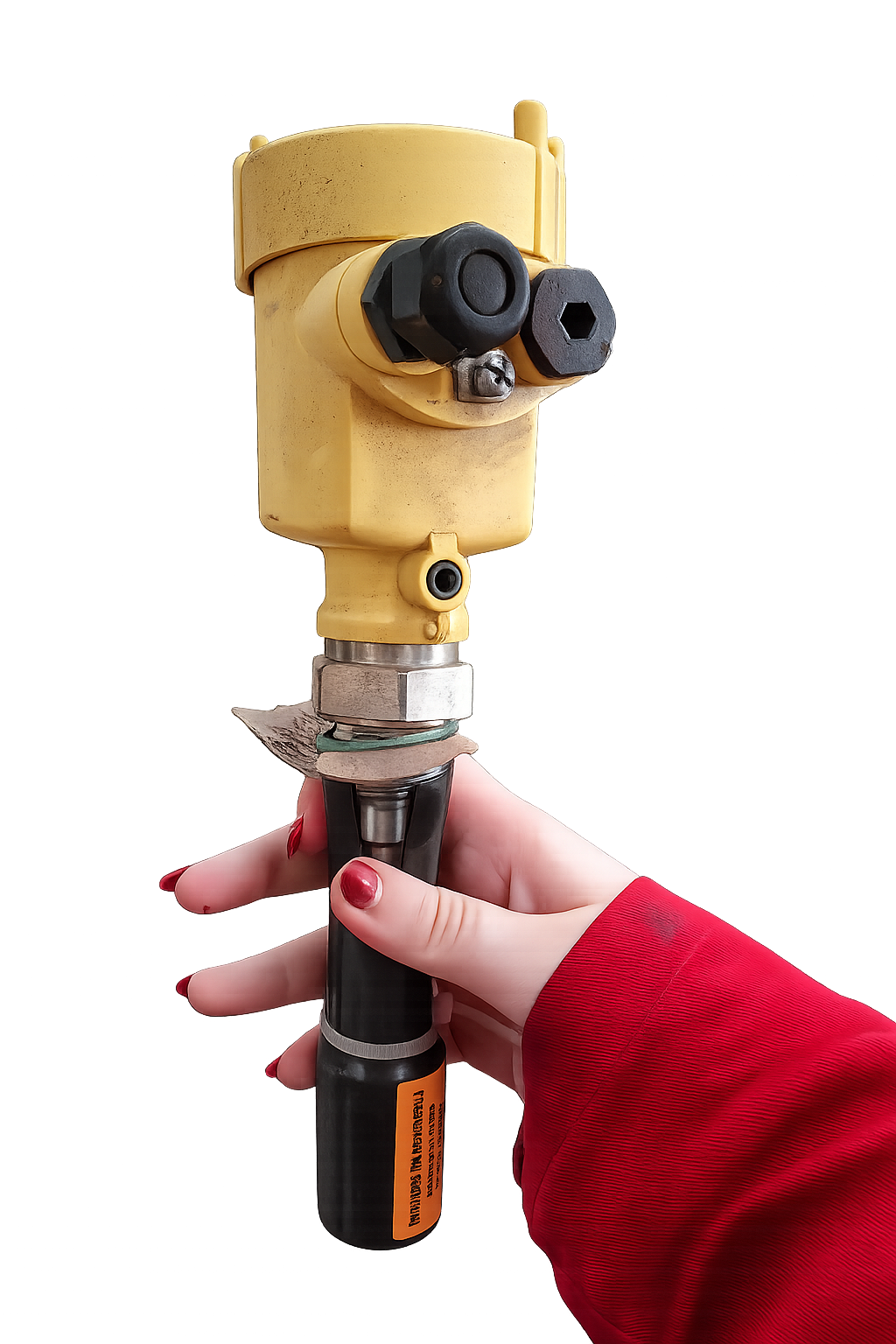

VEGA SWING 61 Vibrating Level Switch SWING61.CAGAVXPZL

The VEGA VEGASWING 61 is a compact vibrating fork level switch designed for reliable point level detection in liquids. Using proven tuning fork technology, it provides accurate switching independent of mounting position, conductivity, dielectric constant, viscosity, pressure, temperature, or foam formation. It is commonly used as a high-level alarm, low-level alarm, overfill protection, dry-run protection, and pump protection device in tanks, vessels, and pipelines.

Key Features

• Vibrating fork level switch for liquids
• Reliable point level detection with millimetre accuracy
• Suitable for virtually all liquid media
• Can be used as full, empty, overfill, or dry-run protection switch
• Unaffected by foam, bubbles, conductivity, or viscosity changes
• No calibration required during commissioning
• Maintenance-free operation
• Compact stainless steel sensing element
• Self-monitoring electronics
• Suitable for hazardous area installations (model dependent)

Specifications

• Manufacturer: VEGA
• Model: VEGASWING 61
• Measurement Principle: Vibrating Fork / Tuning Fork
• Application: Point Level Detection in Liquids
• Medium Density: >0.5 to 2.5 g/cm³
• Process Pressure: -1 to +64 bar
• Process Temperature: Up to 150°C (higher on some versions)
• Ambient Temperature: -40°C to +70°C
• Protection Rating: IP66 / IP67 / IP68 (version dependent)
• Output Options: Relay, Transistor, NAMUR, Contactless Electronic Switch
• Process Connections: Threaded and hygienic fittings available
• Housing Materials: Plastic, Aluminium, Stainless Steel (depending on configuration)
• Hazardous Area Approvals: ATEX, IECEx, FM, CSA, SIL, Marine Approvals (model dependent)

Function

The VEGASWING 61 operates using a vibrating tuning fork. When the fork is immersed in liquid, its vibration frequency changes, causing the electronics to switch the output state. This simple and highly reliable measuring principle allows accurate level detection without calibration and remains unaffected by product properties or process conditions.

Typical Applications

• Storage tanks
• Process vessels
• Chemical plants
• Water and wastewater treatment
• Food and beverage processing
• Pharmaceutical applications
• Pump protection systems
• Overfill protection systems
• Pipeline monitoring
