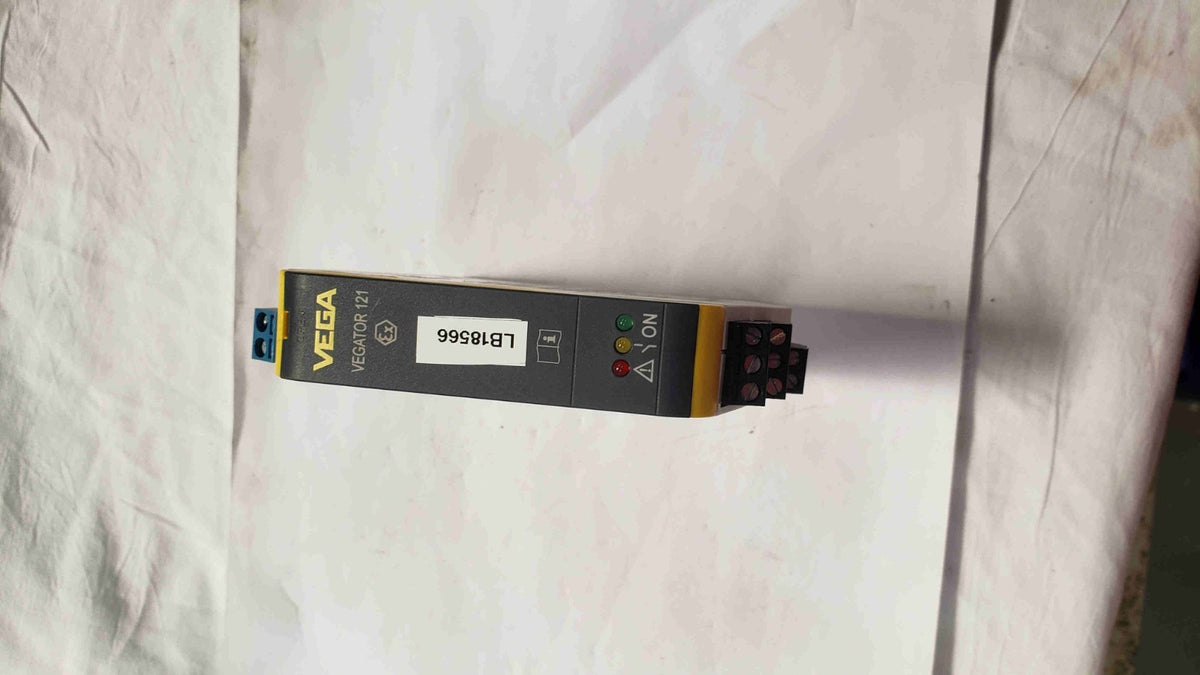

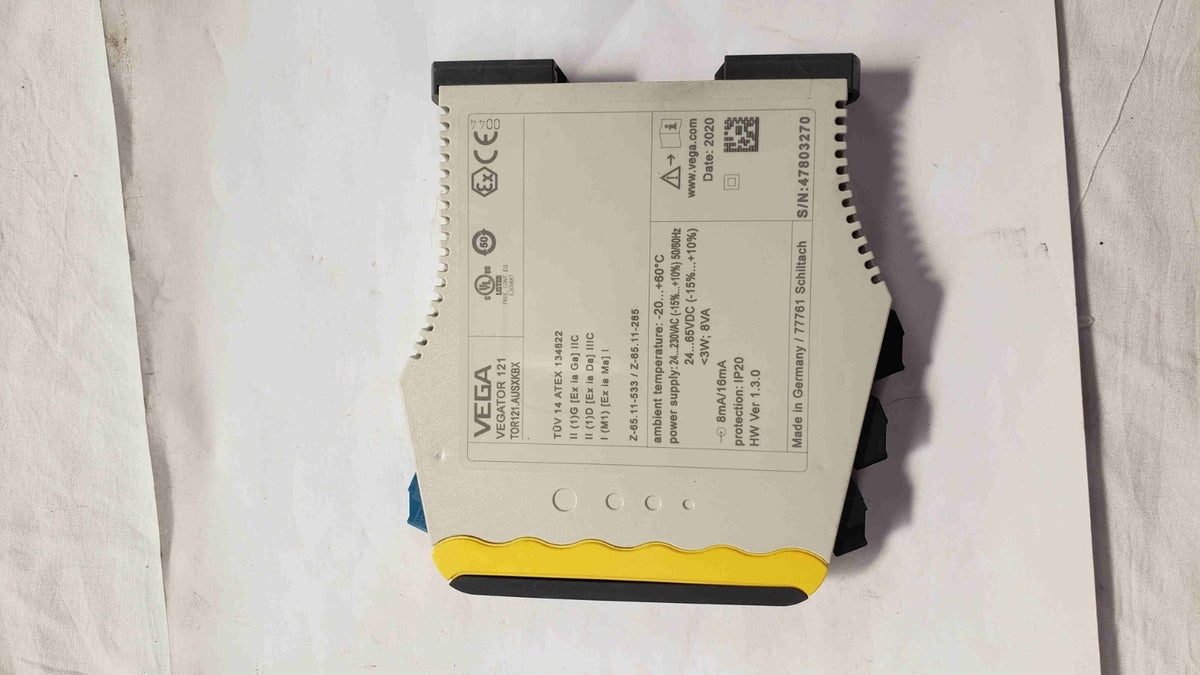

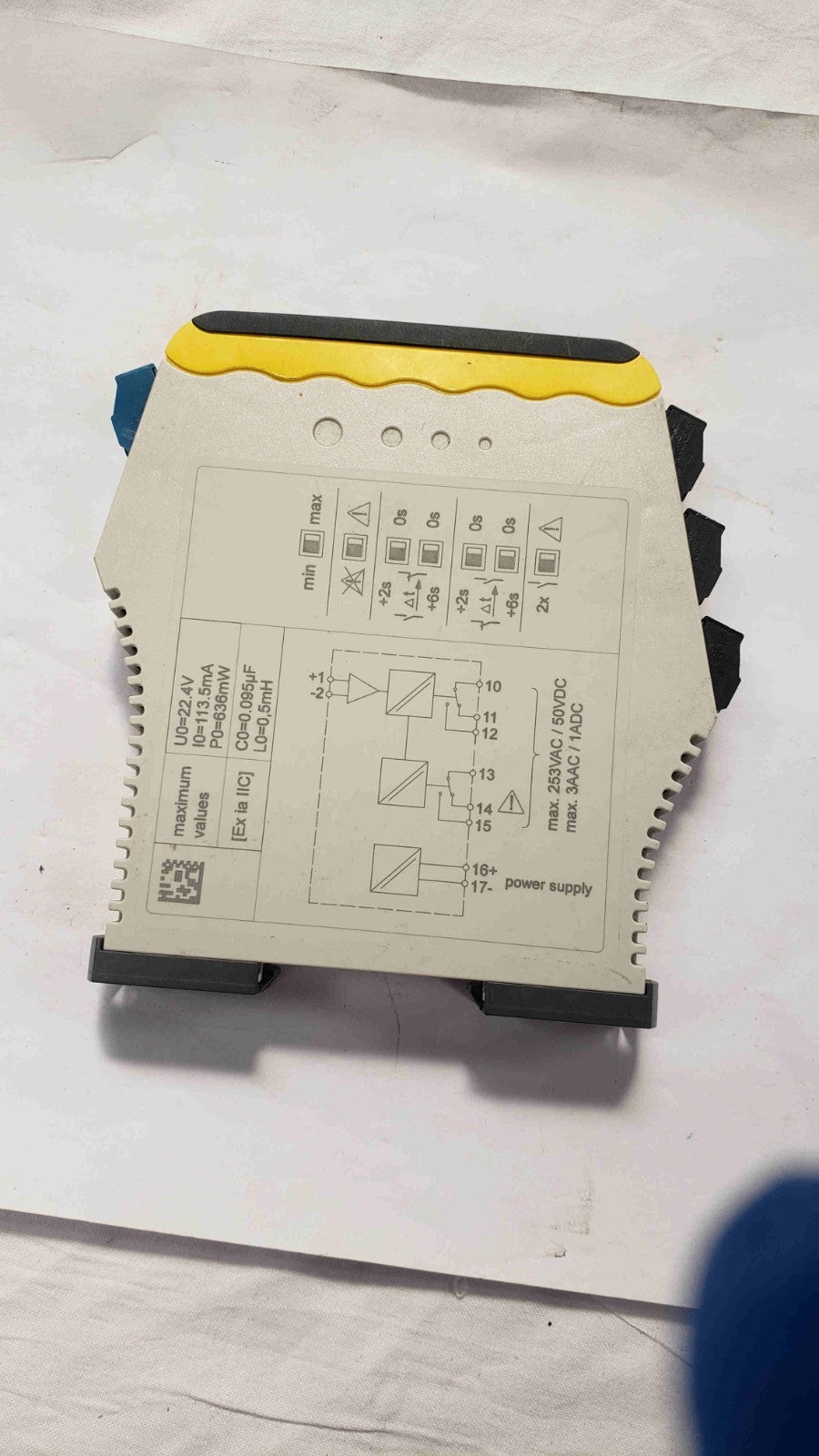

VEGA Signal Channeling Instrument VEGATOR 121 TOR121.AUSXKBX

VEGA VEGATOR 121 Signal Conditioning Instrument – Level Detection Controller

The VEGA VEGATOR 121 is a single-channel signal conditioning and control instrument designed for reliable level detection applications. It is commonly used with VEGA vibrating level switches including VEGASWING, VEGAVIB, and VEGAWAVE sensors featuring a 2-wire 8/16 mA output.

This DIN rail-mounted controller processes sensor signals and provides relay outputs for control and alarm functions, making it ideal for overflow protection, dry-run protection, and general level monitoring in industrial process applications.

Key Features

• Single-channel level detection controller

• Compatible with 8/16 mA VEGA level switches

• DIN rail mounting design

• Relay output for control and alarm functions

• Optional fail-safe relay capability

• Continuous monitoring for sensor faults, line breaks, and short circuits

• Built-in test function for quick system verification

• LED status indication

• SIL2 capable design for safety-related applications

Technical Specifications

• Model: VEGATOR 121

• Manufacturer: VEGA

• Input: 1 × Two-wire 8/16 mA sensor input

• Output: 1 × SPDT operating relay

• Optional: 1 × SPDT fail-safe relay

• Supply Voltage:

  • 24–230V AC, 50/60Hz

  • 24–65V DC

• Protection Rating: IP20

• Operating Temperature: -20°C to +60°C

• Mounting: DIN rail

• Width: Approx. 20 mm

Typical Applications

• Tank level monitoring

• Overflow protection systems

• Dry-run protection for pumps

• Water and wastewater treatment

• Chemical processing plants

• Industrial storage vessels

Condition
Used in good condition
