Thermon Terminator ZL-XP Heat Trace Power Connection / End Termination Kit

Genuine Thermon Terminator ZL-XP heat tracing connection kit designed for industrial electric heat tracing systems. This robust IP66-rated junction box assembly provides a secure and reliable power connection or end termination point for Thermon self-regulating and power-limiting heating cables.

The Terminator ZL-XP features an integrated LED indication lamp for easy visual confirmation that the heating circuit is energized, making maintenance and system monitoring straightforward. Suitable for hazardous and non-hazardous environments, it is widely used in process heating, freeze protection, and temperature maintenance applications across industrial facilities.

Key Features

• Genuine Thermon Terminator ZL-XP

• Pipe-mounted XP configuration

• Integrated LED power indication lamp

• Can be used as a power connection or end termination kit

• Durable non-metallic construction

• IP66 weatherproof enclosure

• Suitable for hazardous area installations (subject to system certification)

• Quick-access junction box with secure locking mechanism

• Corrosion-resistant terminal block connections

• Designed for rapid installation and maintenance

Specifications

• Manufacturer: Thermon

• Model: Terminator ZL-XP

• Enclosure Rating: IP66

• Operating Ambient Temperature: -60°C to +55°C

• Maximum Pipe Exposure Temperature: 250°C

• Maximum Voltage Rating: Up to 600/750 Vac (application dependent)

• Terminal Configuration: Four line/load terminals and two earth terminals

• Maximum Conductor Size: 6 mm²

• Mounting Type: Pipe Mount (XP)

• Visual Status Indication: Yellow LED Lamp

• Compatible with Thermon BSX, RSX, KSX, HTSX, USX, VSX-HT, HPT and FP heating cables

Applications

• Electric heat tracing systems

• Freeze protection

• Process temperature maintenance

• Industrial pipework and vessels

• Hazardous and non-hazardous locations

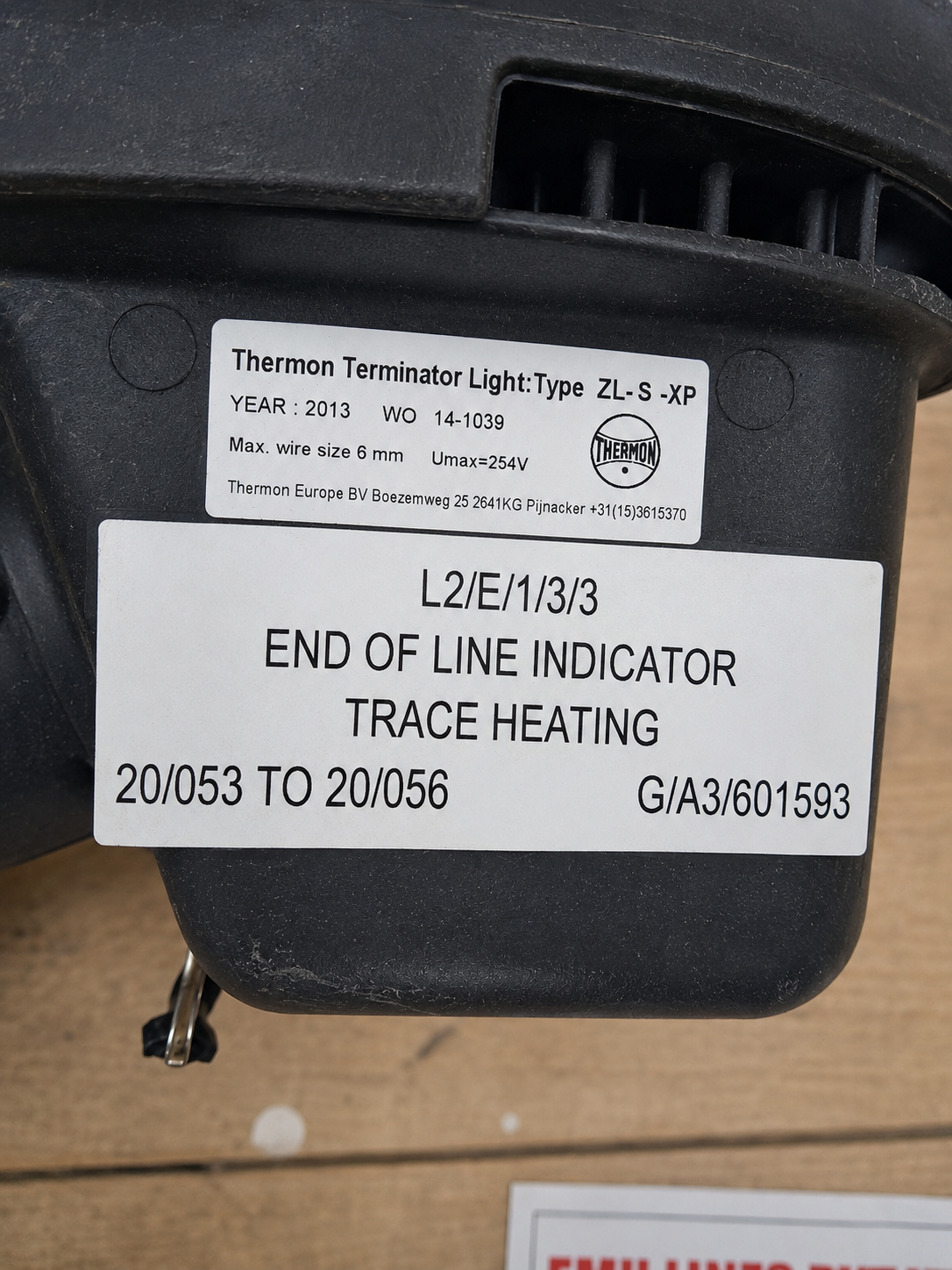

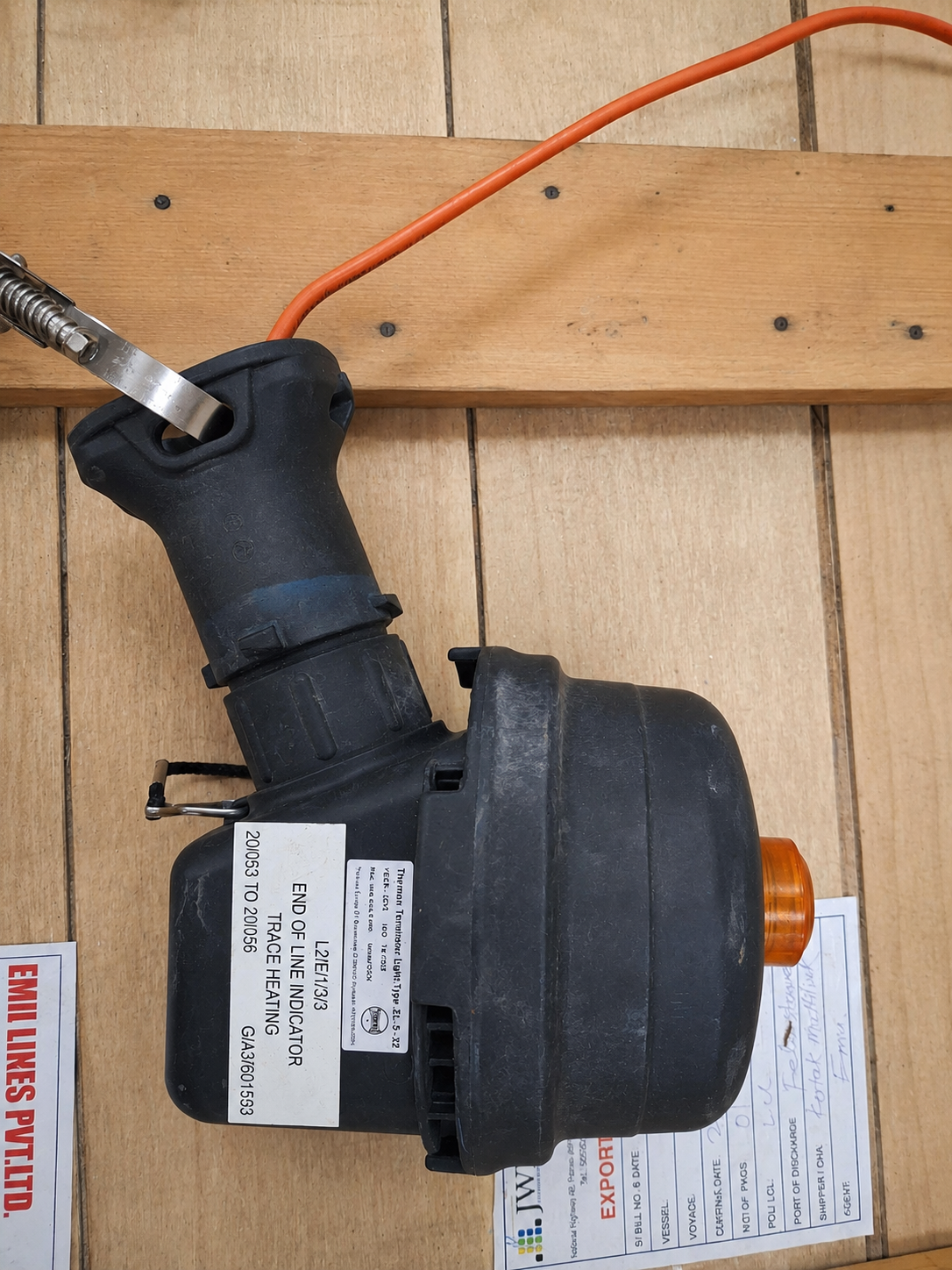

Please review all photographs carefully as they form part of the item description. Contact us if you require additional information or compatibility confirmation before purchasing.
