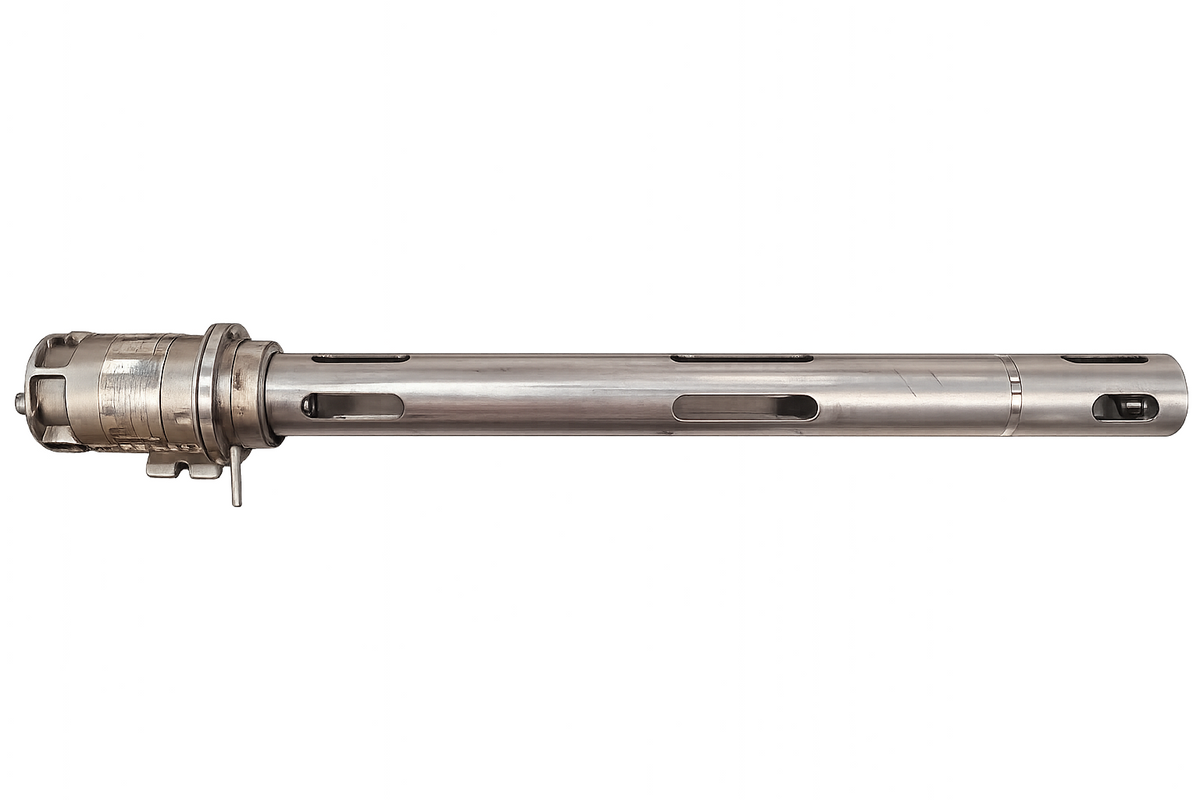

Simtronics GD10-PE0-17DG-0XH-00 Extended Infrared Gas Detector

The Simtronics GD10-PE0 is a highly sensitive fixed infrared gas detector designed for the rapid detection of low concentrations of combustible hydrocarbon gases. Unlike standard point gas detectors, the GD10-PE0 features an extended optical path that makes it up to five times more sensitive than conventional detectors, making it ideal for turbine enclosures, compressor stations, ventilation ducts, offshore platforms, and critical gas leak detection applications.

Using advanced dual-wavelength, dual-path infrared technology, the GD10-PE0 provides highly reliable gas detection with virtually no false alarms, while requiring no routine field recalibration throughout its service life.

Key Features

• Extended-path infrared hydrocarbon gas detector
• Designed for early detection of low-level methane and hydrocarbon leaks
• Up to 5× more sensitive than standard point gas detectors
• Dual-wavelength, dual-path IR measurement technology
• No routine field recalibration required
• Continuous automatic self-testing and diagnostics
• Fast response time for critical safety applications
• 4-20mA output with HART communication
• Suitable for hazardous area installations
• SIL 2 / SIL 3 capable depending on configuration
• Long-life solid-state infrared source technology
• Ideal for gas turbine and compressor enclosure monitoring

Specifications

• Manufacturer: Simtronics
• Model: GD10-PE0
• Detection Method: Infrared absorption, dual wavelength, dual path
• Gas Detection: Methane and combustible hydrocarbons
• Detection Range: 0–20% LEL (0–1% Vol.) methane
• Output Signal: 4–20mA with HART protocol

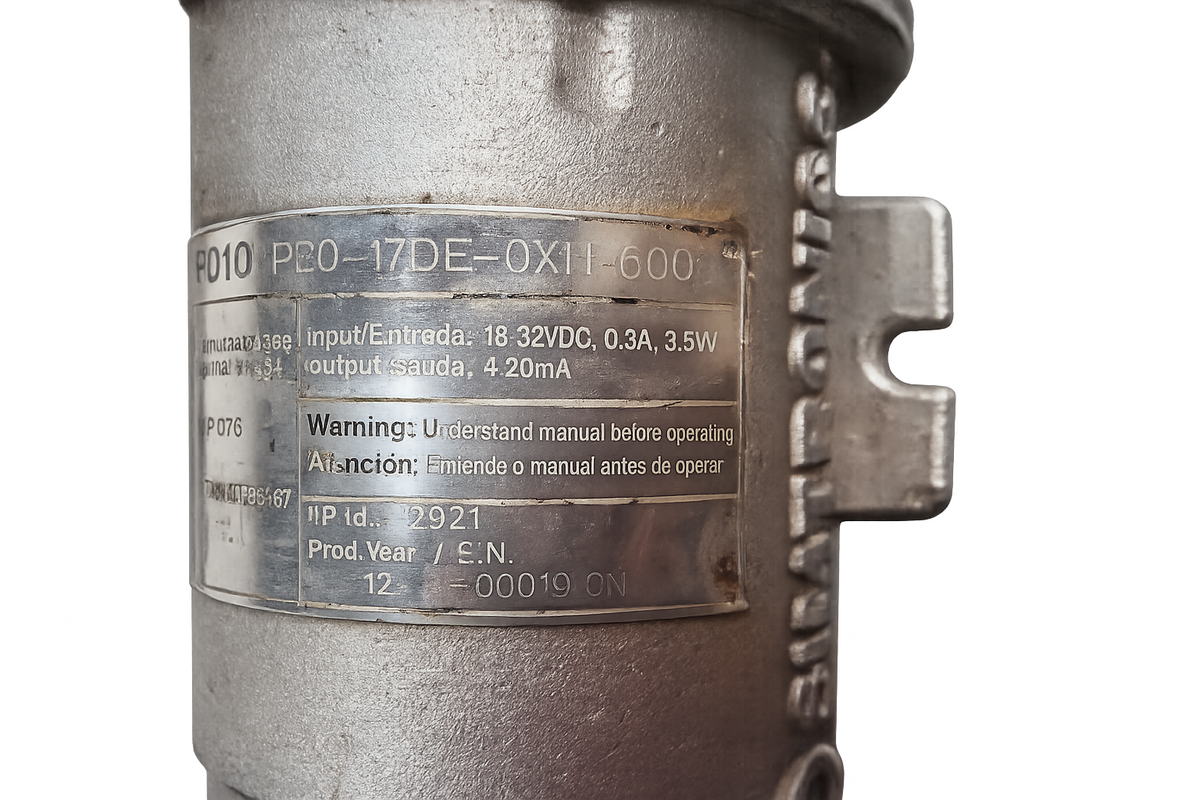

• Power Supply: 18–32 VDC (24 VDC nominal)
• Power Consumption: Approx. 3.5W
• Response Time: Approximately 1 second at low alarm levels
• Self-Test: Continuous automatic diagnostics
• Calibration: Factory calibrated, no field recalibration required
• Operating Principle: Solid-state IR source with extended optical path

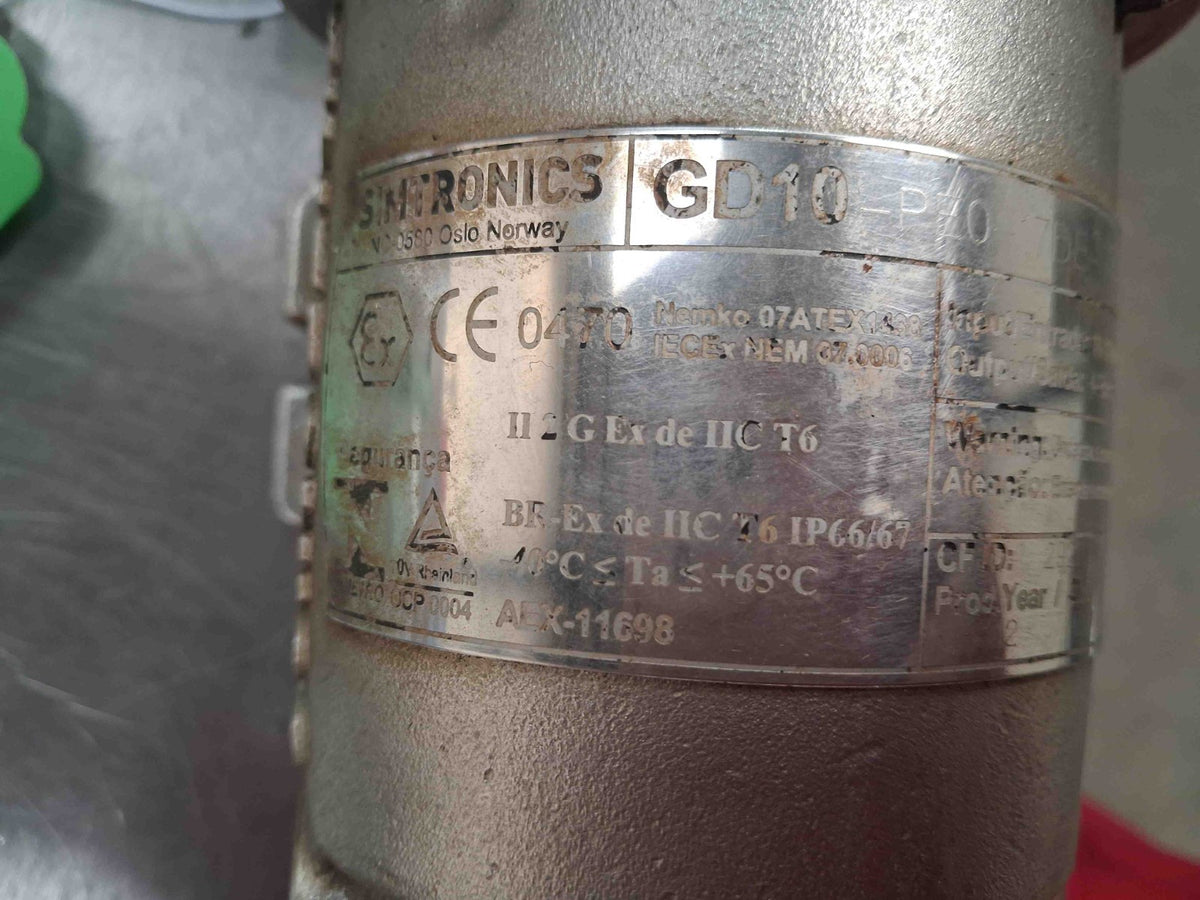

• Hazardous Area Approvals: ATEX, IECEx, CSA, UL (model dependent)
• Warranty When New: 5 years instrument / 15 years IR source

Typical Applications

• Gas turbine enclosures
• Compressor stations
• Ventilation ducts and air intakes
• Offshore oil & gas platforms
• Petrochemical plants
• LNG facilities
• Refinery process areas
• Critical hydrocarbon leak detection systems
