Rosemount Analytical 5081-A-FI-73 Foundation Fieldbus Transmitter Ex ia IIC T4

Used Rosemount Analytical 5081-A-FI-73 Smart Two-Wire Microprocessor Transmitter with Foundation Fieldbus output and FISCO intrinsically safe certification.

Specifications:

• Manufacturer: Rosemount Analytical
• Model: 5081-A-FI-73
• Type: Smart Two-Wire Microprocessor Transmitter
• Output: Foundation Fieldbus
• FISCO compatible
• Supply: 9–17.5 VDC @ 22 mA
• Enclosure: Weatherproof/corrosion-resistant

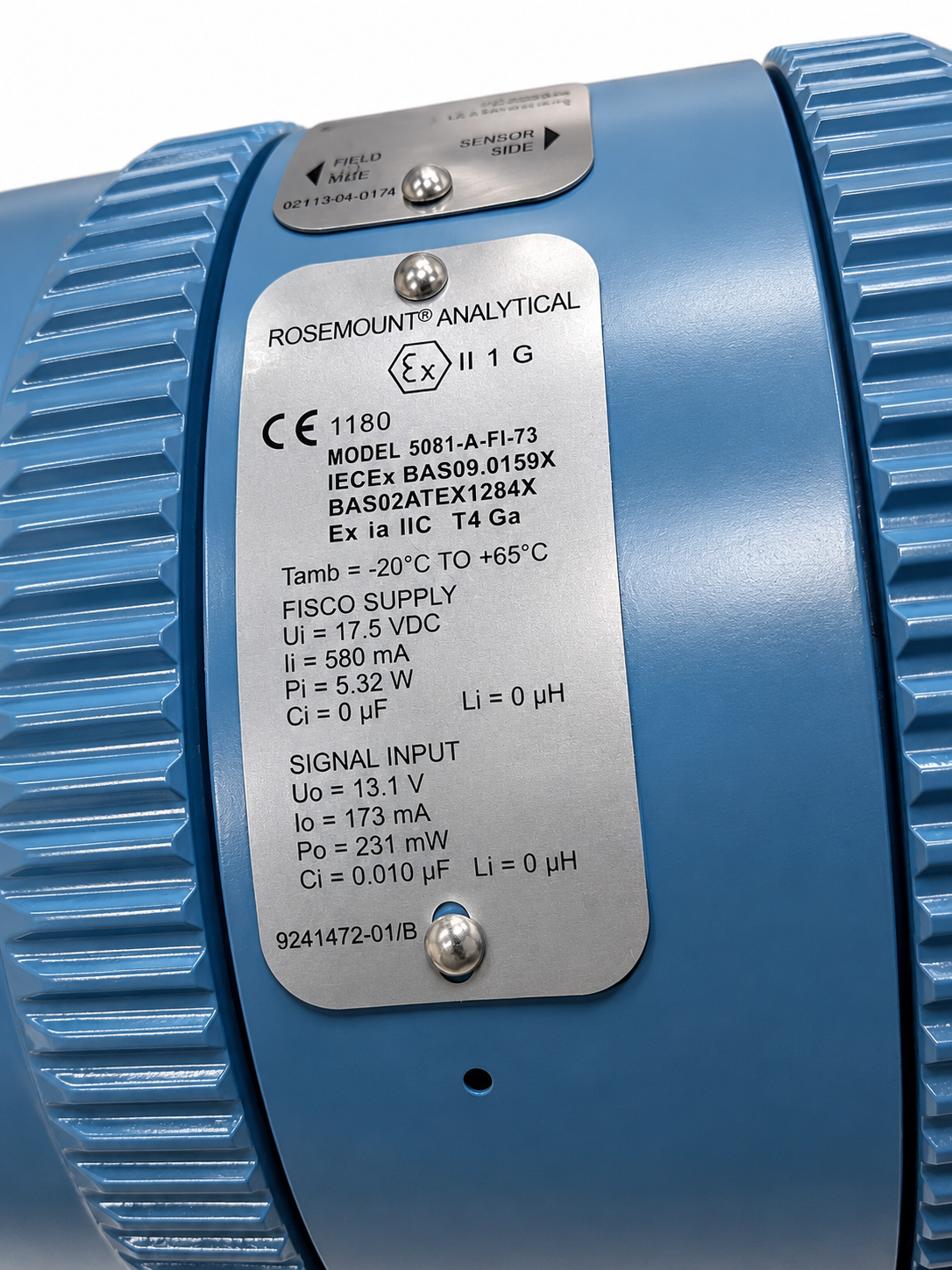

• Certification: Ex ia IIC T4 Ga
• CE marked
• Ambient temperature: -20°C to +65°C
• FISCO supply: Ui 17.5 VDC, Ii 580 mA, Pi 5.32 W
• Signal input: Uo 13.1 V, Io 173 mA, Po 231 mW

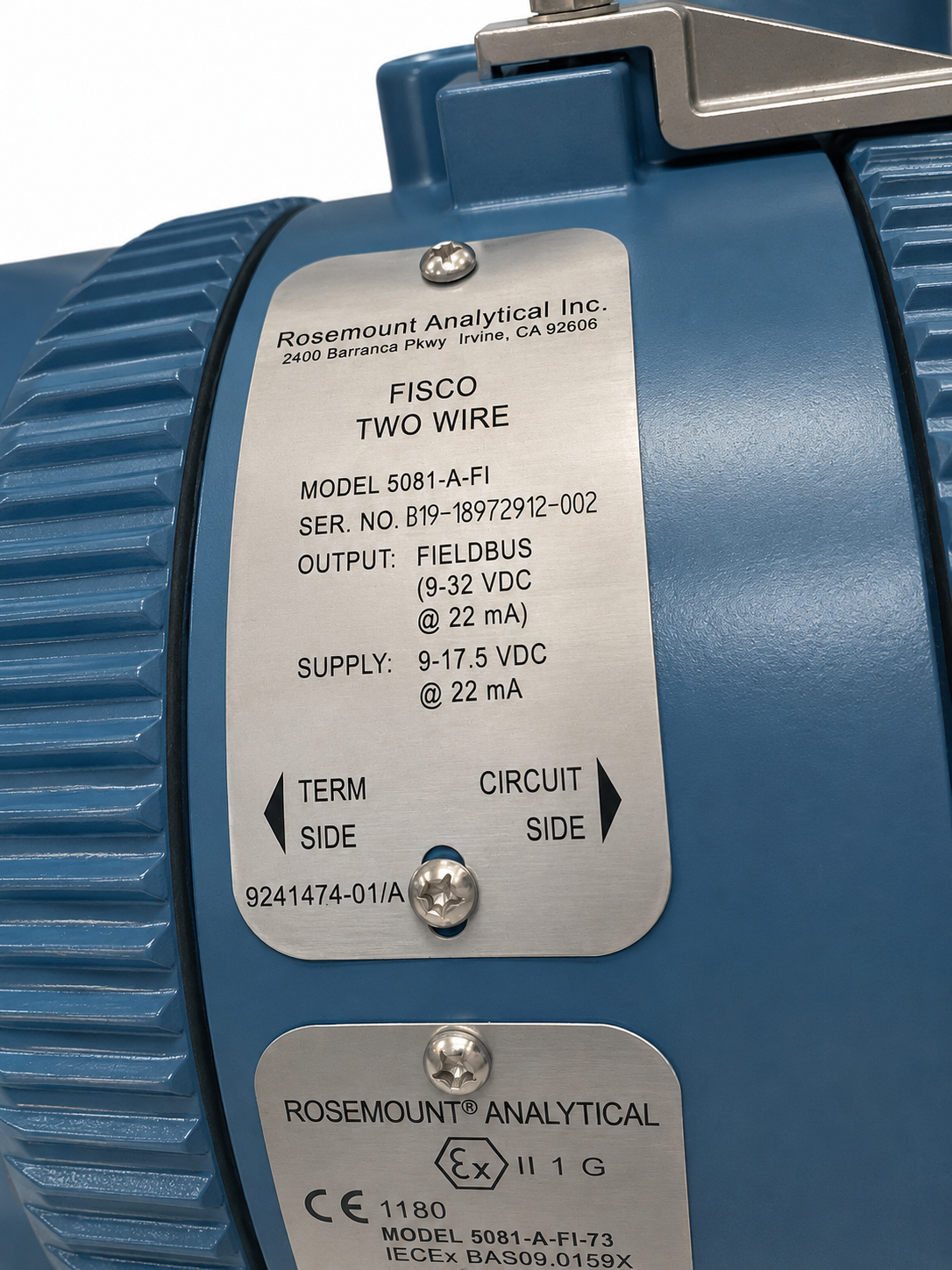

• Manufacturer part/label reference: 9241472-01/B
• Serial No.: B19-18972912-002 (as visible on nameplate)

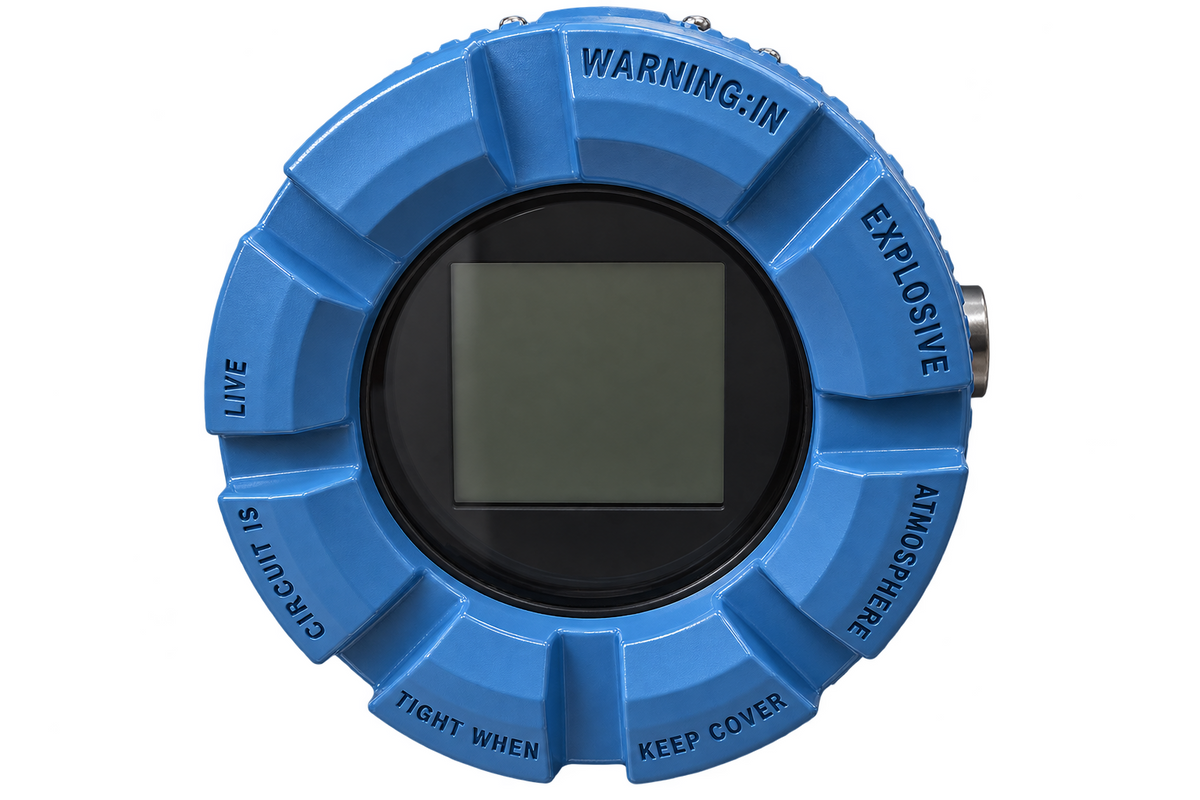

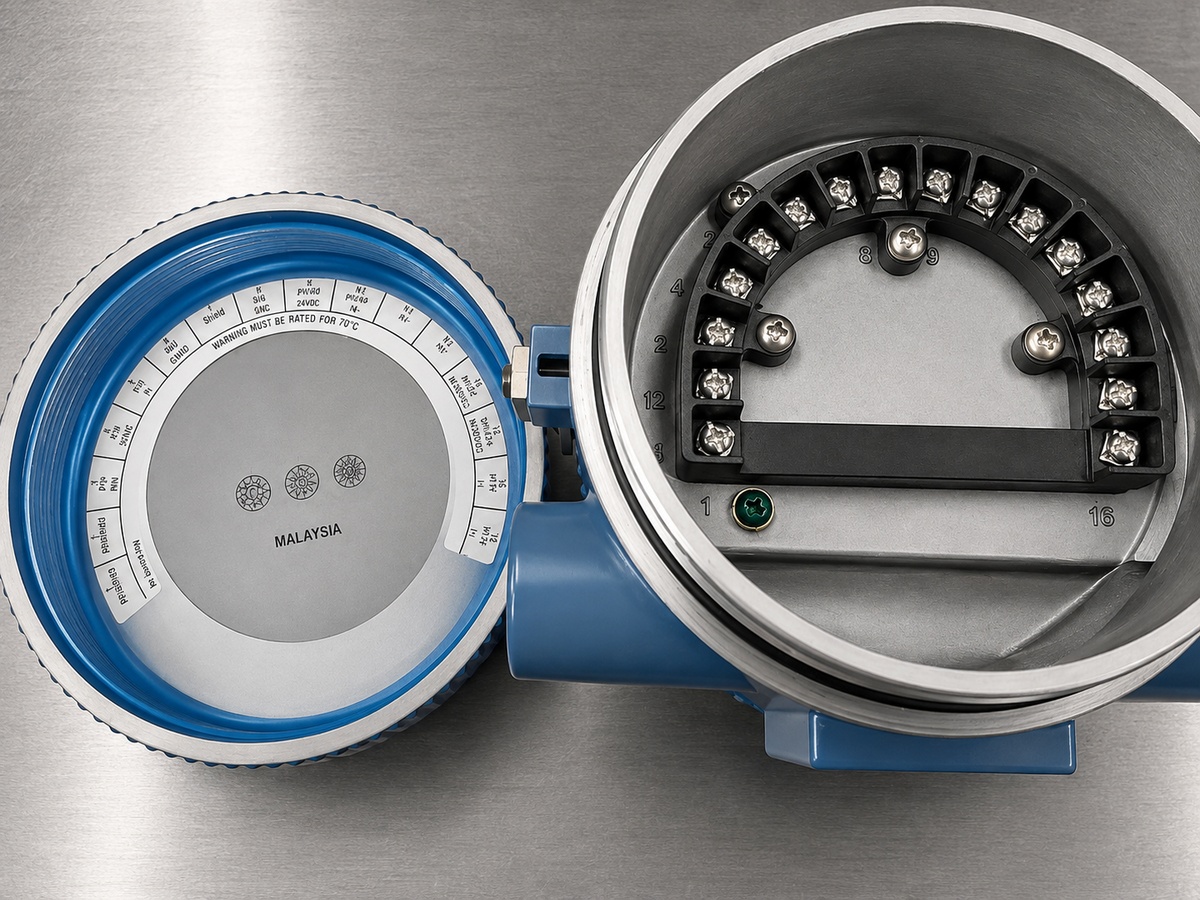

The unit has the characteristic Rosemount Analytical blue enclosure and integral display. The rear terminal compartment and Foundation Fieldbus connections are shown in the photographs.

The 5081-A Foundation Fieldbus platform supports measurement of oxygen, chlorine and ozone, with additional temperature and sensor-current measurement channels.

Condition: New without original packaging
