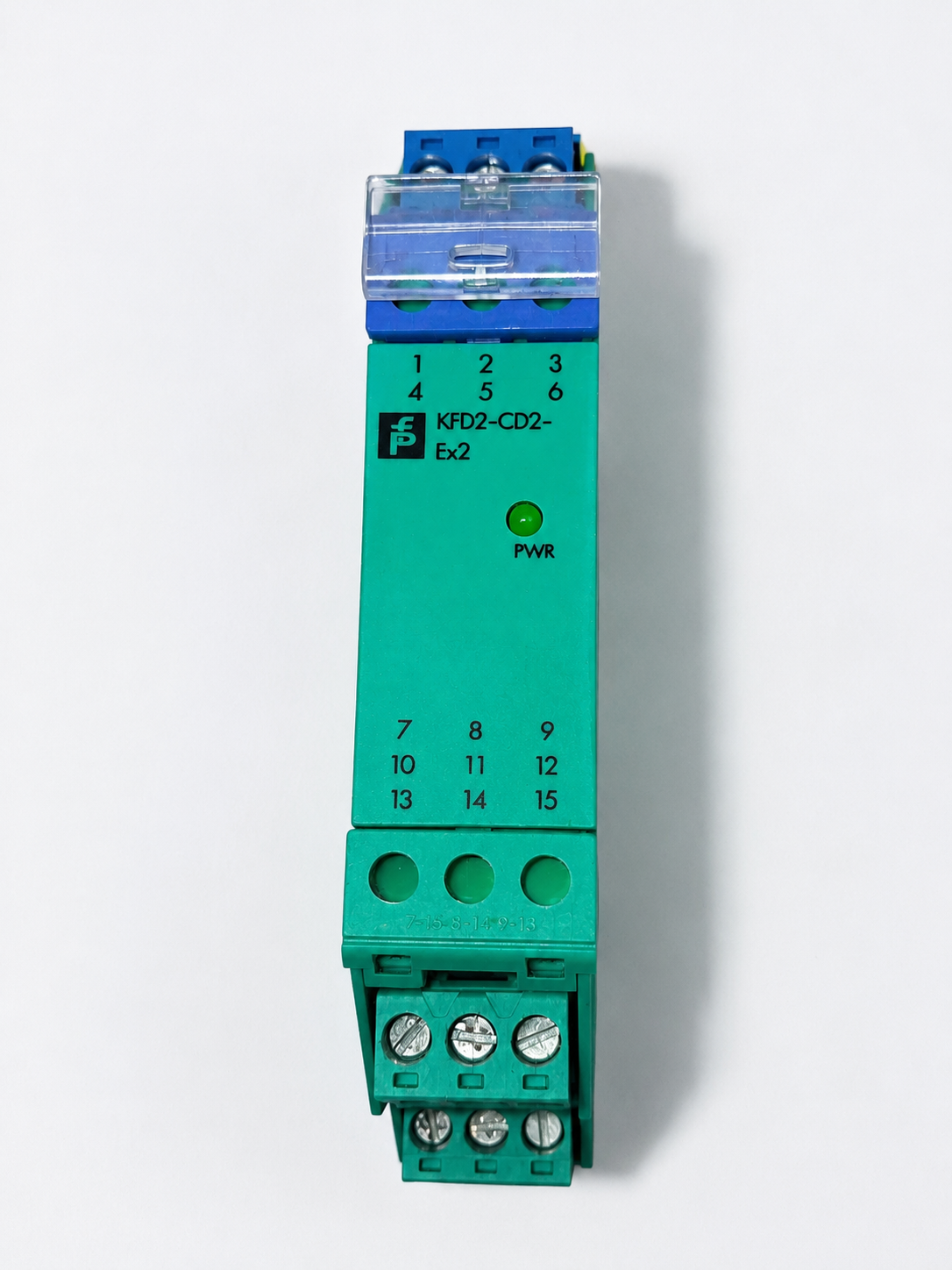

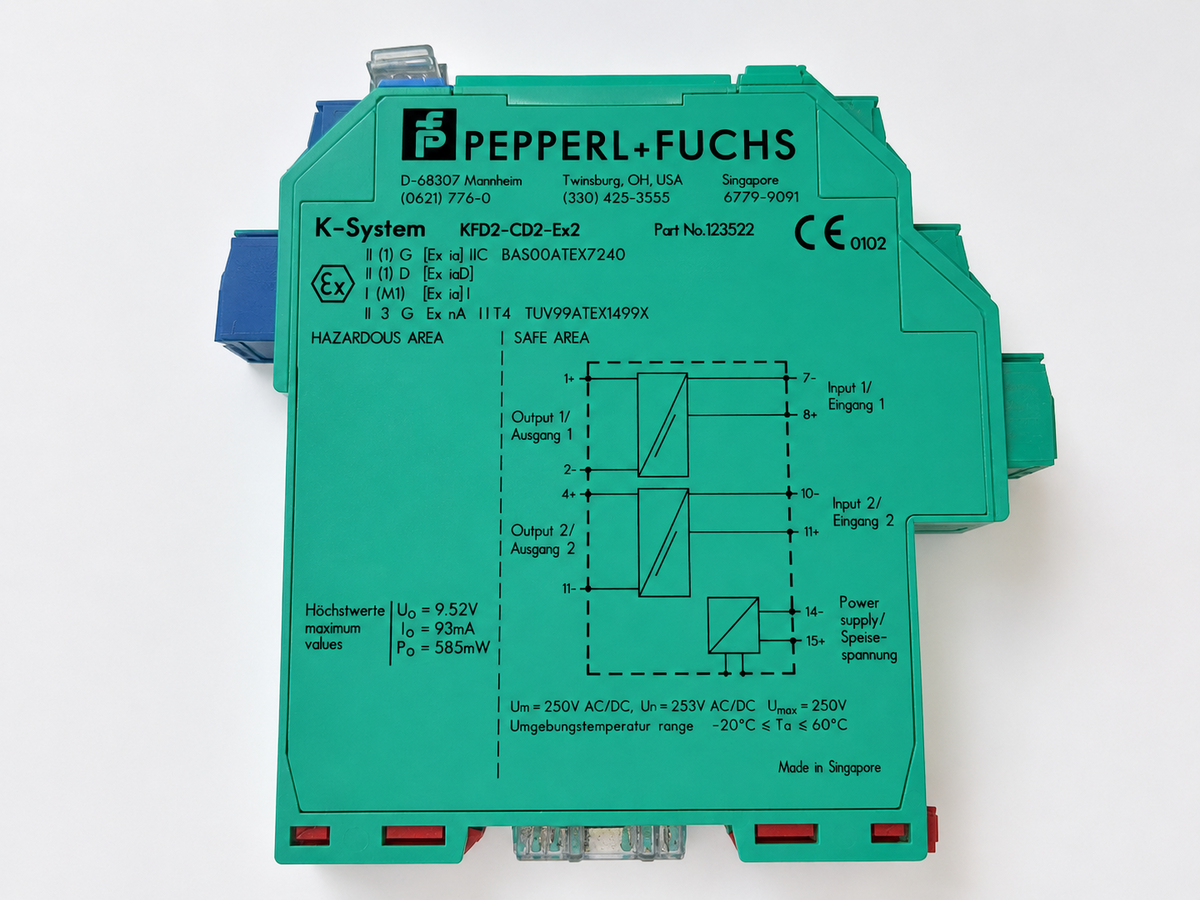

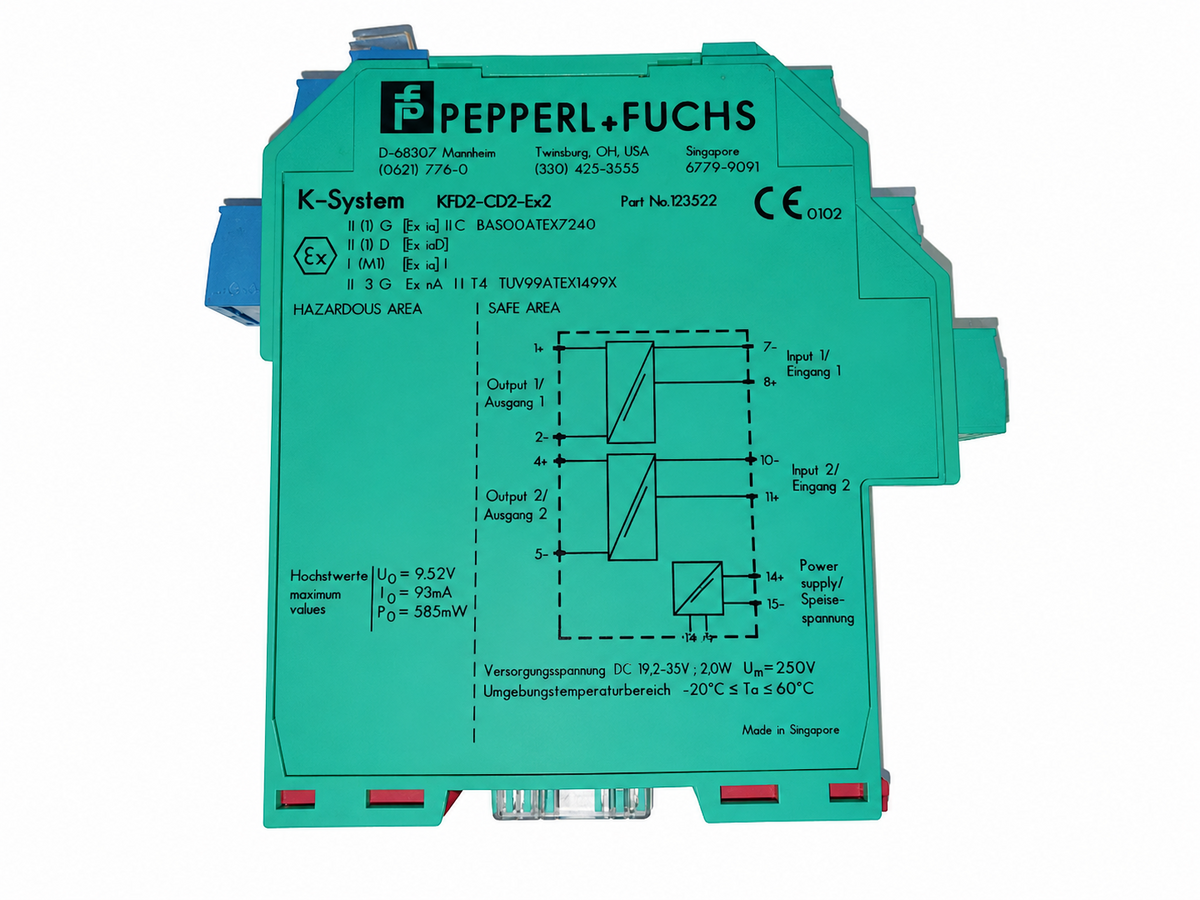

Pepperl+Fuchs KFD2-CD2-Ex2 SMART Current Driver (123522)

Genuine Pepperl+Fuchs KFD2-CD2-Ex2 2-channel current driver and isolated barrier. Designed for intrinsically safe applications, this module transfers 4–20 mA control signals from the safe area to I/P converters, valve positioners, and control valves located in hazardous areas. Suitable for process control, oil & gas, chemical, pharmaceutical, and industrial automation systems.

Specifications

• Manufacturer: Pepperl+Fuchs
• Model: KFD2-CD2-Ex2
• Part Number: 123522
• Type: Current Driver / Isolated Barrier
• 2-Channel Operation
• 24 VDC Supply (Power Rail Compatible)
• Input: 0/4–20 mA
• Output: 0/4–20 mA
• Output Load: Up to 700 Ω
• Accuracy: 0.05%
• Suitable for I/P Converters and Valve Positioners
• SIL 2 Capability (IEC 61508)
• DIN Rail Mounting
• IP20 Protection Rating
• Ex II (1) G [Ex ia] IIC BAS00ATEX7240 II (1) D [Ex iaD] I (M1) [Ex ia] I II 3 G Ex n A II T4 TUV99ATEX1499X

Condition

• Used in great condition
• Removed from industrial environment
