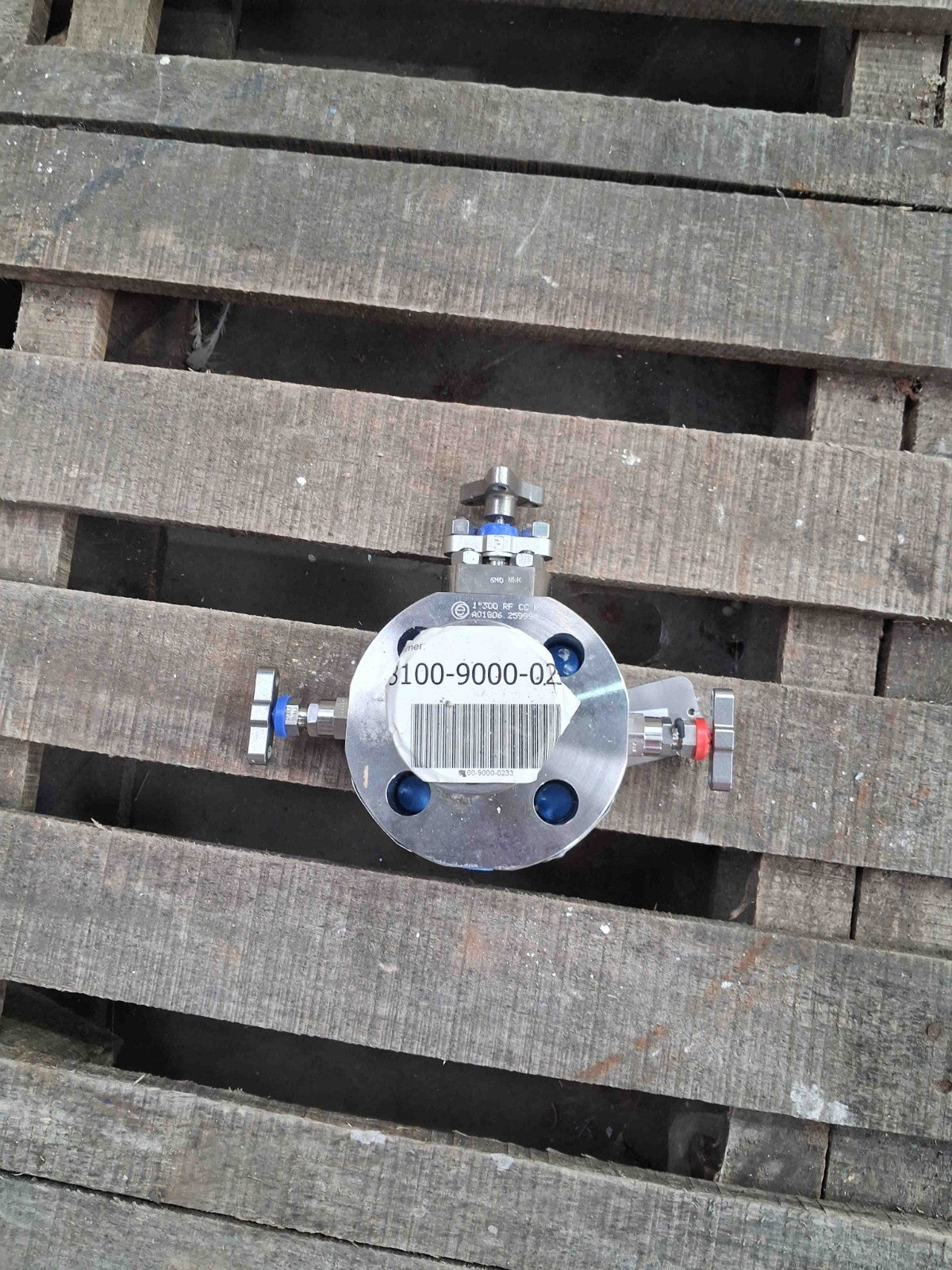

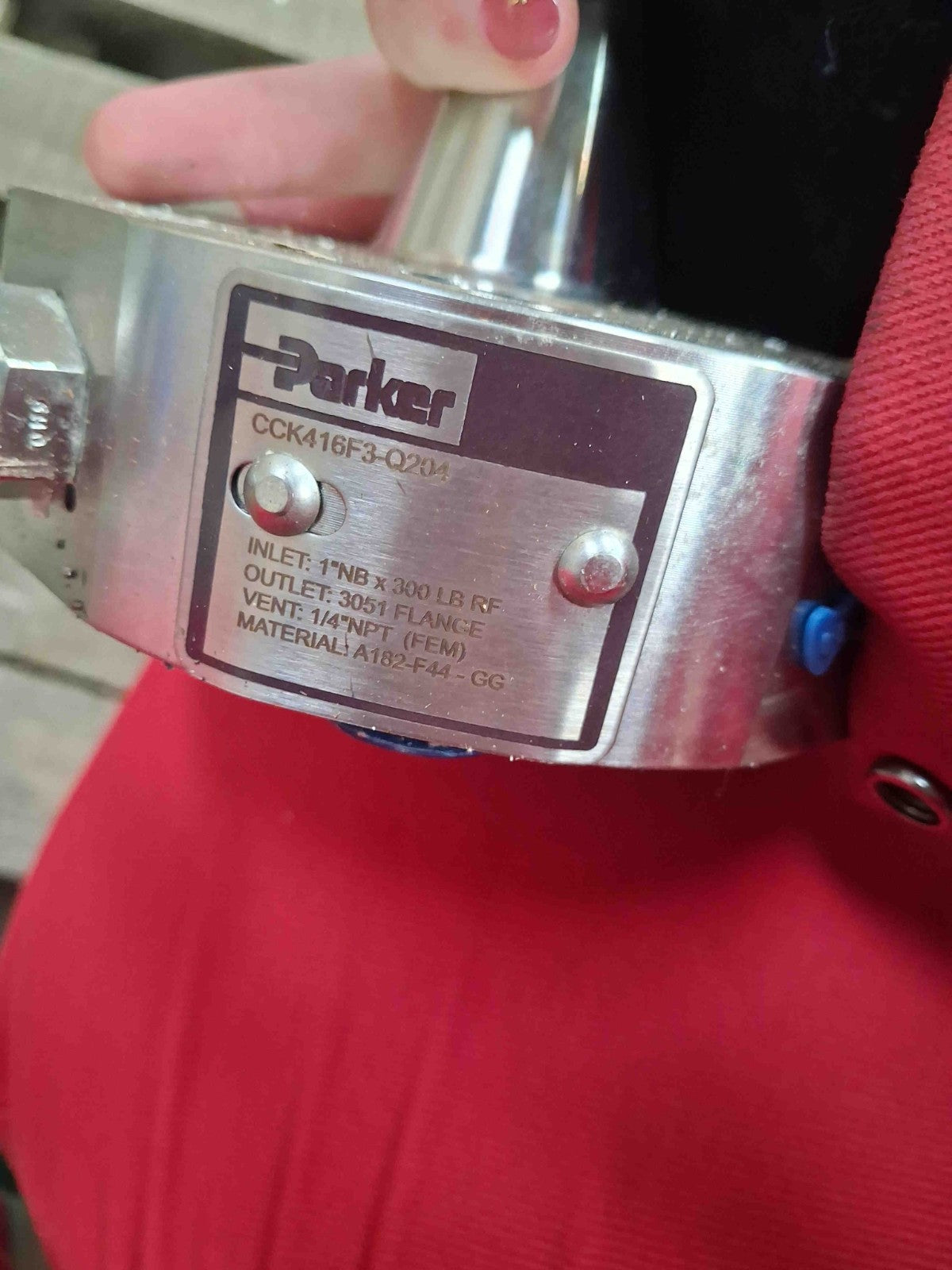

Parker CCK416F3-Q204 Monoflange Manifold

Parker CCK416F3-Q204 Monoflange Manifold designed for direct mounting to Rosemount 3051 pressure transmitters in demanding process and instrumentation applications. Manufactured from ASTM A182 F44 Super Duplex Stainless Steel, this high-integrity monoflange assembly provides excellent corrosion resistance and long service life in harsh industrial environments.

The compact monoflange design combines multiple valve functions into a single body, reducing potential leak paths, installation time, and maintenance requirements compared to conventional manifold assemblies.

Specifications

• Manufacturer: Parker Hannifin
• Model: CCK416F3-Q204
• Type: Monoflange Manifold
• Inlet Connection: 1" NB × 300 LB RF
• Outlet Connection: Rosemount 3051 Flange Mount
• Vent Connection: 1/4" NPT Female
• Material: ASTM A182 F44 Super Duplex Stainless Steel
• Direct-mount design for pressure transmitter applications
• High-pressure industrial service
• Compact, leak-reducing monoflange construction
• Inlet 2"NB x 300 LB RF Outlet 3051 flange Material A182-F44 - GG

Features

• Premium Super Duplex stainless steel construction
• Excellent resistance to corrosion and chloride attack
• Reduced leak paths compared to conventional valve assemblies
• Suitable for hazardous and demanding process environments
• Designed for pressure measurement and instrumentation systems
• Robust industrial-grade construction

Typical Applications

• Oil & Gas Production
• Offshore Platforms
• Petrochemical Plants
• Chemical Processing
• Power Generation
• Process Instrumentation
• Pressure Transmitter Installations

Condition

In excellent condition, never used.

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

MSTAK Email: mdalrymple@stakam.co.uk

Quantity

We have 8 total units available.
