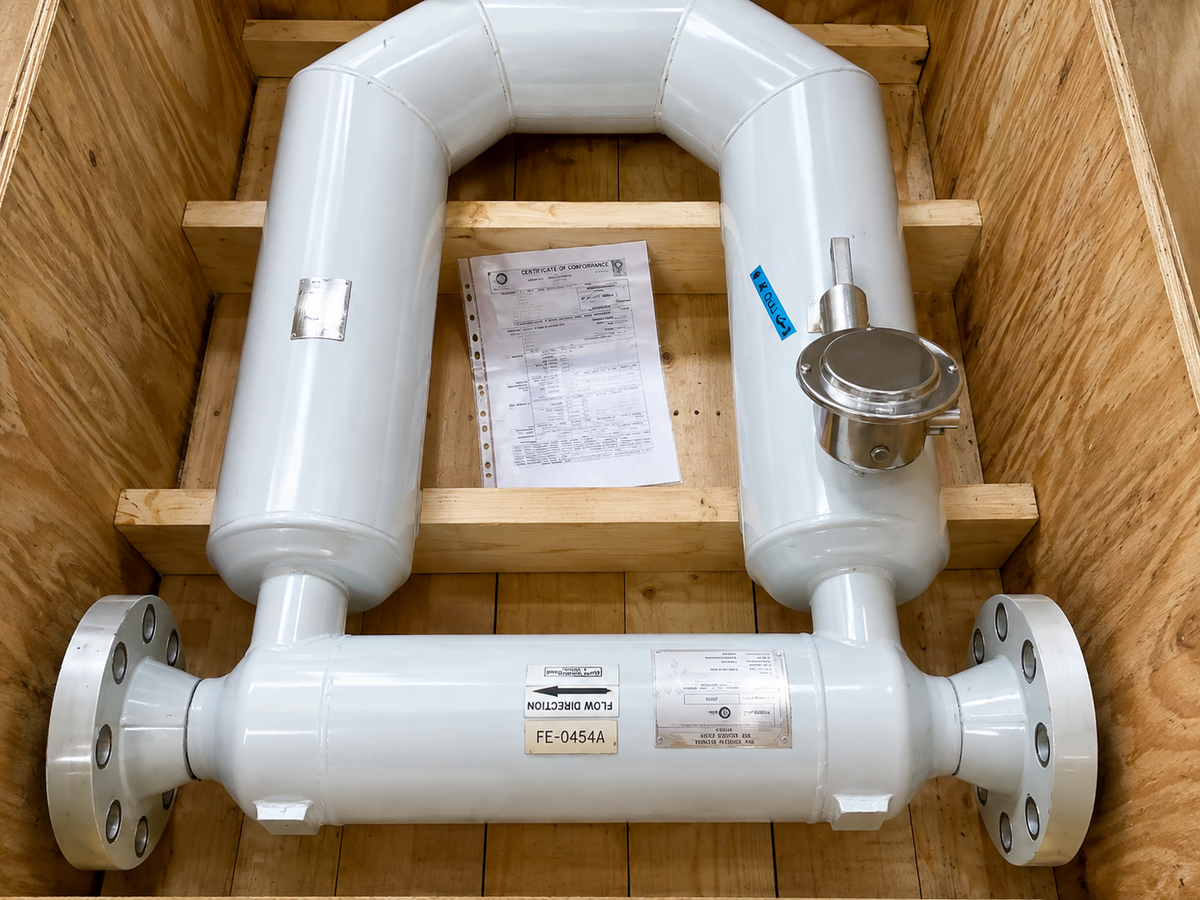

Micro Motion CMF300 Hastelloy 3" Coriolis Mass Flow Meter 148 Bar Class 900

High-specification Micro Motion CMF300 Coriolis Mass Flow Meter, manufactured in Hastelloy, with high-pressure flanged process connections.

The unit is rated for 148 bar at 25°C, making it suitable for demanding industrial process applications.

Specifications

• Manufacturer: Micro Motion
• Model: CMF300
• Type: Coriolis Mass Flow Meter / Sensor
• Nominal Diameter: 3" / DN80
• Wetted/Process Material: Hastelloy
• Maximum Rated Pressure: 148 bar @ 25°C
• Approximate equivalent pressure class: ANSI Class 2500
• Flange Diameter: 9.5"
• Flange PCD: 7.5"
• Flange Thickness: 1.5"
• Flange Holes: 8 × 1"
• Process Connection: Flanged
• Hazardous Area: Ex rated
• Year: 2011
• Flow direction: As marked on meter

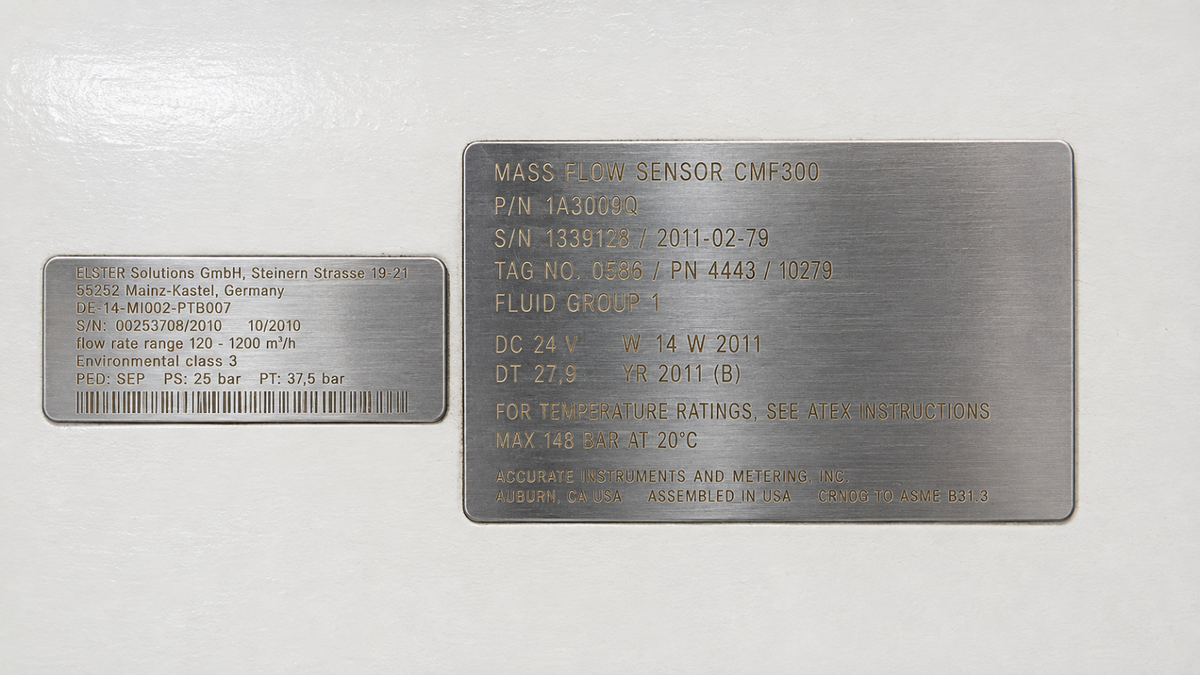

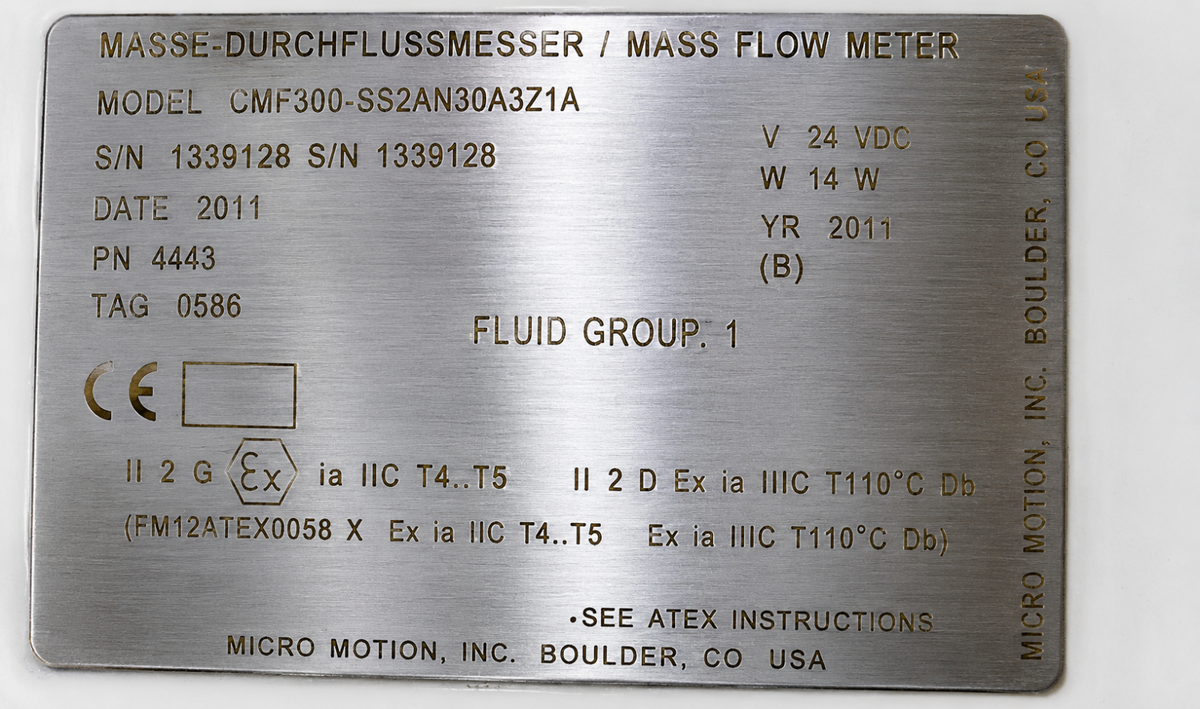

The nameplate also identifies the unit as a Micro Motion CMF300 mass flow meter and shows hazardous-area certification information.

Included

• Micro Motion CMF300 Coriolis Mass Flow Meter
• Flanged process connections
• Original wooden shipping crate
• Calibration certificate shown in photographs

Condition: Used.
