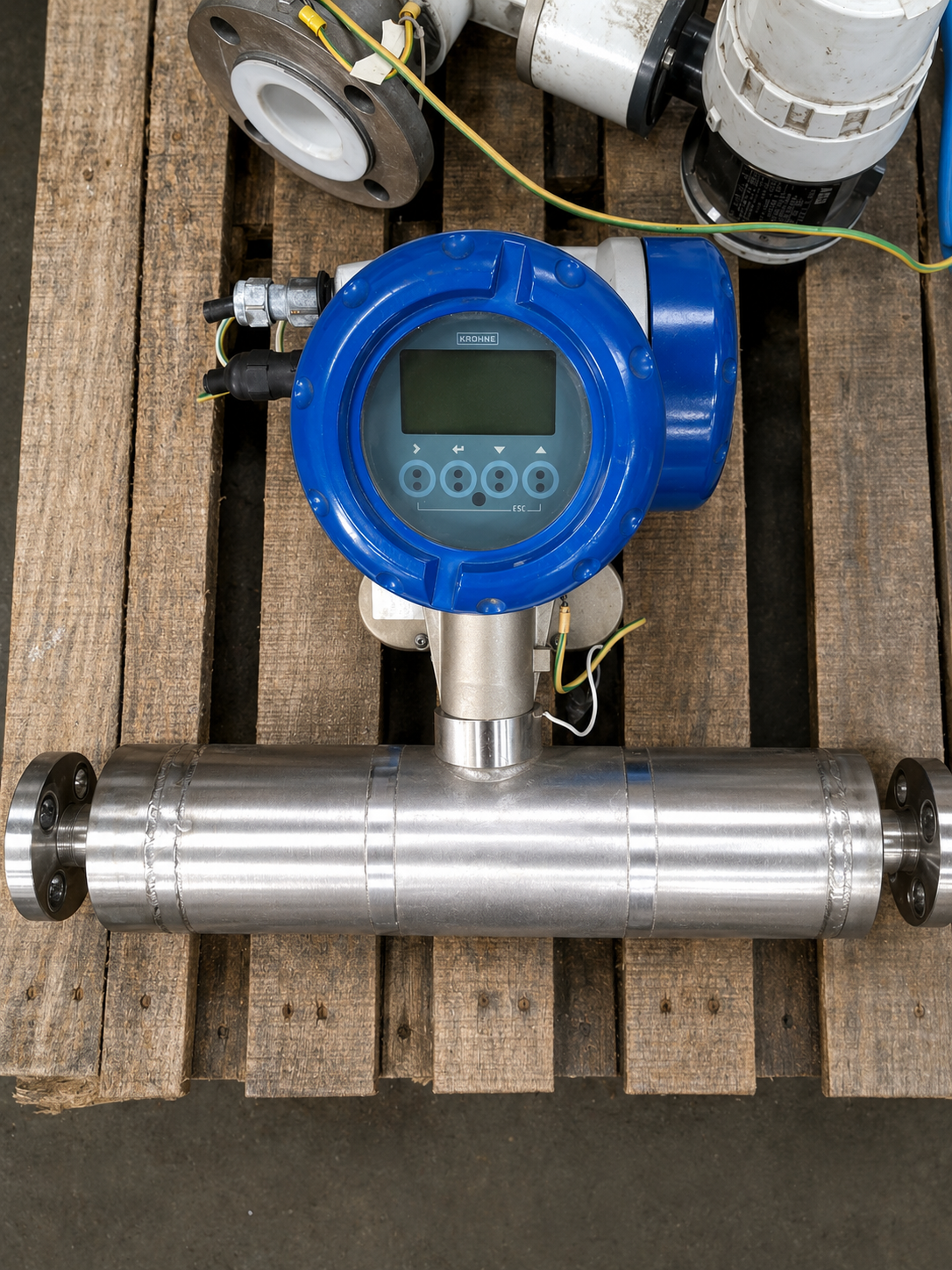

Krohne OPTIMASS 7300C H10 Coriolis Mass Flowmeter

The KROHNE OPTIMASS 7300C H10 is a high-precision Coriolis mass flowmeter designed for direct measurement of mass flow, density, temperature, and volume flow in liquids and gases. Featuring a robust twin straight-tube sensor design, the OPTIMASS 7300C delivers exceptional accuracy and repeatability while remaining unaffected by changes in viscosity, pressure, temperature, conductivity, or fluid density. It is widely used in chemical processing, food & beverage, pharmaceutical production, oil & gas, and industrial batching applications.

Key Features

• Coriolis mass flow measurement technology
• Direct mass flow, density, and temperature measurement
• Twin straight measuring tube design
• High accuracy and repeatability
• Suitable for liquids, gases, and slurries
• No moving parts for minimal maintenance
• Simultaneous mass flow and density measurement
• Excellent performance with difficult process fluids
• Robust industrial construction
• Suitable for custody transfer and batching applications

Specifications

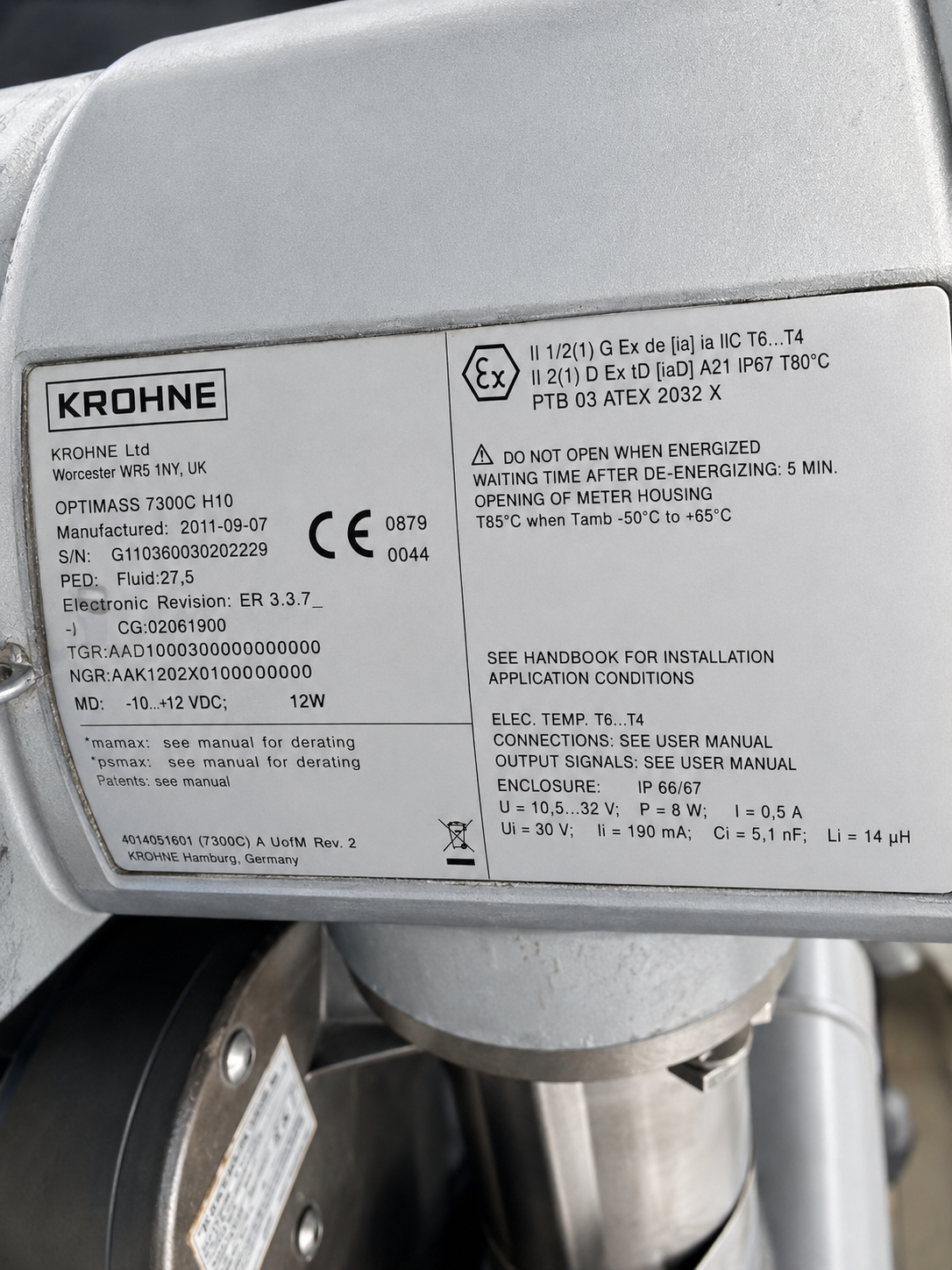

• Manufacturer: KROHNE
• Series: OPTIMASS 7300C
• Model: H10
• Technology: Coriolis Mass Flow Measurement
• Measurement Functions:
  • Mass Flow
  • Density
  • Temperature
  • Volume Flow
• Accuracy:
  • Mass Flow: up to ±0.1%
  • Density: up to ±0.0005 g/cm³
• Process Connection:
  • Flanged configuration (varies by unit)
• Wetted Material:
  • Stainless Steel
• Output Signals:
  • 4–20 mA
  • Pulse/Frequency Output
  • HART Communication
  • Fieldbus options available depending on configuration
• Operating Pressure:
  • Up to 100 bar (application dependent)
• Process Temperature:
  • Up to 180°C (configuration dependent)
• Protection Rating:
  • IP67 / IP68 depending on version
• Hazardous Area Approvals:
  • ATEX, IECEx, FM approvals available on selected models

Function

The OPTIMASS 7300C measures flow using the Coriolis principle. As fluid passes through vibrating measuring tubes, the Coriolis effect causes a phase shift proportional to the mass flow rate. The instrument simultaneously calculates density from the tube vibration characteristics and measures process temperature using integrated sensors. This allows multiple process variables to be measured accurately using a single device.

Typical Applications

• Chemical processing
• Oil & gas production
• Food and beverage manufacturing
• Pharmaceutical production
• Custody transfer systems
• Blending and batching operations
• Tank loading and unloading
• Process control systems
• High-accuracy liquid dosing applications
