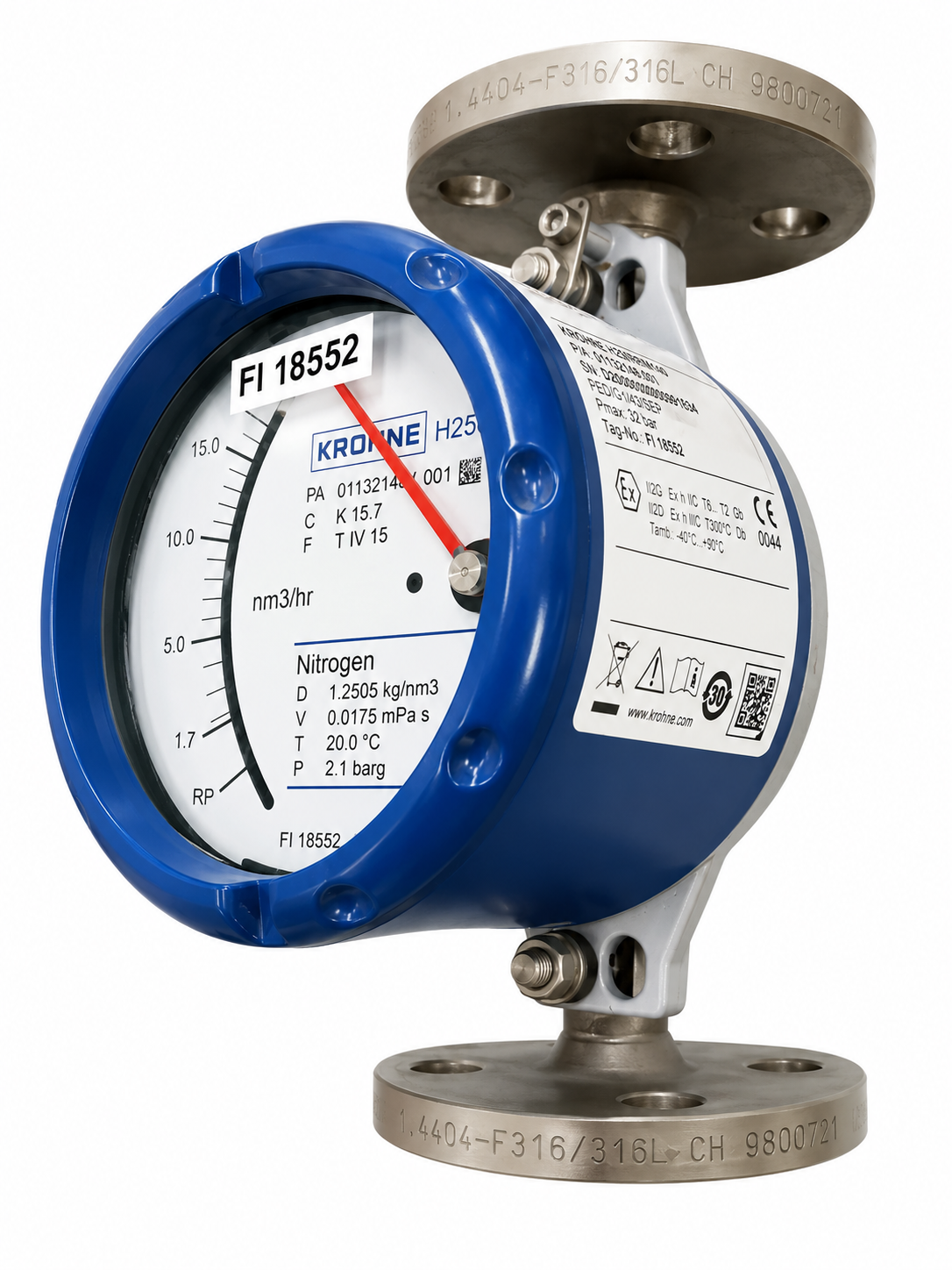

KROHNE H250/RR/M40 Variable Area Flow Meter Rotameter DN25 1" Flanged Ex ATEX

High-quality KROHNE H250 metal tube variable area flow meter designed for industrial gas and liquid flow measurement. This unit is configured for Nitrogen and features an explosion-proof M40 indicator housing with ATEX certification.

Specifications

• Manufacturer: KROHNE
• Model: H250/RR/M40
• Type: Variable Area Flow Meter (Rotameter)
• Process Connection: Flanged

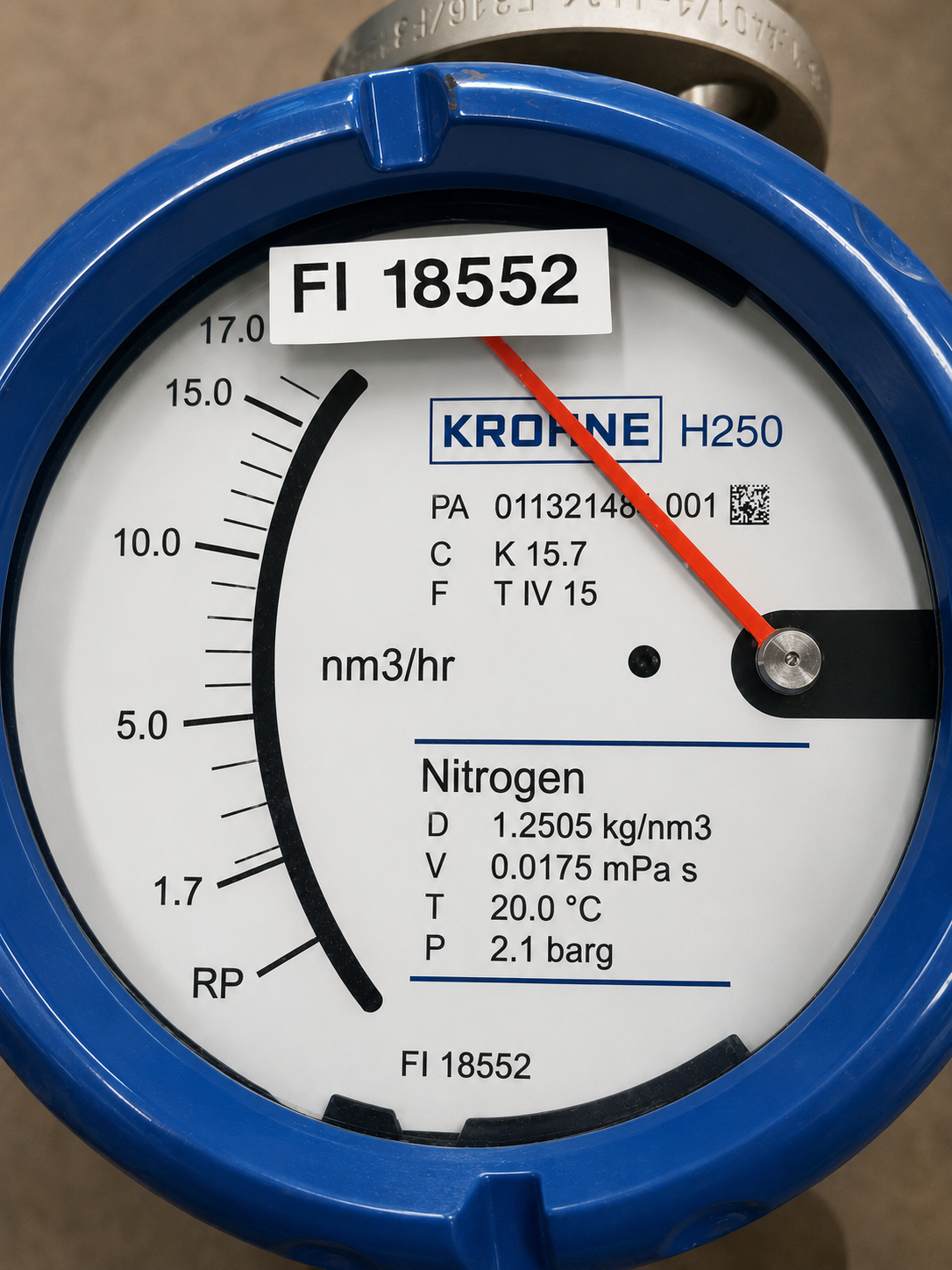

• Medium Calibration: Nitrogen
• Flow Range: Approx. 1.7–17.0 Nm³/hr
• Operating Conditions (Calibration):
  • Gas: Nitrogen
  • Density: 1.2505 kg/Nm³
  • Viscosity: 0.0175 mPa·s
  • Temperature: 20°C
  • Pressure: 2.1 barg
• Maximum Pressure (PS): 16 bar
• Maximum Pressure (PT): 32 bar
• Maximum Temperature (TS): 300°C
• Ingress Protection: IP66/IP68

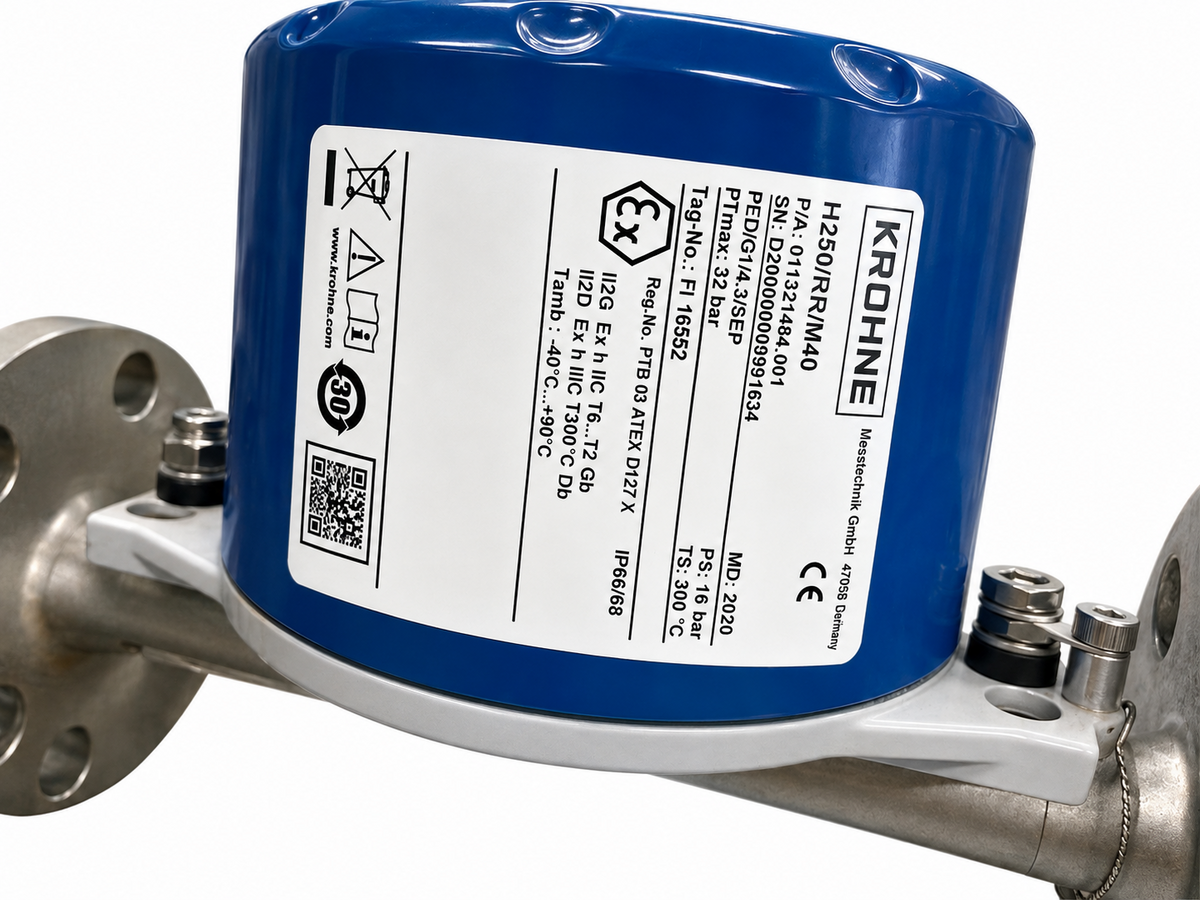

• ATEX Certification: PTB 03 ATEX D127 X
• Explosion Protection:
  • II 2G Ex h IIC T6…T2 Gb
  • II 2D Ex h IIIC T300°C Db
• Manufactured: 2020
• Tag Number: FI18552

Condition

Used, removed from an industrial installation. Shows minor cosmetic signs of use and storage.
