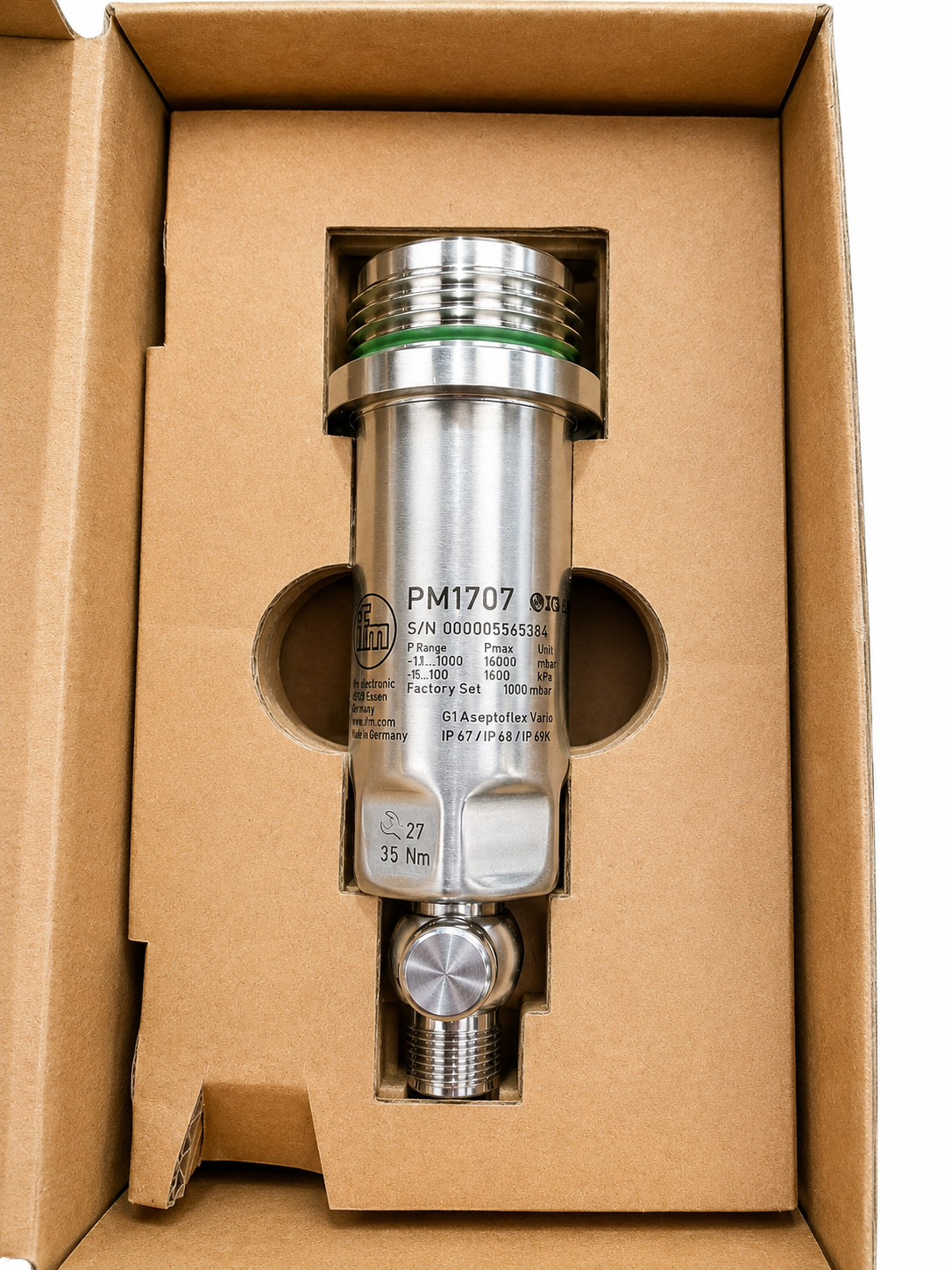

IFM PM1707 Pressure Sensor PM-001BREA01-E-ZVG/US

The IFM PM1707 (PM-001BREA01-E-ZVG/US) is a hygienic flush-mounted electronic pressure sensor designed specifically for the food, beverage, pharmaceutical, and process industries. Featuring a ceramic-capacitive measuring cell, Aseptoflex Vario process connection, and IO-Link communication, the PM1707 provides highly accurate pressure monitoring while eliminating dead spaces where product contamination could occur. It is ideal for measuring pressure in liquids, gases, viscous media, and products containing suspended particles.

Key Features

• Hygienic flush-mounted pressure sensor
• Designed for food and beverage applications
• Ceramic-capacitive measuring cell
• Dead-space-free process connection
• IO-Link communication capability
• 4–20 mA analogue output
• Gold-plated electrical contacts
• High-pressure washdown resistant
• IP67, IP68 and IP69K protection ratings
• Stainless steel process connection
• Suitable for liquids, gases, and viscous media

Specifications

• Manufacturer: IFM Electronic
• Model: PM1707

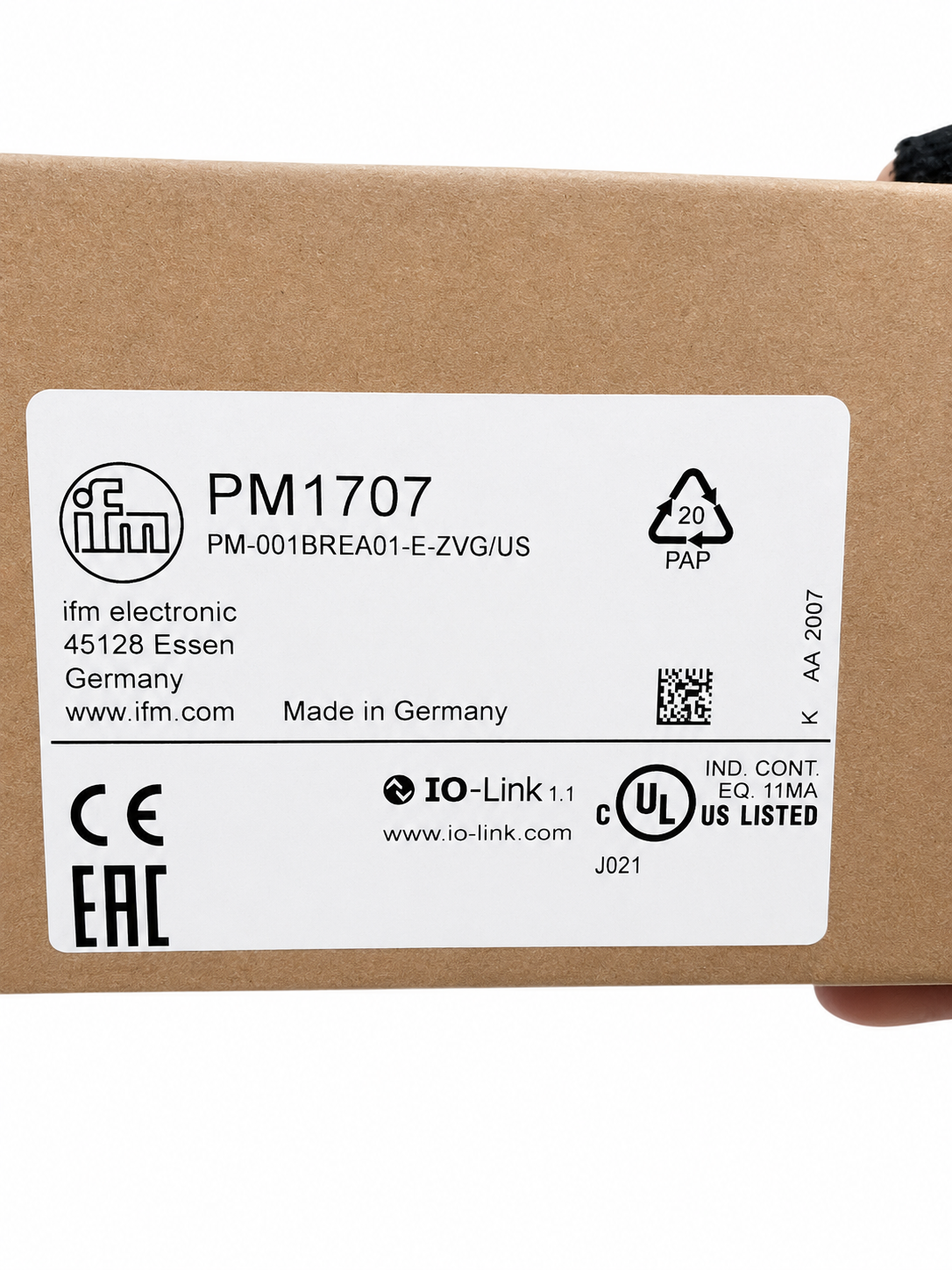

• Full Part Number: PM-001BREA01-E-ZVG/US
• Type: Flush Pressure Sensor
• Measuring Range:
  • -0.05 to 1.0 bar
  • -50 to 1000 mbar
  • -5 to 100 kPa
  • -0.73 to 14.5 psi
• Pressure Type: Relative Pressure
• Measuring Principle: Ceramic-Capacitive Pressure Cell
• Output Signals:
  • 4–20 mA Analogue
  • IO-Link
• Supply Voltage: 18–30 VDC
• Process Connection:
  • G1 Aseptoflex Vario
• Medium Temperature:
  • -25°C to +150°C
• Ambient Temperature:
  • -25°C to +80°C
• Accuracy:
  • ±0.2% of span
• Protection Rating:
  • IP67
  • IP68
  • IP69K
• Maximum Operating Pressure:
  • 10 bar
• Burst Pressure:
  • 30 bar

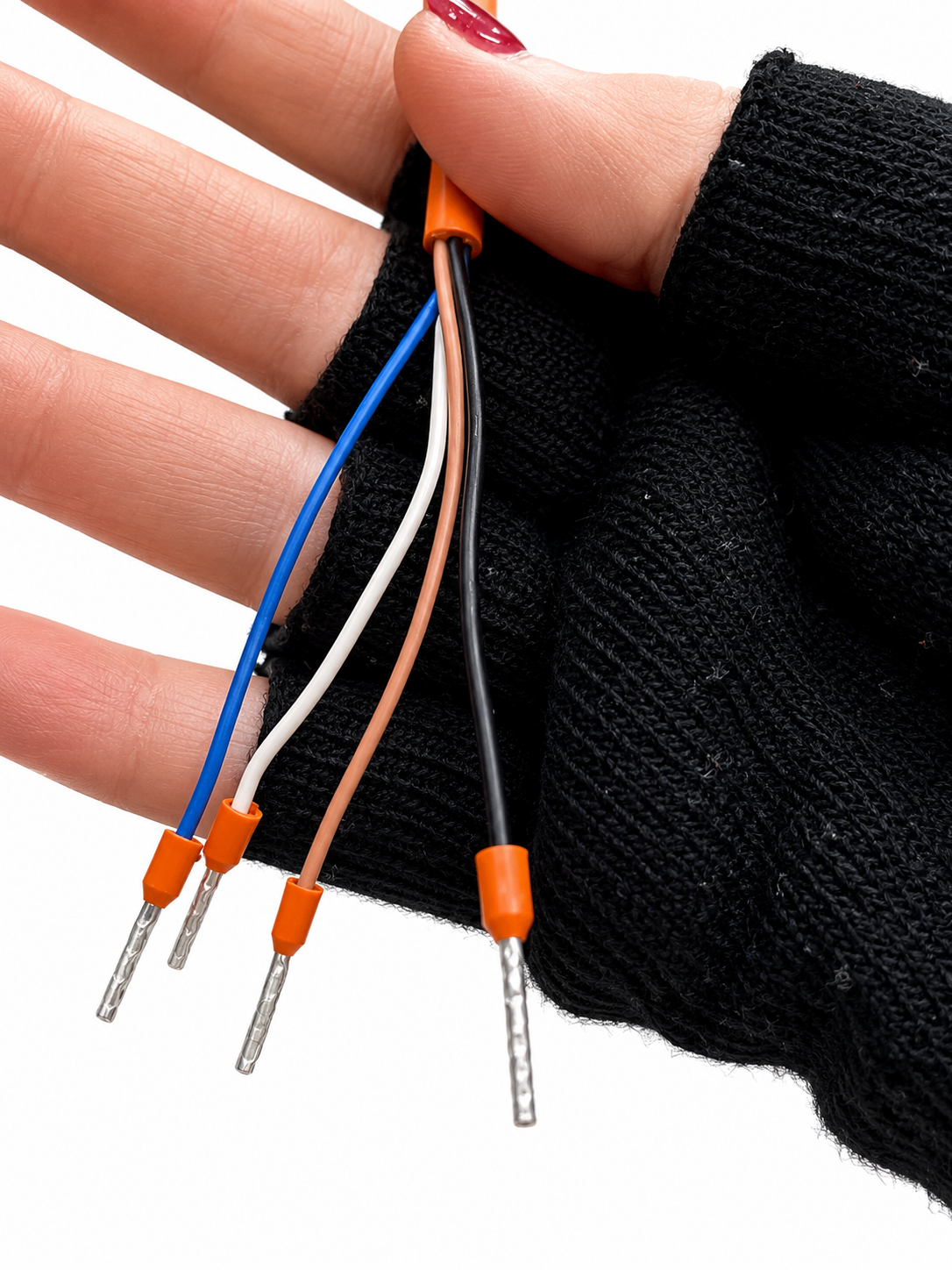

• Connection:
  • M12 4-pin connector

Function

The PM1707 continuously monitors process pressure and converts the measured value into an analogue 4–20 mA or IO-Link signal for transmission to PLCs, control systems, and monitoring equipment. Its flush hygienic diaphragm design prevents product build-up and allows reliable pressure measurement in sanitary applications where cleanliness and process integrity are critical.

Typical Applications

• Food & beverage processing
• Dairy production
• Brewing systems
• Pharmaceutical manufacturing
• CIP/SIP systems
• Process vessels and tanks
• Filling and packaging machinery
• Hygienic process control
• Water and liquid processing systems
