IBS BatchControl CTR 210i 1.1.1 Exi PID Process Controller EEx ib IIC T4

Manufacturer: IBS BatchControl GmbH

Model: CTR 210i 1.1.1

Year: 2008

Serial No.: 2429

Certification: EEx ib IIC T4

Application: Hazardous-area process control / PID control

The CTR 210i is an intrinsically safe process controller designed for use in hazardous areas, including ATEX Zone 1 applications. It provides local process indication and control through the front-panel display and keypad.

Features include:

PID process controller

Set-point (SP) indication

Process variable (PV) indication

Deviation (DEV) indication

Output (OUT) indication

Alarm functions

3 × analogue inputs – 4–20 mA / Pt100 depending on configuration

2 × analogue outputs – 4–20 mA

6 × digital inputs

6 × digital outputs

Modbus interface capability

Automatic set-point ramp/programmer functionality

Cascade, ratio and split-range control functions

Suitable for local control applications in hazardous areas

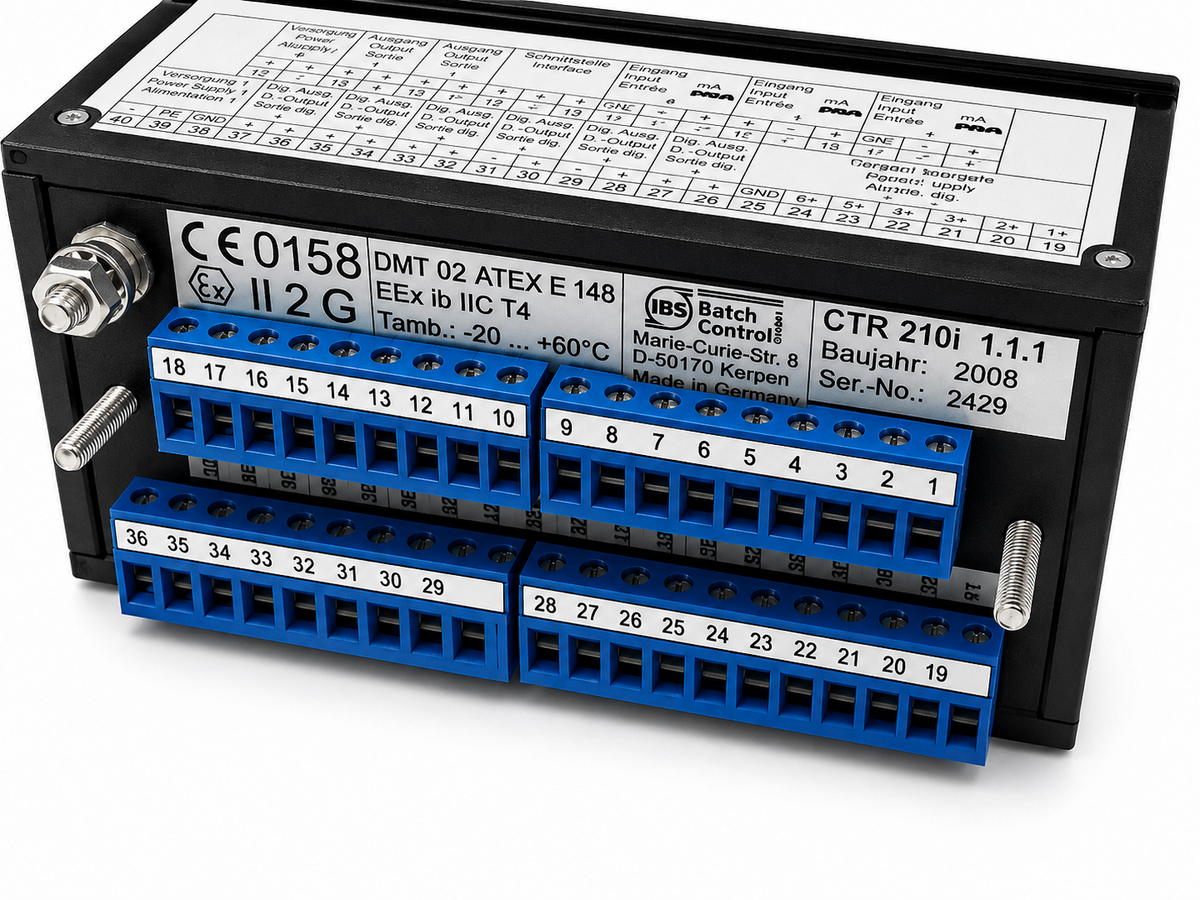

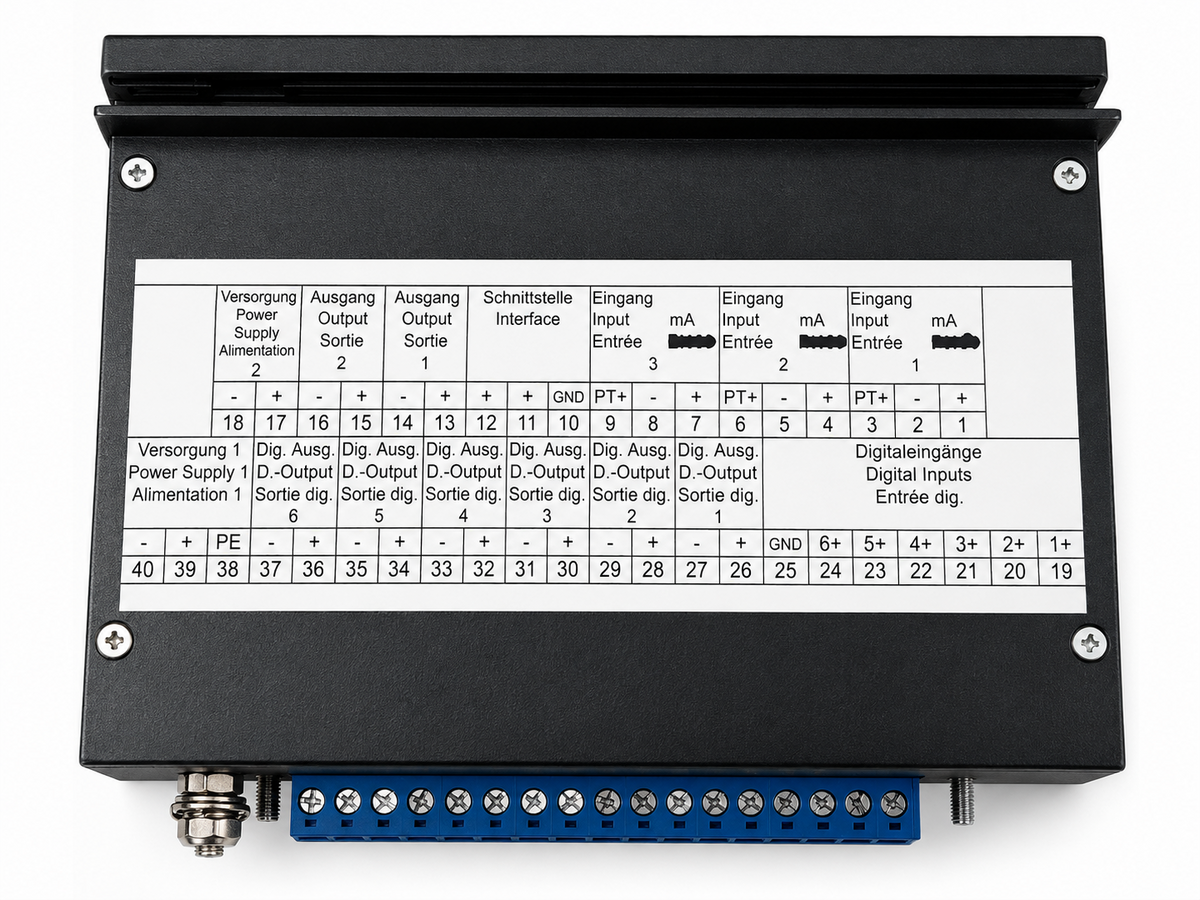

The rear label shows the extensive terminal configuration, including analogue inputs/outputs, digital inputs/outputs, interface and power supply connections.

Condition: Used.

Brand: IBS

MPN: CTR 210i 1.1.1
