Huber Unistat Tango W Dynamic Temperature Controller -45 / +250C

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

Website; MSTAK

Contact Number; 07915071899

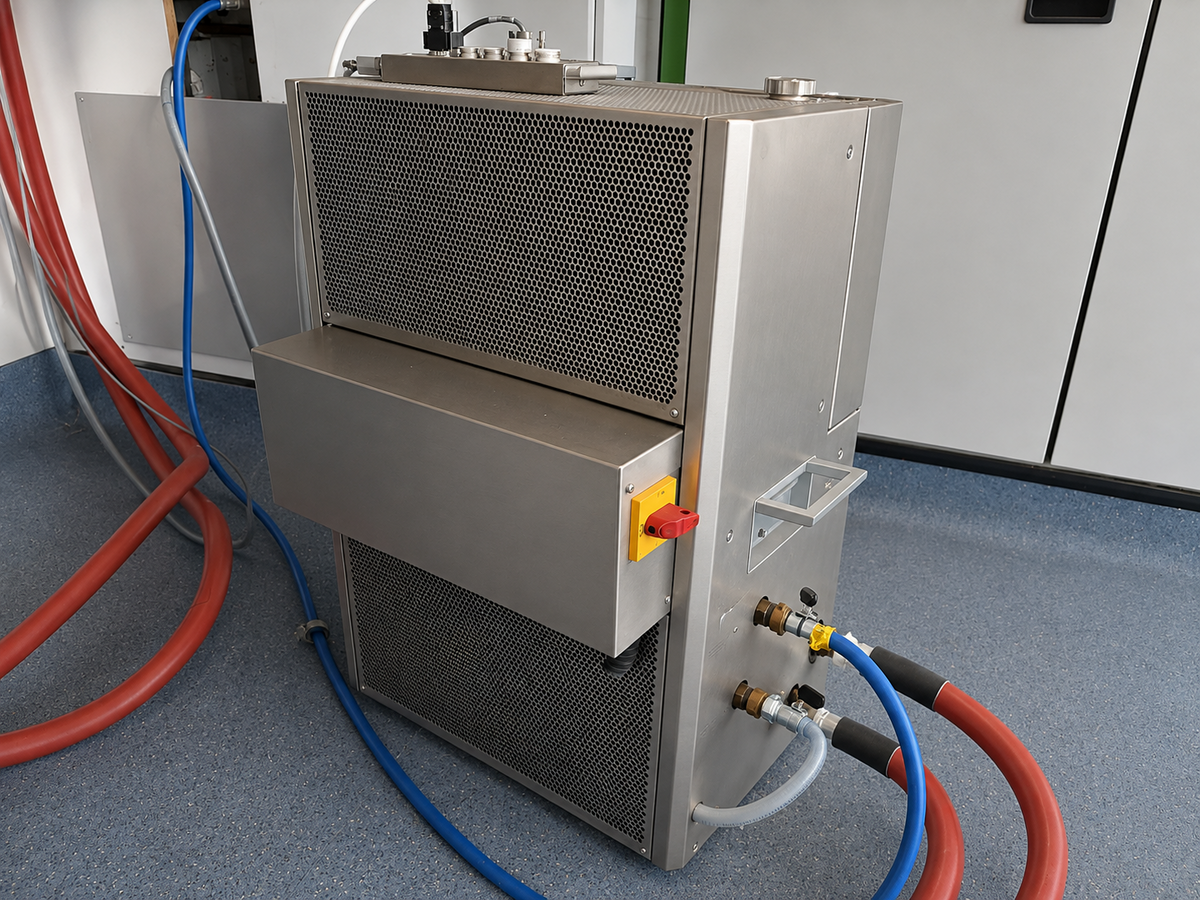

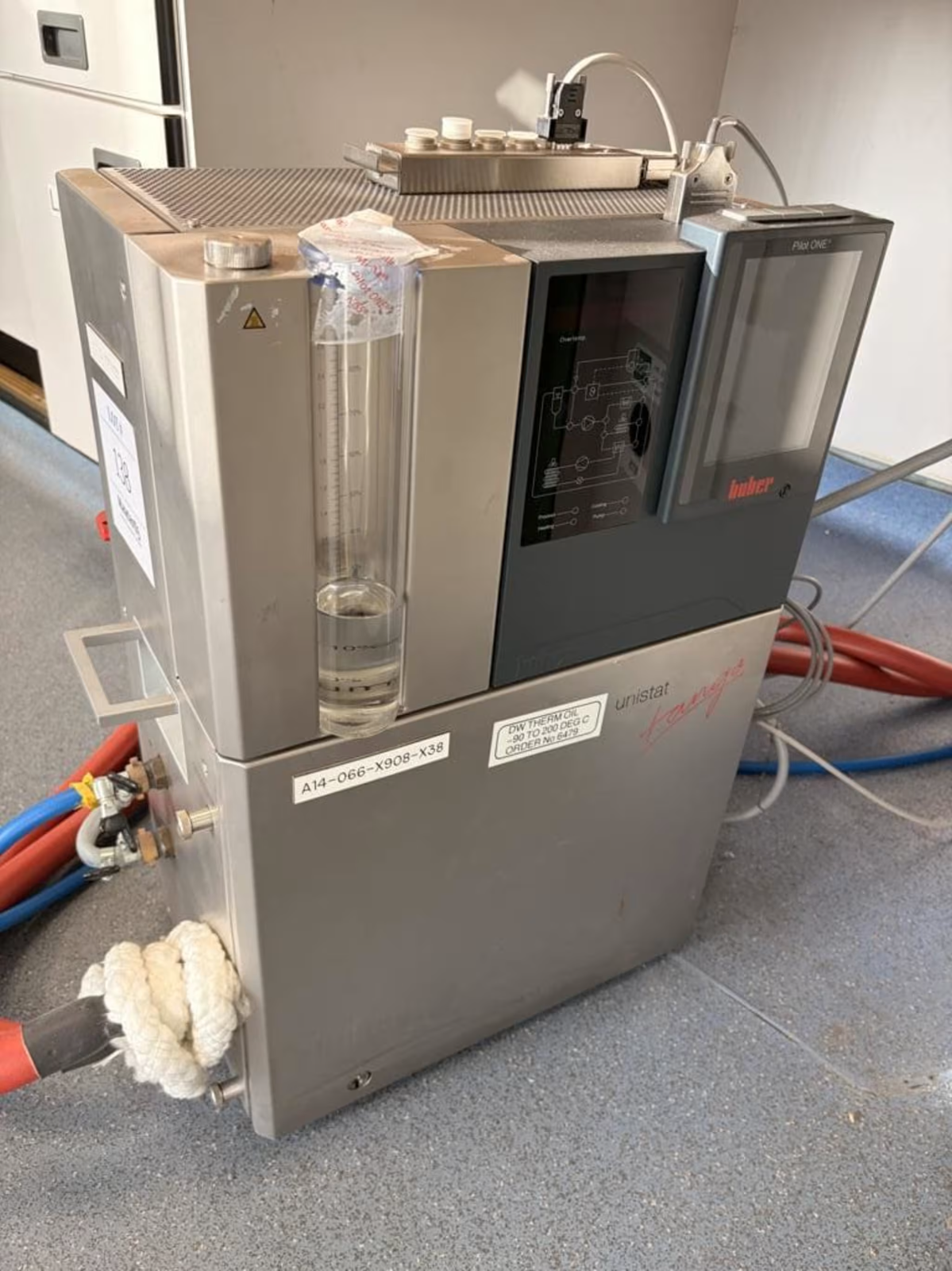

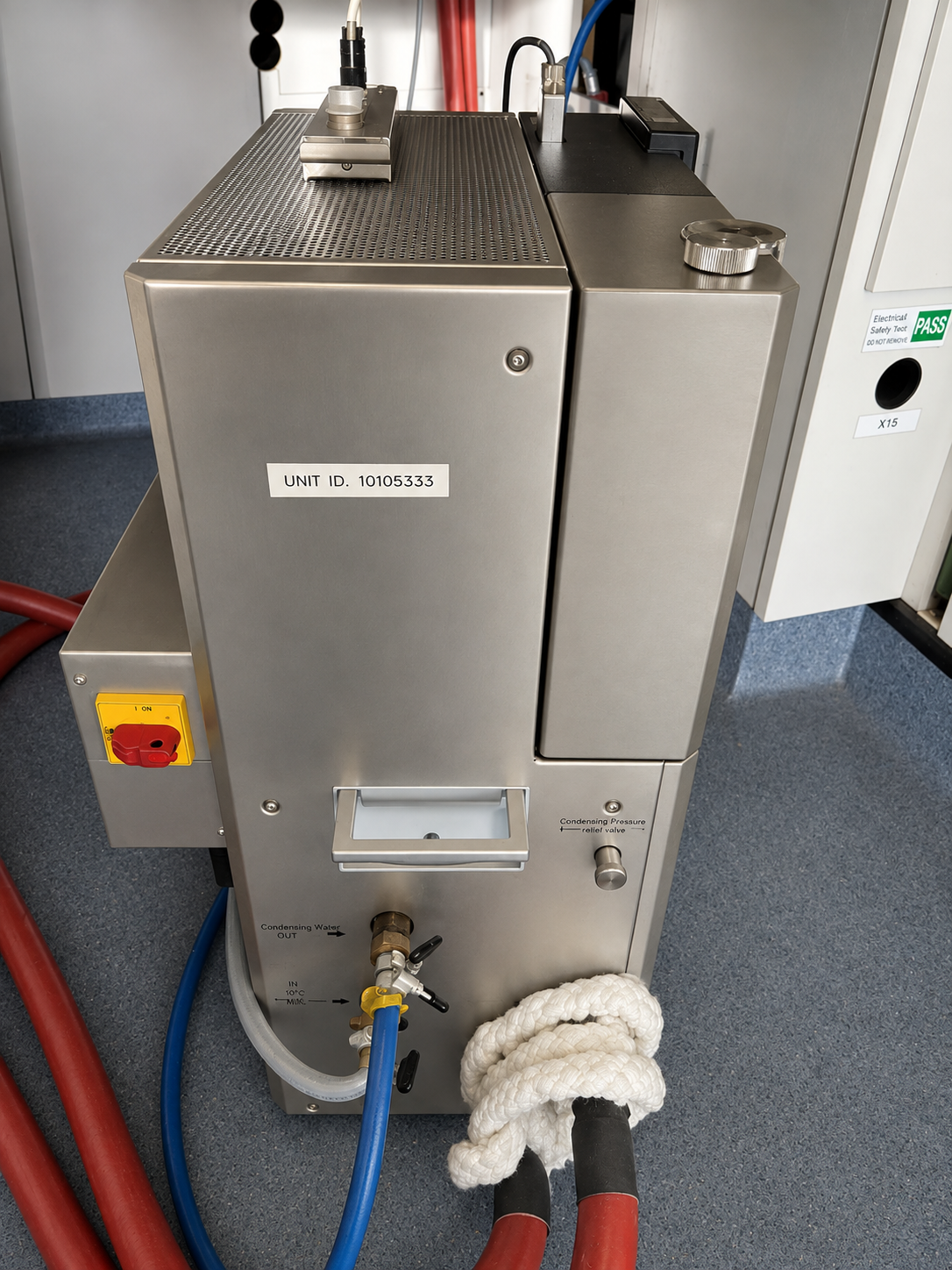

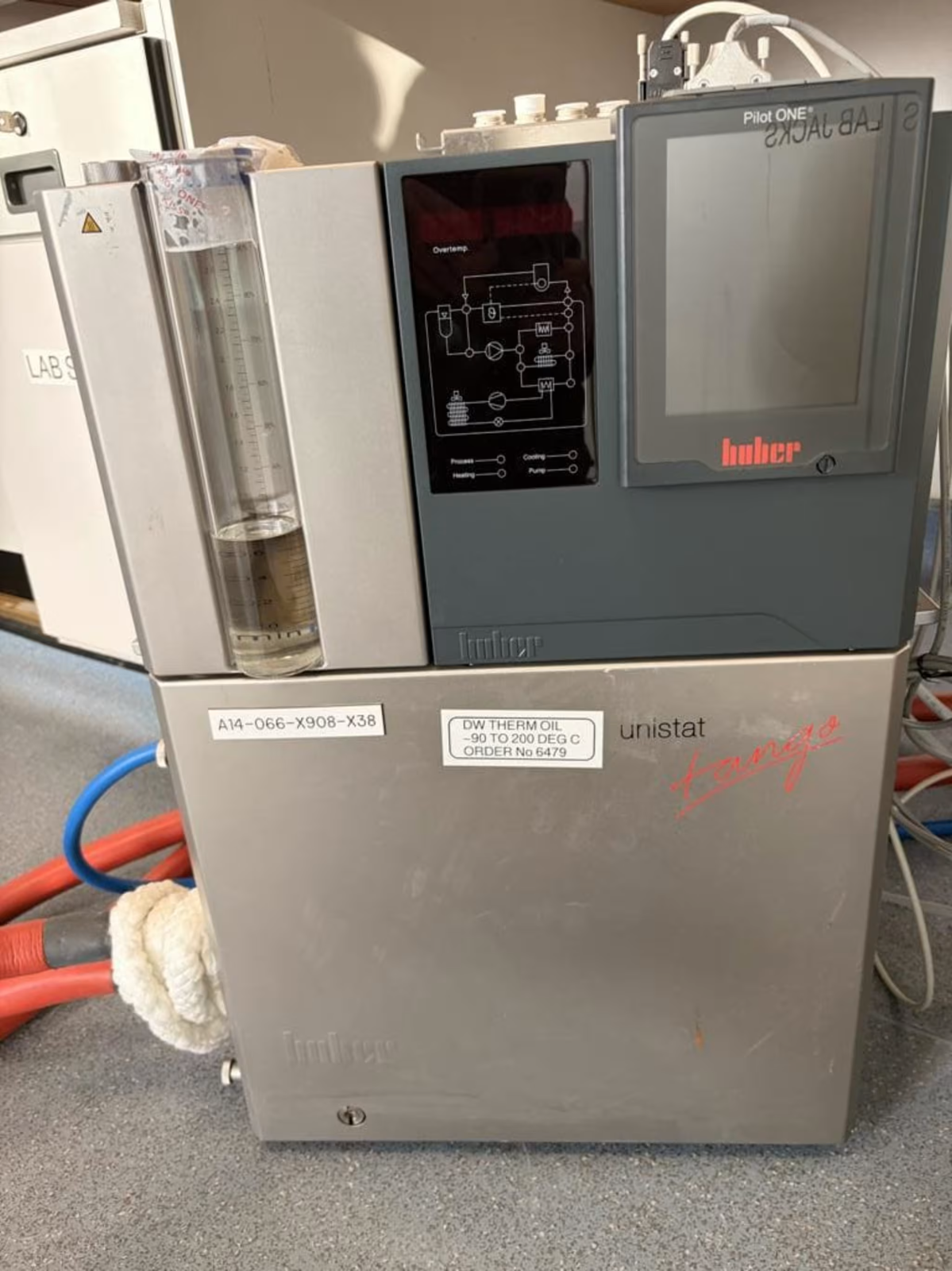

Peter Huber Unistat Tango W dynamic temperature control system / circulation thermostat, designed for precise heating and cooling of laboratory and process equipment, including reactors, autoclaves and pilot plants.

Specifications:

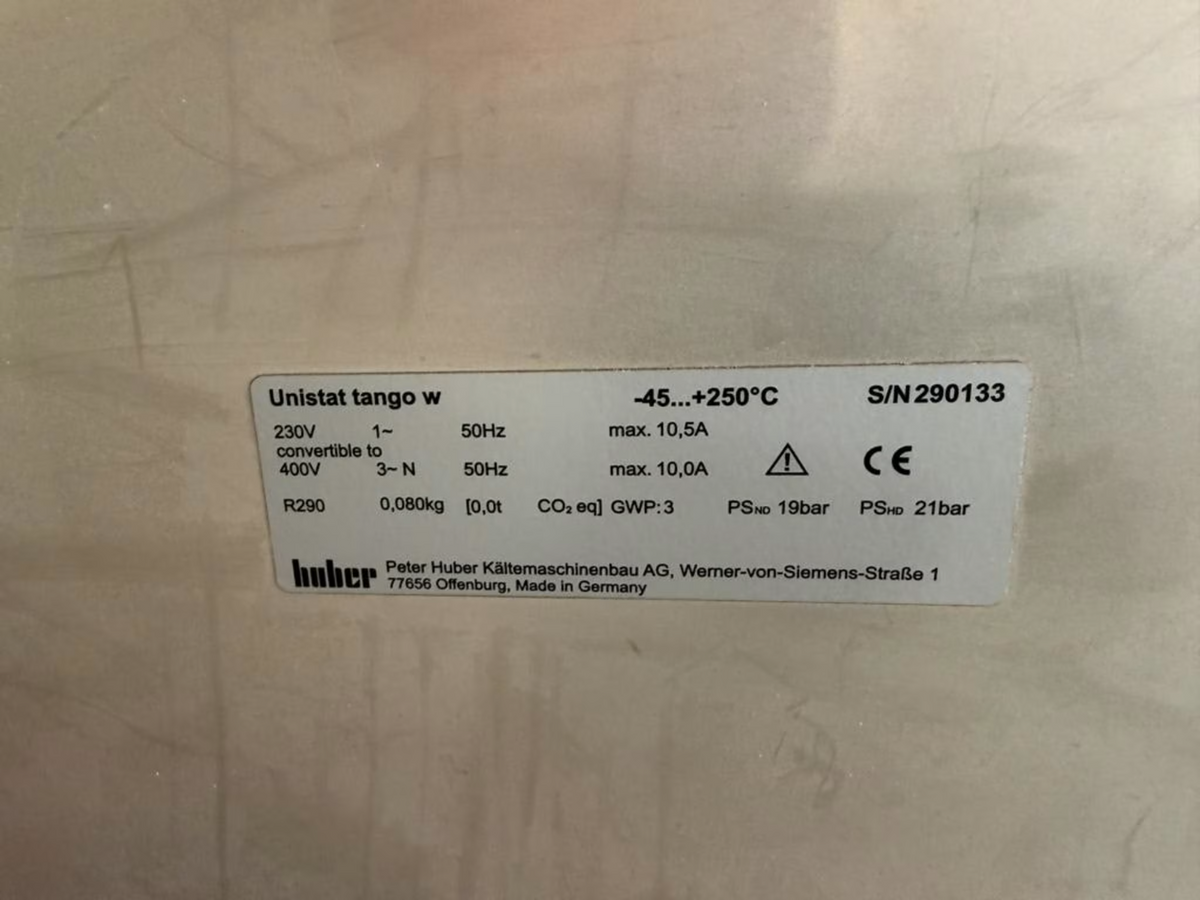

• Manufacturer: Peter Huber Kältemaschinenbau
• Model: Unistat Tango W
• Type: Dynamic temperature control system / circulation thermostat
• Temperature range: -45°C to +250°C
• Temperature stability: ±0.01 K
• Heating capacity: 3 kW
• Cooling capacity: 0.7 kW at 0°C, 0.4 kW at -20°C, 0.06 kW at -40°C
• Circulation pump: 55 L/min
• Maximum pump pressure: 0.9 bar

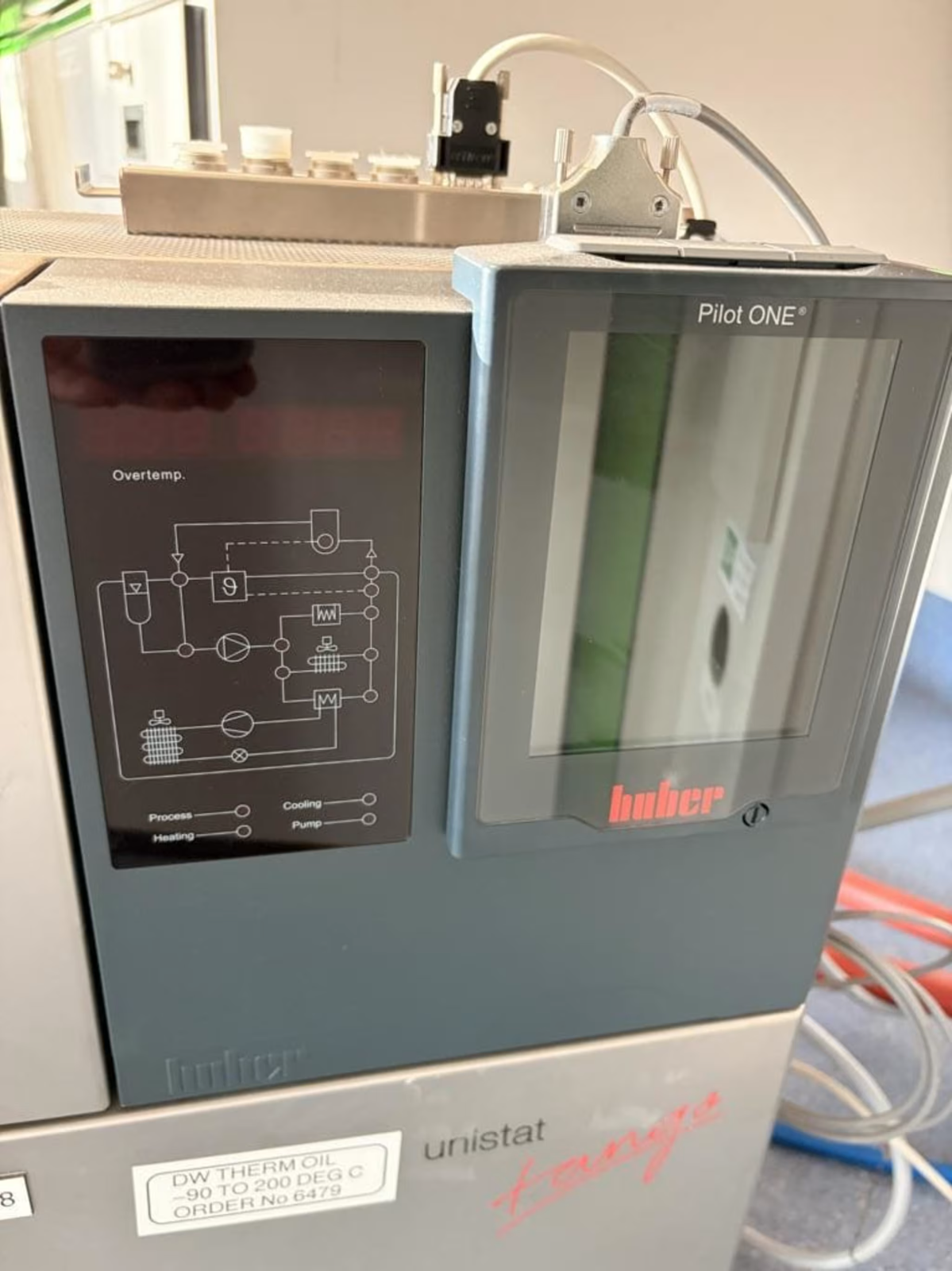

• Controller: Pilot ONE, 5.7" colour touchscreen
• Interfaces: Ethernet, USB and RS232
• Temperature sensor: Pt100
• Cooling: Water-cooled
• Dimensions: Approx. 426 × 327 × 631 mm
• Weight: Approx. 55 kg
• Minimum filling volume: 1.5 L
• Condition: Used

The Unistat Tango W provides rapid and highly precise temperature control over a wide operating range without requiring frequent changes of heat-transfer fluid. It is suitable for chemical reactors, laboratory process equipment, pharmaceutical R&D, reaction testing, pilot plants and other demanding temperature-controlled applications.

Condition: Used laboratory/process equipment in good condition
