Huber Unistat Tango Pilot One Chiller Process Thermostat -45°C To 250°C Used

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

Website MSTAK
Contact Number: 07915071899

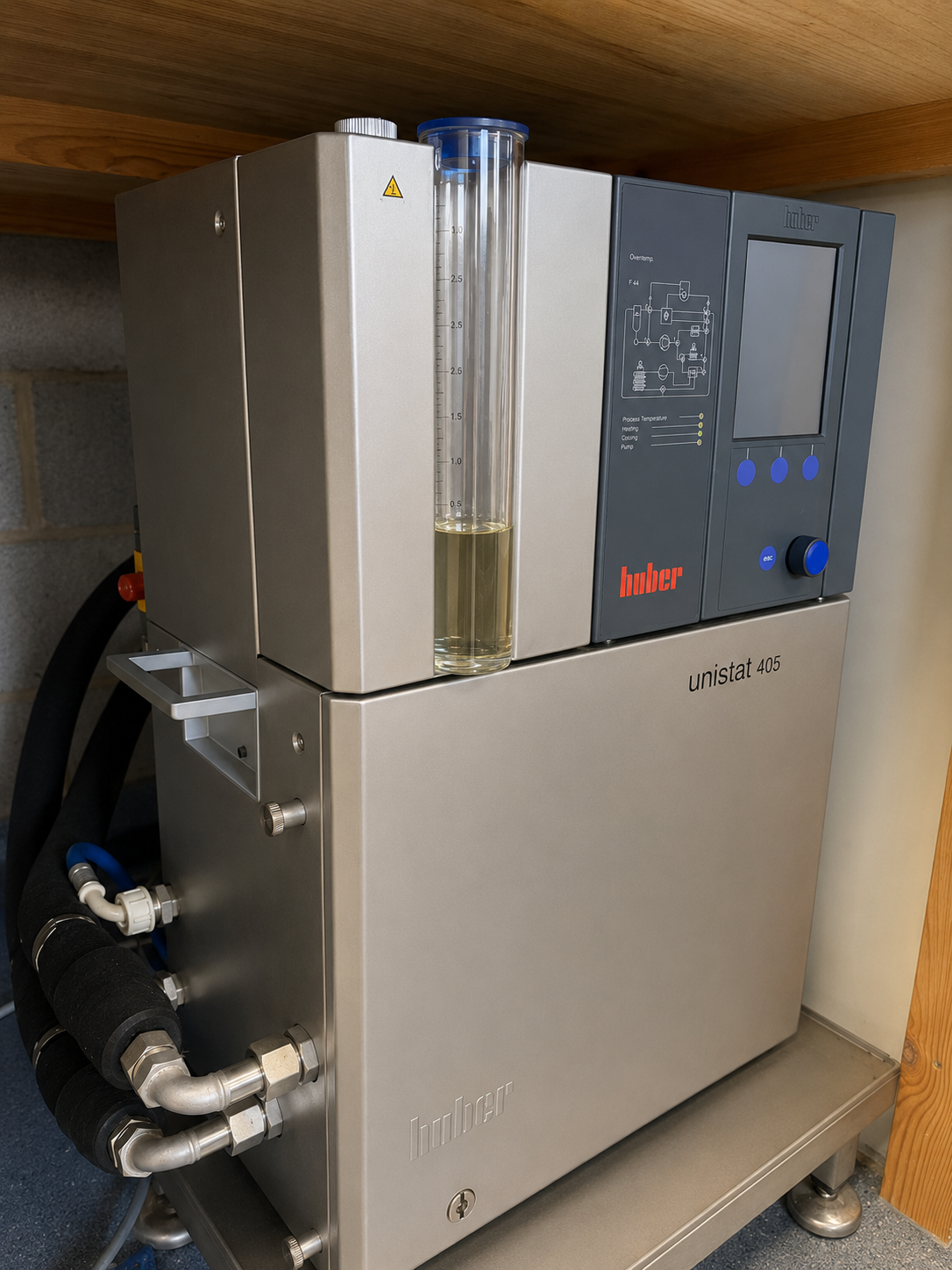

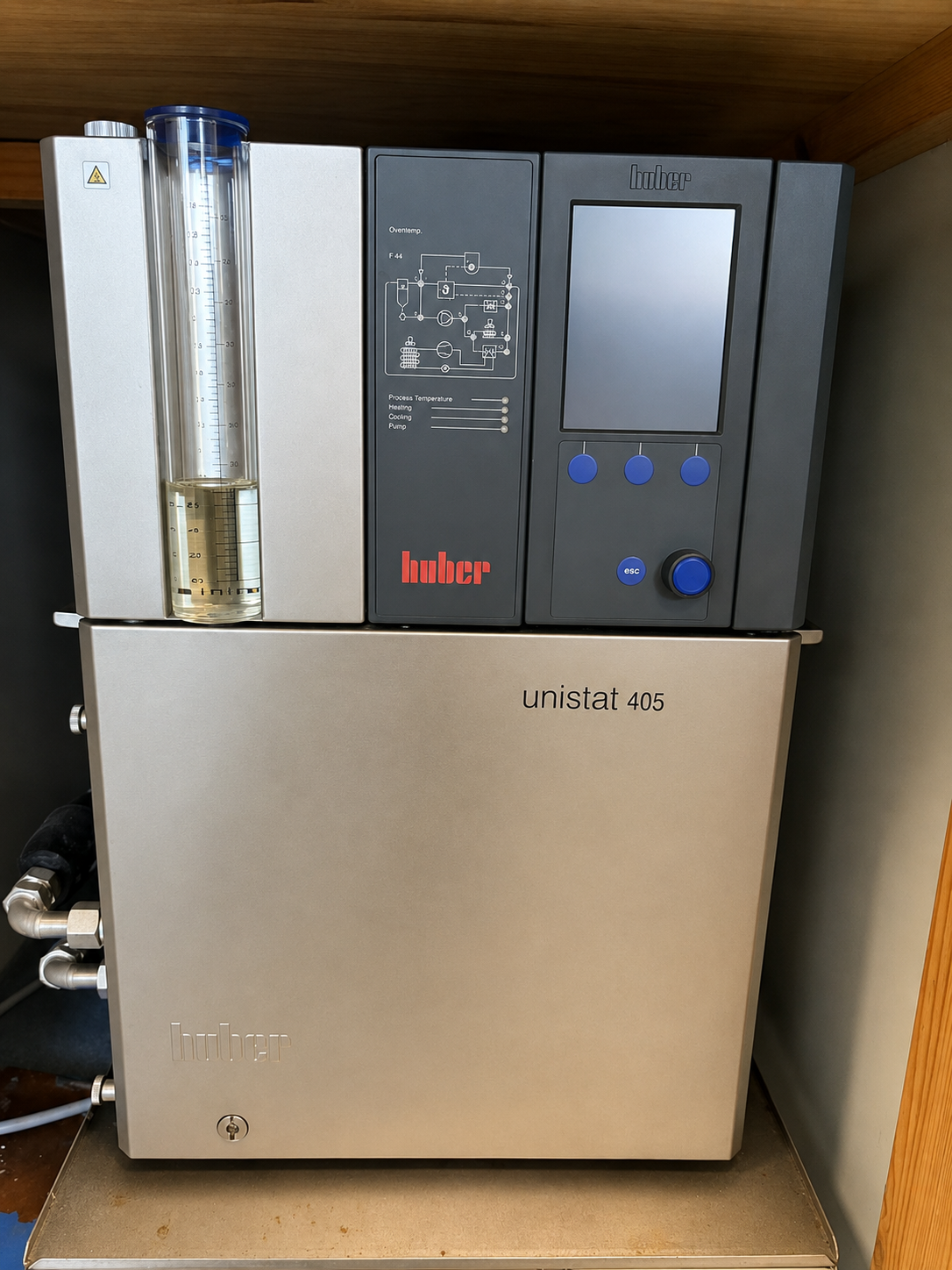

Peter Huber Unistat 405 dynamic temperature control system / circulation thermostat, designed for precise heating and cooling of laboratory and process equipment including reactors, autoclaves, pilot plants and calorimeters. Huber specifies the Unistat 405 with an operating range of -45°C to +250°C, ±0.01 K temperature stability, 3 kW heating capacity and a circulation pump delivering up to 55 L/min at 0.9 bar.

Specifications:

• Manufacturer: Peter Huber Kältemaschinenbau
• Model: Unistat 405
• Type: Dynamic temperature control system / circulation thermostat
• Temperature range: -45°C to +250°C
• Temperature stability: ±0.01 K
• Heating capacity: 3 kW
• Cooling capacity: Up to 1.0 kW depending on temperature/heat-transfer fluid
• Circulation pump: 55 L/min
• Maximum pump pressure: 0.9 bar
• Controller: Pilot ONE touchscreen
• Temperature sensor: Pt100
• Interfaces: Ethernet, USB and RS232
• Minimum filling capacity: 1.5 L
• Dimensions: Approx. 426 × 327 × 631 mm
• Weight: Approx. 35 kg
• Condition: Used / untested

Suitable for chemical and pharmaceutical R&D, reactor temperature control, autoclaves, pilot plants, process development and other demanding laboratory applications.

Condition: Used laboratory/process equipment
