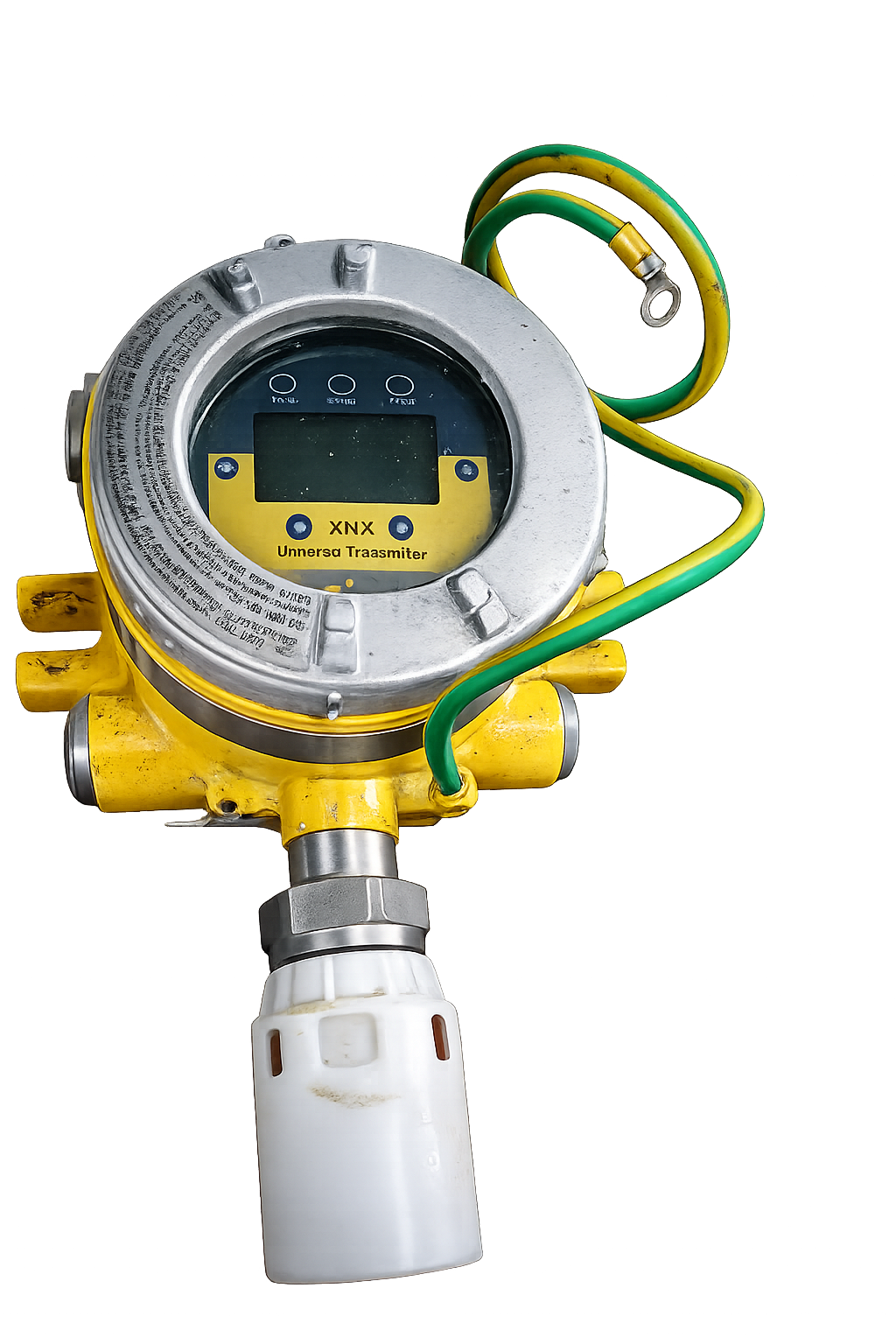

Honeywell XNX XNXAMSE-NNNNN Universal Transmitter

The Honeywell XNX Universal Transmitter is a highly flexible fixed gas detection platform designed to operate with a wide range of Honeywell gas sensing technologies, including electrochemical, infrared, catalytic bead, and open-path gas detectors. Commonly installed in oil & gas, petrochemical, offshore, chemical processing, power generation, and industrial manufacturing facilities, the XNX provides reliable monitoring of combustible, toxic, and oxygen gases in hazardous areas.

Key Features

• Universal fixed gas detector transmitter
• Compatible with electrochemical, infrared, catalytic, and open-path sensors
• Detects combustible, toxic, and oxygen gases
• Large backlit LCD display with local status indication
• Modular design for easy maintenance and configuration
• 4–20 mA analog output with HART communication
• Optional relay, Modbus, and Foundation Fieldbus communications
• Hazardous area certified for worldwide installations
• Non-intrusive magnetic wand operation
• Supports a wide range of Honeywell Analytics gas sensors

Specifications

• Manufacturer: Honeywell Analytics
• Model: XNX Universal Transmitter
• Type: Fixed Gas Detection Transmitter
• Gas Types:
  • Combustible gases (0–100% LEL)
  • Toxic gases
  • Oxygen monitoring
• Sensor Technologies Supported:
  • Electrochemical (EC)
  • Infrared (IR)
  • Catalytic bead
  • Open-path infrared systems
• Output Signals:
  • 4–20 mA
  • HART Protocol
  • Optional Modbus
  • Optional Foundation Fieldbus
  • Optional Relays
• Display:
  • High-resolution LCD with alarm and status indication
• Operating Temperature:
  • -40°C to +65°C (sensor dependent)
• Housing Materials:
  • Painted LM25 Aluminum
  • Optional SS316 Stainless Steel
• Mounting:
  • Wall, pipe, or field mounting
• Hazardous Area Approvals:
  • ATEX
  • IECEx
  • UL
  • CSA
  • FM (model dependent)

Function

The Honeywell XNX acts as the central transmitter for fixed gas detection systems. It receives signals from connected gas sensors, continuously monitors gas concentrations, displays readings locally, and transmits alarm and measurement data to plant control systems. Its universal architecture allows users to standardize on a single transmitter platform while supporting multiple sensor technologies and gas types throughout a facility.

Typical Applications

• Oil & Gas Production Facilities
• Offshore Platforms
• Petrochemical Plants
• Chemical Processing Facilities
• Refineries
• LNG Terminals
• Power Generation Plants
• Water Treatment Facilities
• Hazardous Area Gas Monitoring Systems
