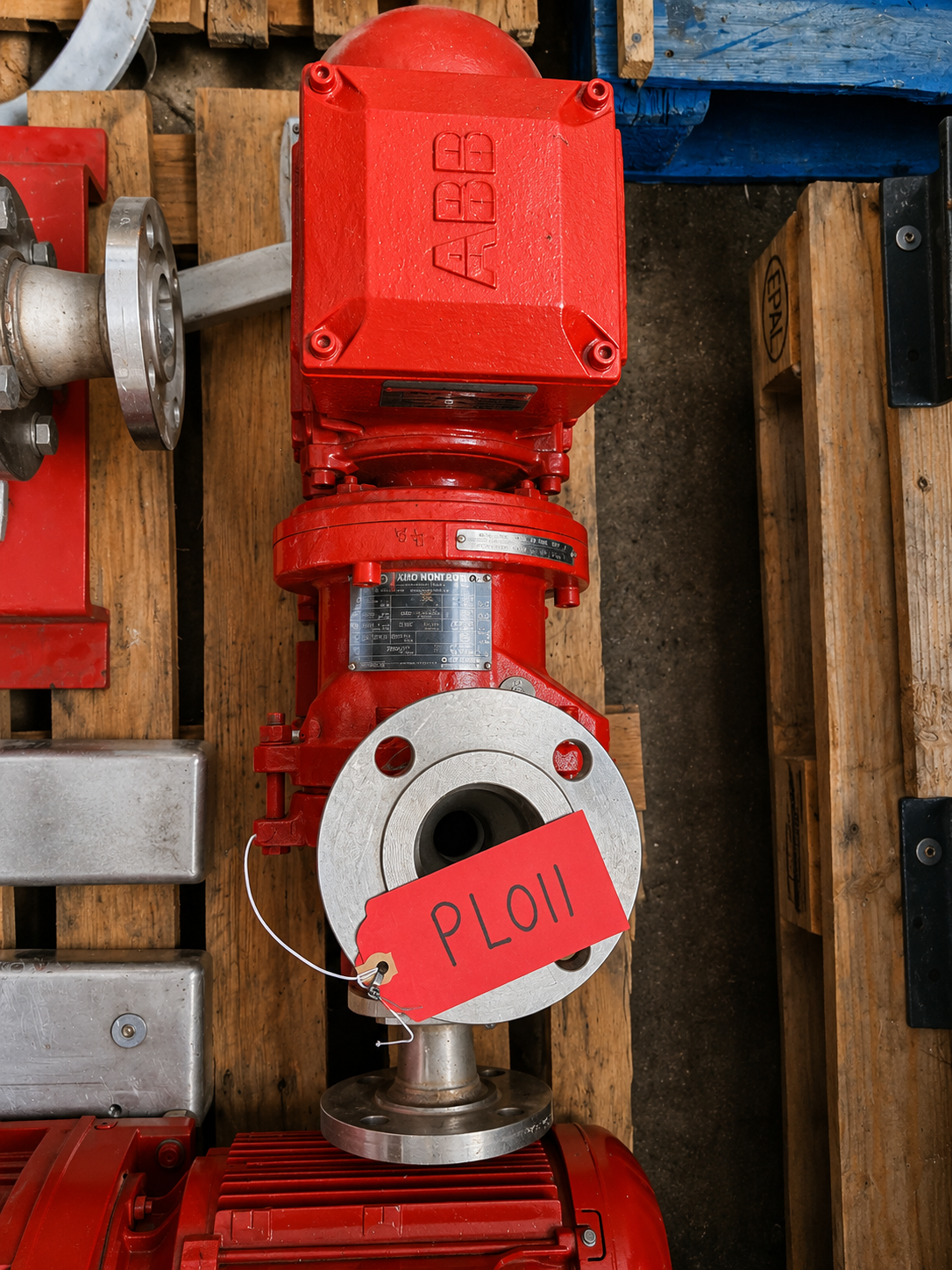

For sale is a HMD Kontro GTA 1X1X6 CA1 sealless magnetic-drive centrifugal pump, designed for general transfer and chemical/process applications.

The GTA range is a close-coupled, sealless magnetic-drive pump designed to provide contained pumping without a conventional mechanical shaft seal. HMD Kontro describes the GT range as suitable for general transfer duties, with applications including chemical and process fluids.

Specifications

• Manufacturer: HMD Kontro
• Model: GTA 1X1X6 CA1
• Pump type: Sealless magnetic-drive centrifugal pump
• Size: 1" x 1" x 6"
• Construction: 316 stainless steel
• Serial number: 826482
• Flange standard: ANSI
• Flange rating: 150 lb
• Maximum design pressure: Approx. 8.9 bar as marked on the pump plate
• Head: Approx. 45 m as marked
• Temperature rating: Approx. 120°C as marked
• Configuration: Close-coupled magnetic-drive design

The HMD Kontro GT range uses a sealless magnetic-drive arrangement and stainless-steel construction, with silicon-carbide internal bearings on the standard configuration. The manufacturer's published GT range has a design pressure capability up to 18.9 bar and temperature range up to 260°C, although the individual pump's nameplate specifications should be used for this particular unit.

Condition

Used

The pump has been recovered from industrial/laboratory process equipment and shows evidence of previous use
