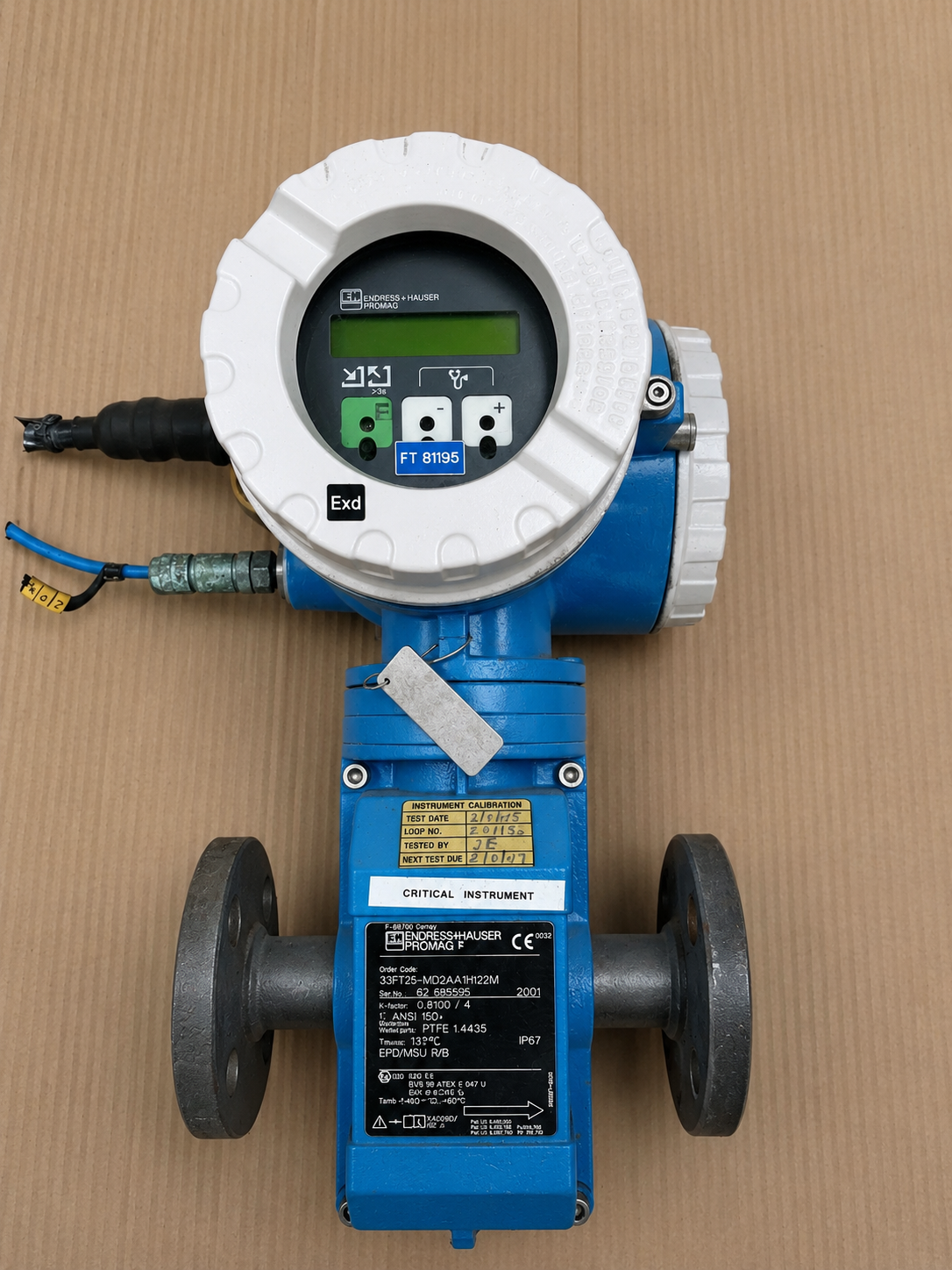

Endress + Hauser Promag 33F Flowmeter

The Endress+Hauser Promag 33F is a compact electromagnetic flowmeter designed for accurate measurement of electrically conductive liquids in chemical processing, water treatment, industrial manufacturing, and process control applications. The Promag 33F combines a robust flow sensor with an integrated transmitter, providing reliable flow measurement with no moving parts, minimal maintenance, and virtually no pressure loss. It is particularly suited for corrosive liquids and high-temperature process media.

Key Features

• Electromagnetic (magnetic inductive) flow measurement
• Compact sensor and transmitter design
• Suitable for conductive liquids
• No moving parts for low maintenance
• Bidirectional flow measurement
• High accuracy and repeatability
• Virtually no pressure loss
• Suitable for corrosive process fluids
• Integrated local electronics
• Industrial IP67 enclosure protection

Specifications

• Manufacturer: Endress+Hauser
• Series: Promag
• Model: 33F
• Measuring Principle: Electromagnetic Flow Measurement
• Measured Variable:
  • Volume Flow
• Medium Requirement:
  • Electrically conductive liquids
• Output Signals:
  • 4–20 mA
  • Pulse/Frequency Output
  • HART communication (model dependent)
• Power Supply:
  • 20–55 VAC or 16–62 VDC (varies by configuration)
• Protection Rating:
  • IP67
• Sensor Type:
  • Flanged electromagnetic flow sensor
• Applications:
  • Corrosive liquids
  • Chemical process media
  • Water and wastewater
  • Industrial liquids

Function

The Promag 33F operates using Faraday's Law of Electromagnetic Induction. As a conductive liquid flows through the magnetic field generated by the sensor, a voltage proportional to the flow velocity is induced and measured by the transmitter. This provides highly accurate flow measurement without mechanical wear, restrictions, or moving components in the flow path.

Typical Applications

• Chemical processing plants
• Water and wastewater treatment
• Acids and alkalis
• Process manufacturing
• Utility systems
• Industrial liquid transfer
• Cooling water systems
• General process flow monitoring
