Endress+Hauser Liquiphant S FTL71 Vibrating Fork Level Switch 488mm Probe Ex

High-quality Endress+Hauser Liquiphant S point level switch for reliable liquid level detection in industrial process applications. Suitable for overfill protection, dry-run protection, and point level detection in hazardous areas.

Specifications

• Manufacturer: Endress+Hauser
• Series: Liquiphant S
• Model: FTL71

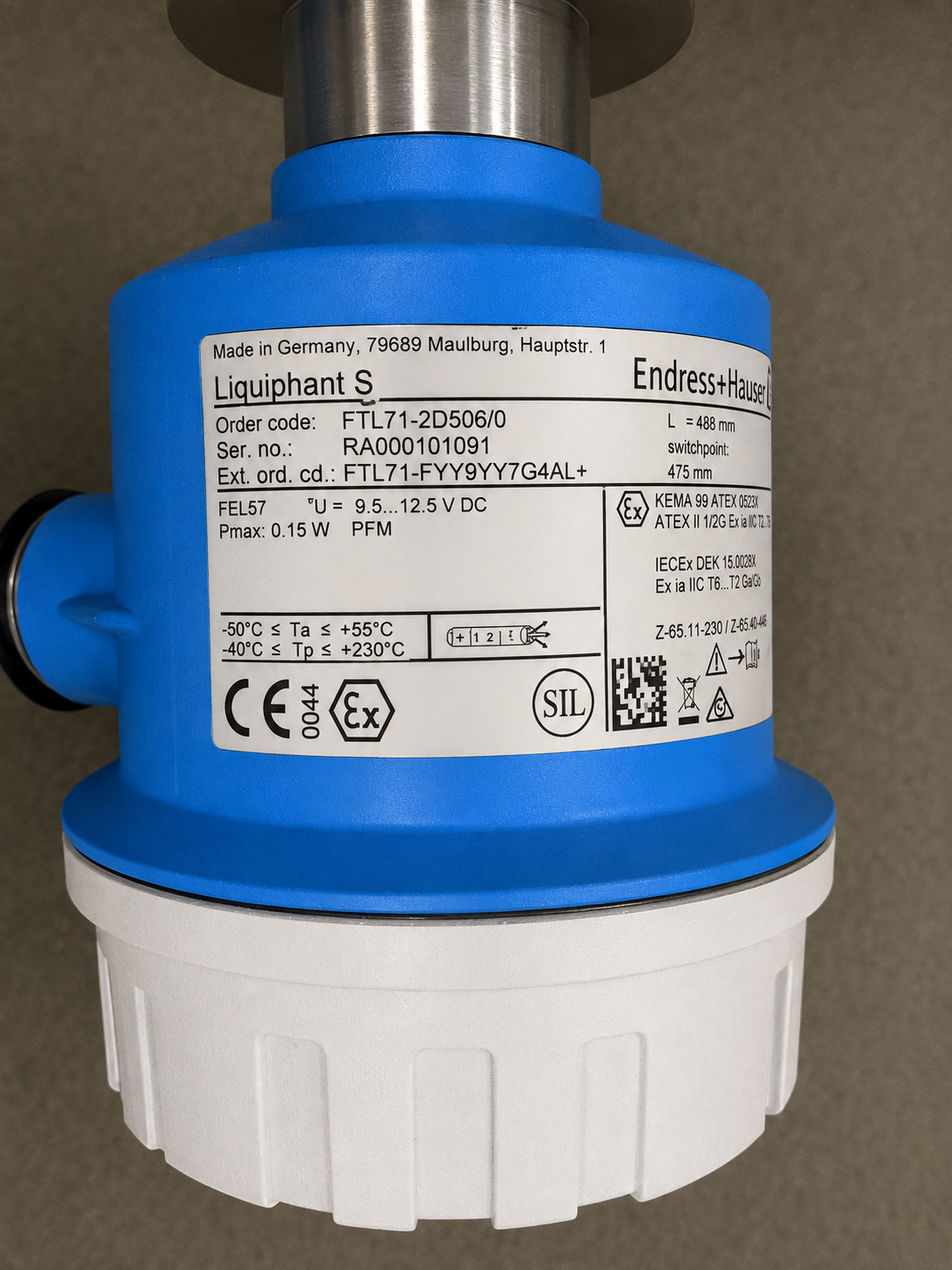

• Order Code: FTL71-2D506/0
• Extended Order Code: FTL71-FYY9YYY7G4AL+
• Serial Number: RA000101091

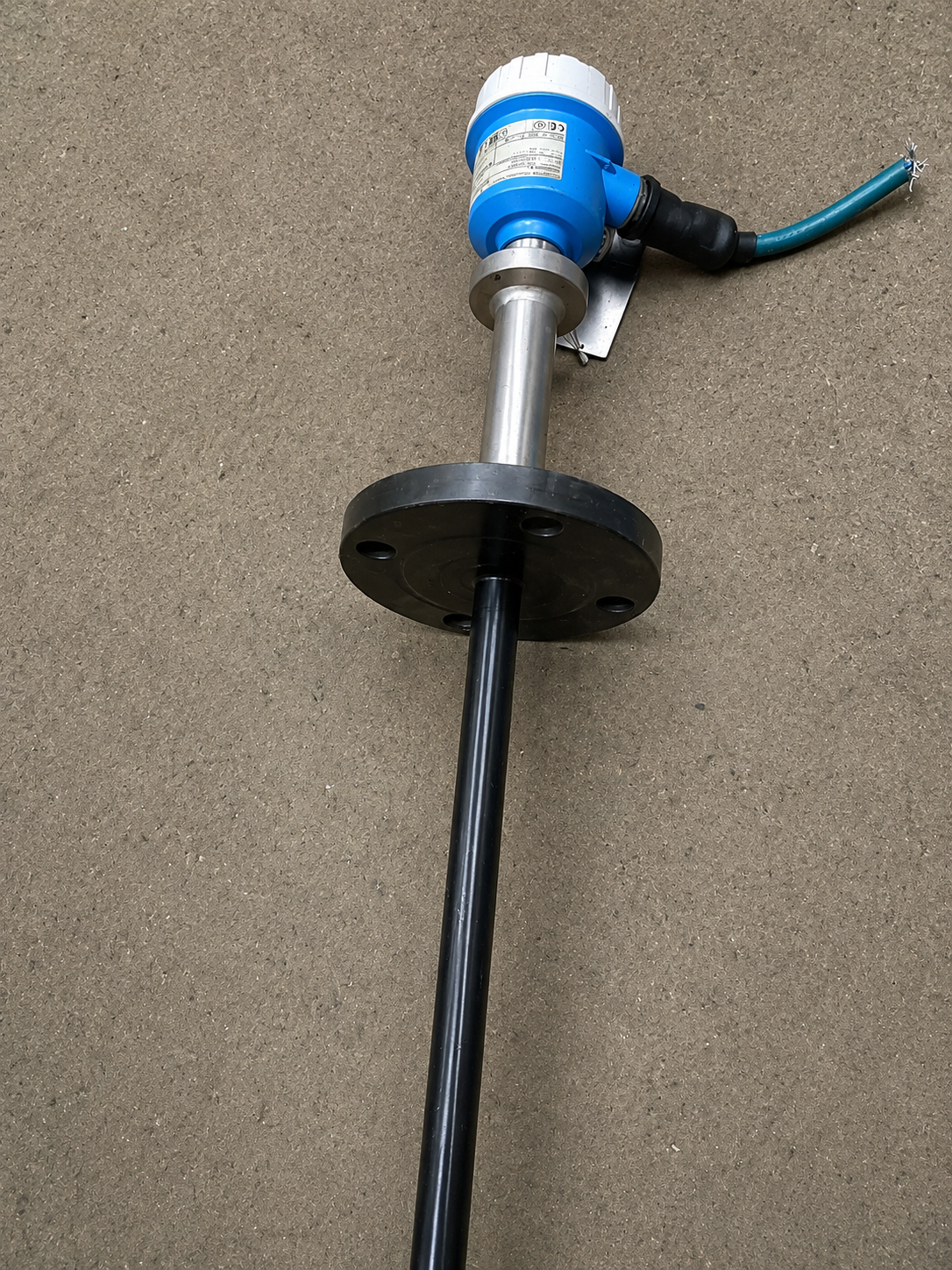

• Probe Length (L): 488 mm
• Switch Point: 475 mm
• Process Connection: Flanged
• Power Supply: 9.5–12.5 VDC (PFM)

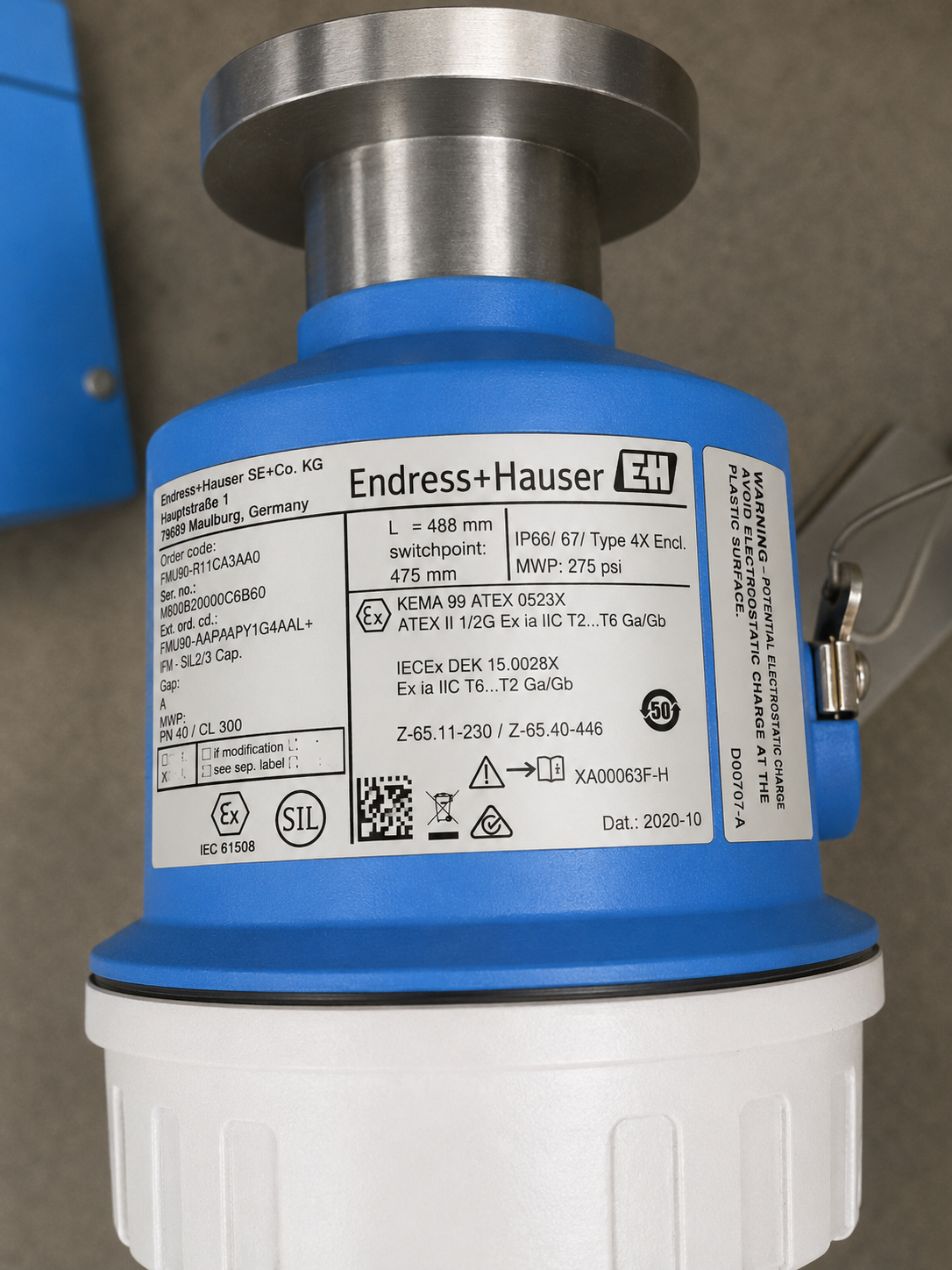

• Maximum Working Pressure: 275 psi
• Protection Rating: IP66/IP67, Type 4X
• Approvals: ATEX, IECEx
• Safety Rating: SIL Certified
• Manufactured: October 2020

Features

• Vibrating fork technology
• Point level detection for liquids
• Suitable for hazardous (Ex) areas
• Overfill and dry-run protection
• Immune to changes in density, conductivity and dielectric constant
• Stainless steel probe with industrial flange mounting
• Maintenance-free operation

Condition

• Used industrial surplus.
• Cosmetic marks from previous use.
