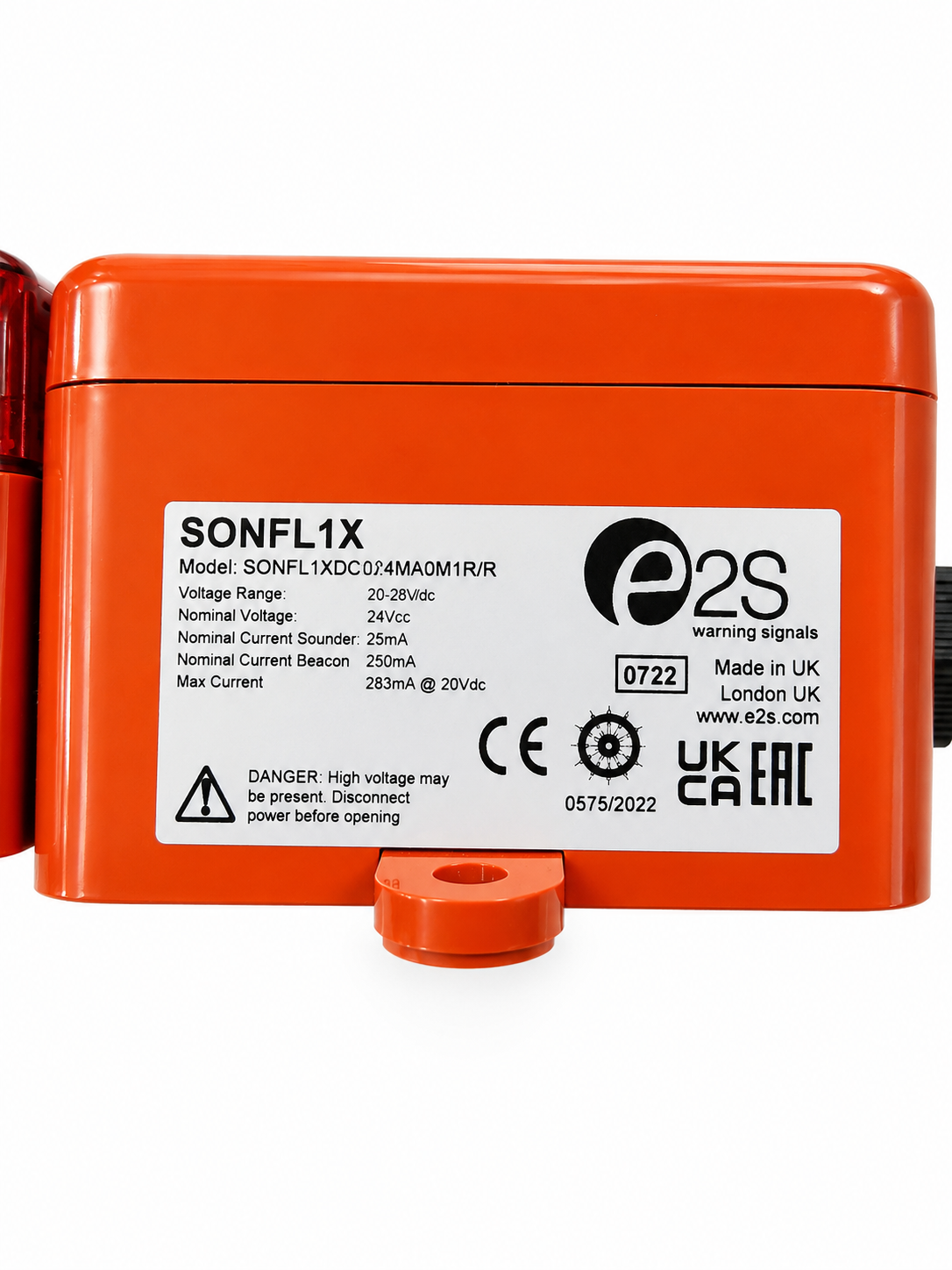

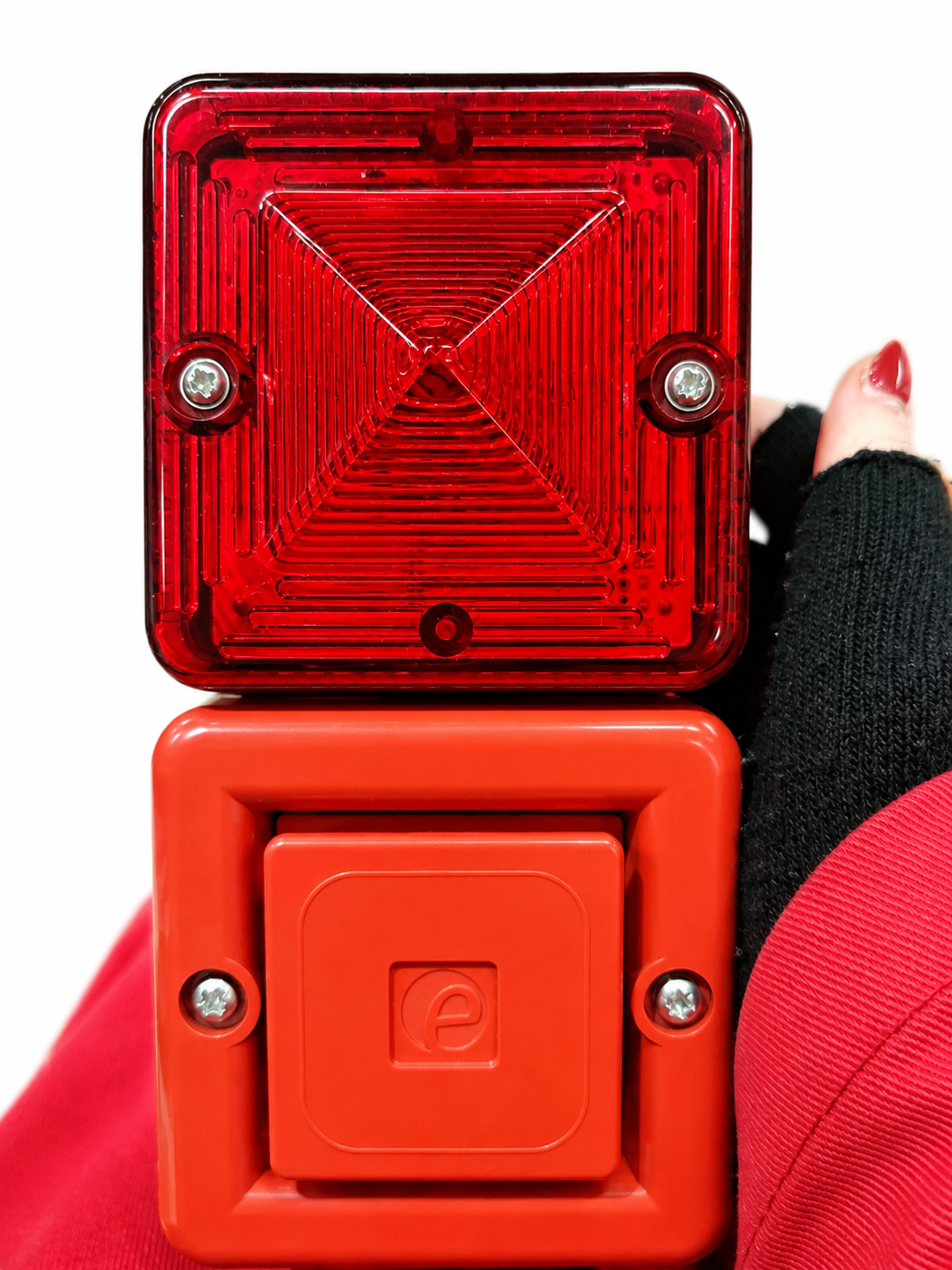

E2S SONFL1X Red Alarm Beacon

The E2S SONFL1X Red Alarm Beacon is a combined high-output audible and visual warning device designed for industrial, fire, security, and process alarm applications. Featuring a powerful electronic sounder and a bright Xenon strobe beacon, the SONFL1X provides clear warning signals in noisy and demanding environments. Its robust IP66-rated enclosure makes it ideal for indoor and outdoor installations across industrial plants, factories, warehouses, and safety systems.

Key Features

• Combined alarm sounder and Xenon strobe beacon
• High-visibility red beacon lens
• Powerful audible warning up to 103 dB(A) at 1 metre
• 5 Joule Xenon flash tube
• 10 selectable alarm tones
• Two-stage alarm operation
• Automatic synchronization of multiple units
• IP66 weatherproof enclosure
• Suitable for fire, security, and process alarms
• Continuous-duty industrial design

Specifications

• Manufacturer: E2S Warning Signals
• Model: SONFL1X
• Type: Combined Sounder & Xenon Beacon
• Beacon Colour: Red (model dependent)
• Sound Output:
  • Up to 103 dB(A) @ 1 metre
  • Nominal 101 dB(A) @ 1 metre
• Alarm Tones: 10 selectable tones
• Alarm Stages: 2-stage operation
• Flash Energy: 5 Joules (5Ws)
• Flash Rate:
  • 1 Hz standard
  • 1.5 Hz and Double Strike on DC versions
• Light Output:
  • Over 200 cd effective intensity
• Protection Rating: IP66
• Housing Material:
  • High-impact flame-retardant ABS
• Supply Voltages:
  • 12VDC
  • 24VDC
  • 24VAC
  • 115VAC
  • 230VAC
• Operating Temperature:
  • -40°C to +55°C
• Weight:
  • Approx. 0.5 kg

Function

The E2S SONFL1X is designed to provide both audible and visual warning signals during alarm conditions. The integrated electronic sounder produces a high-output alarm tone while the Xenon beacon emits intense flashes to ensure alarms are noticed even in noisy or visually challenging environments. The unit can be used for fire alarms, emergency notifications, evacuation systems, security alerts, and industrial process alarms.

Typical Applications

• Fire alarm systems
• Industrial process plants
• Manufacturing facilities
• Chemical processing plants
• Warehouses and logistics centres
• Security systems
• Marine and offshore installations
• Emergency warning systems
• Building management systems
