BEKA BR323SSM Stainless Steel 2-Wire 4-20mA 5 Digit Ex Display Indicator

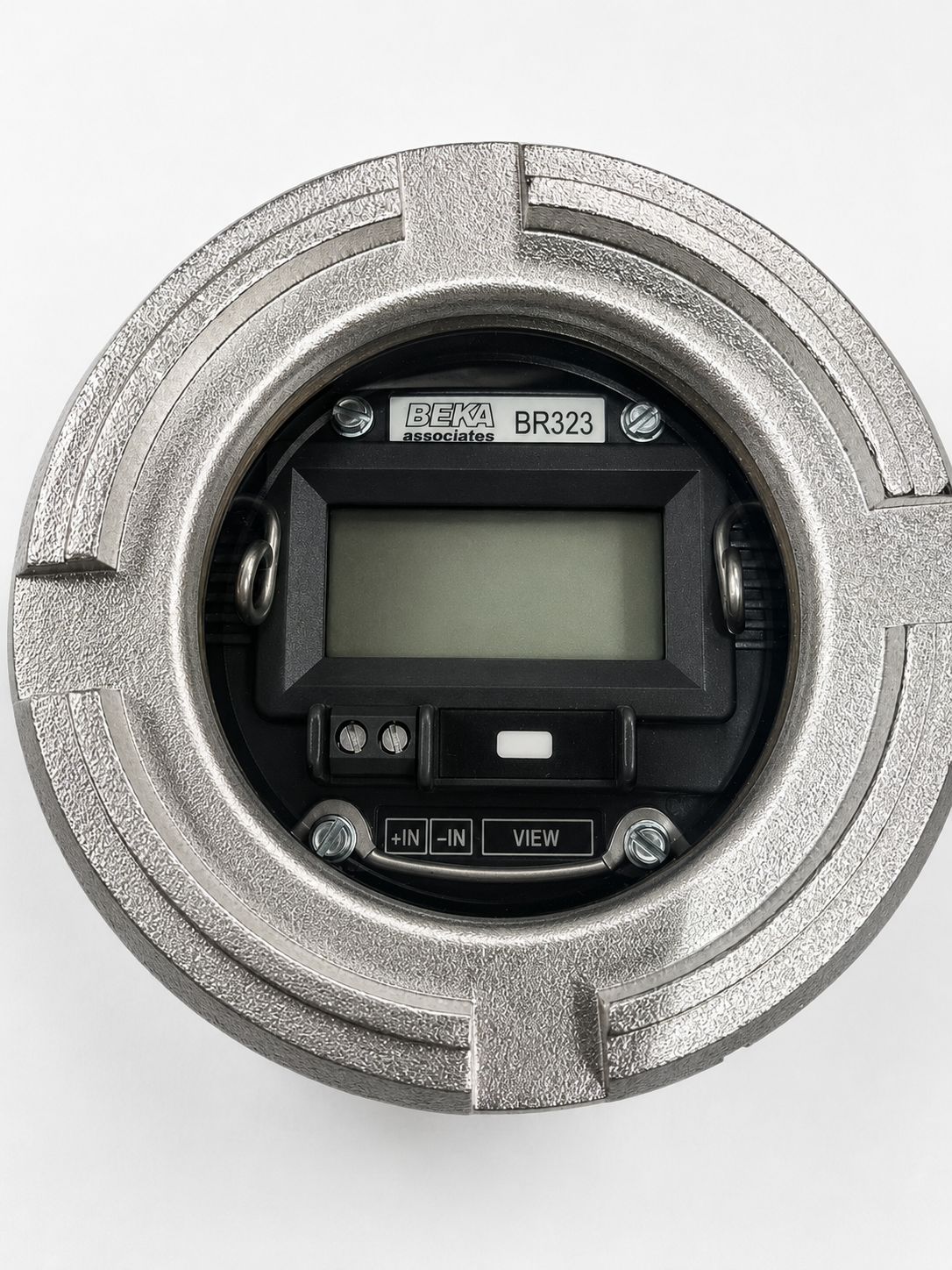

The BEKA BR323SS is a rugged, flameproof, loop-powered digital indicator designed for use in hazardous industrial environments. It provides a clear 5-digit display of any 4–20mA process signal, allowing operators to monitor pressure, temperature, flow, level, or other process variables directly in the field. The unit is housed in a durable 316 stainless steel enclosure, making it suitable for harsh and marine environments.

Key Features

• 5-digit LCD display with engineering units
• Loop-powered operation – no external power supply required
• Suitable for standard 4–20mA process loops
• Low voltage drop of only 2.3V
• Programmable scaling and calibration via free BEKA PC software
• Linear, square-root, and custom linearisation functions
• User-configurable measurement units display
• Adjustable display damping for stable readings
• Flameproof design for hazardous areas
• IP66 / NEMA 4X environmental protection
• Robust 316 stainless steel enclosure (BR323SS model)

Specifications

• Input Signal: 4–20mA current loop
• Display: 5-digit LCD
• Supply Voltage: Up to 30V DC loop supply
• Maximum Loop Current: <110mA
• Voltage Drop: 2.3V
• Enclosure Material: 316 Stainless Steel
• Protection Rating: IP66 / NEMA Type 4X
• Operating Temperature: -20°C to +60°C

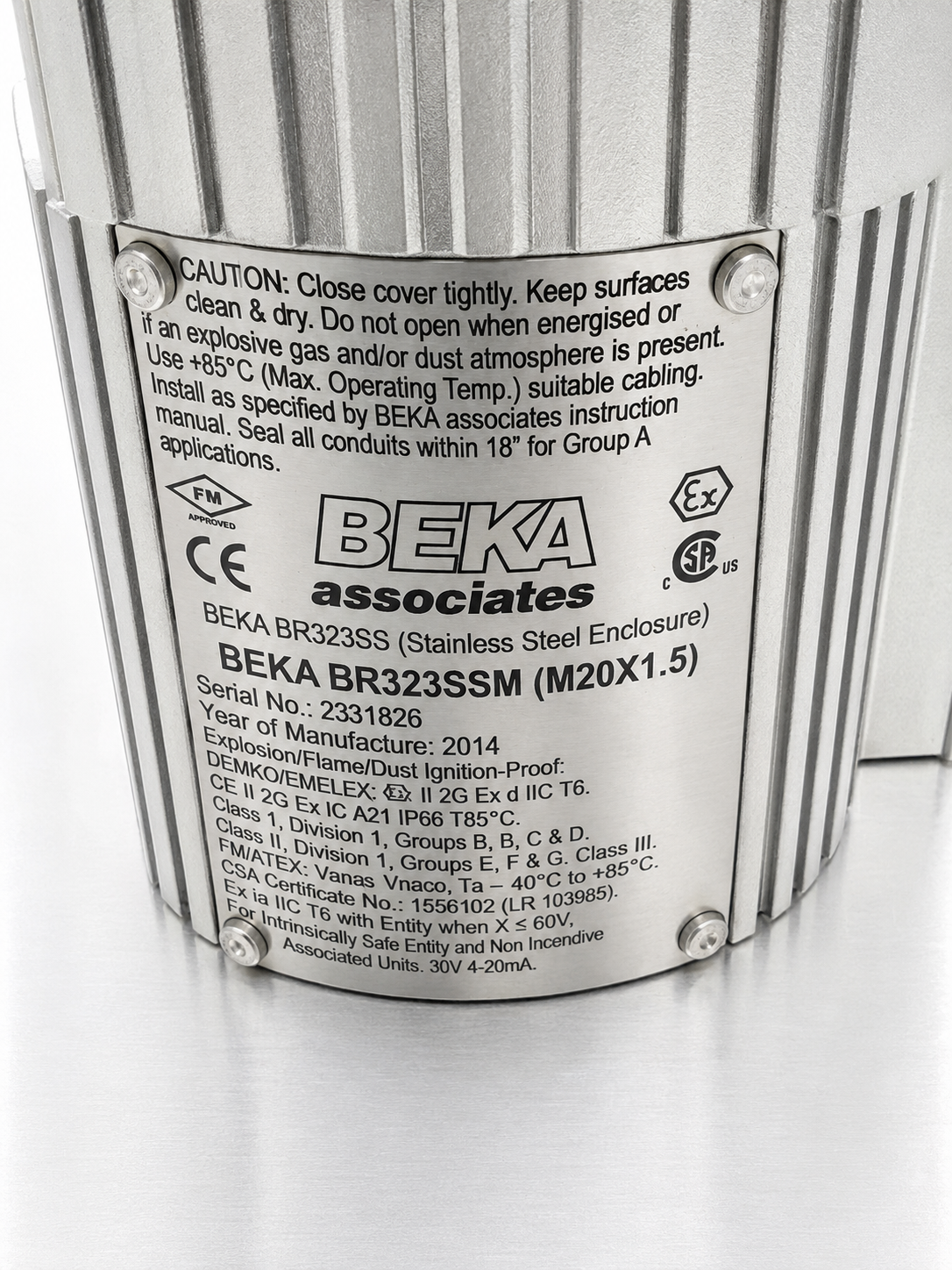

• Hazardous Area Certification: ATEX Ex d IIC T6, Zone 1, 2, 21 & 22 suitable
• Configuration: PC programmable via serial connection and BEKA software

Typical Applications

Ideal for oil & gas, chemical processing, water treatment, marine, power generation, and other industrial process control applications where a local indication of a 4–20mA signal is required in hazardous areas.

Brand: BEKA

MPN: BR323
