BEKA BA454D Flow Batch Controller Intrinsically Safe ATEX Ex ia 4.5 Digit

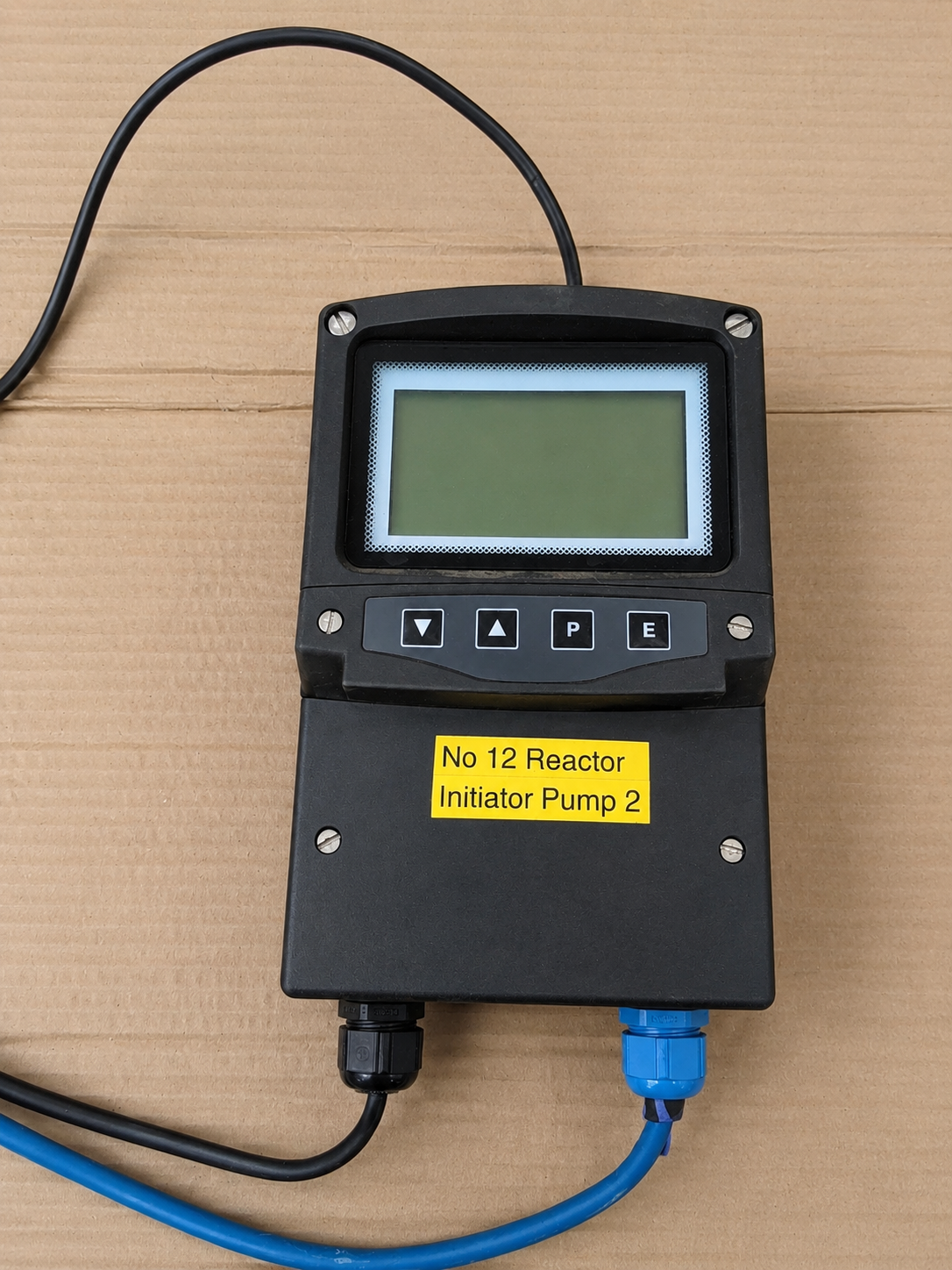

Used BEKA BA454D field-mounted flow batch controller, designed for accurate dispensing and batching applications in hazardous areas.

Specifications:

• Manufacturer: BEKA associates Ltd
• Model: BA454D
• Type: Flow Batch Controller
• Display: High-contrast LCD with backlight
• Display: 4½ digit indicator
• Input: Pulse or 4–20 mA analogue input
• Batch setpoints: 9 selectable setpoints
• Outputs: 3 configurable galvanically isolated solid-state outputs
• Protection: IP66
• Certification: ATEX intrinsically safe

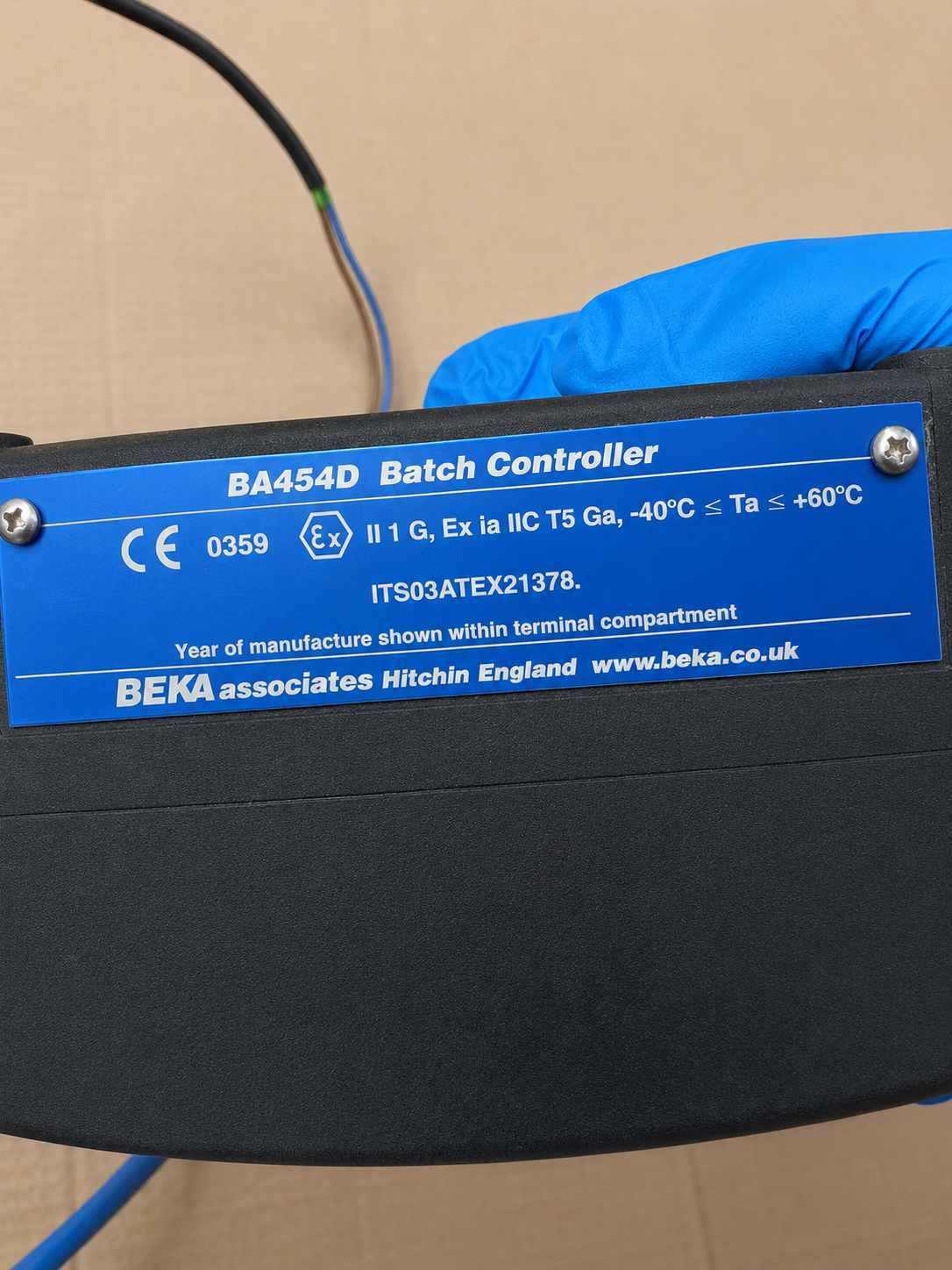

• Ex rating: II 1 G, Ex ia IIC T5 Ga
• Ambient temperature: -40°C to +60°C
• Mounting: Field mounting
• Enclosure: GRP
• Serial No.: 07133E/18/802
• Code: BA454D

The BA454D is designed for use with flowmeters and sensors and can perform single- or two-stage batching, with outputs available for controlling valves or pumps. It also incorporates a 16-point lineariser and square-root extractor.

Condition: Used. The unit shows signs of previous industrial use
