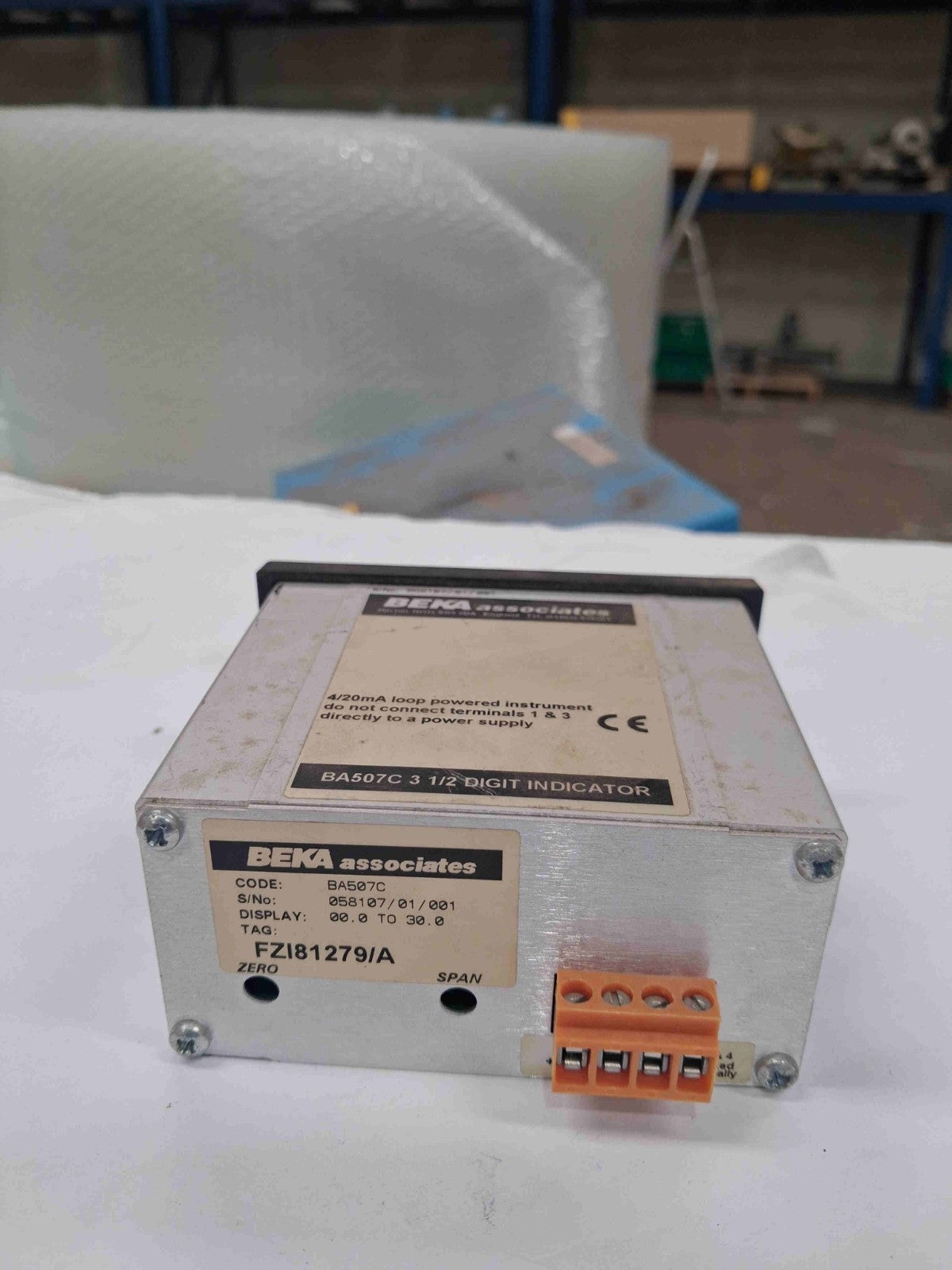

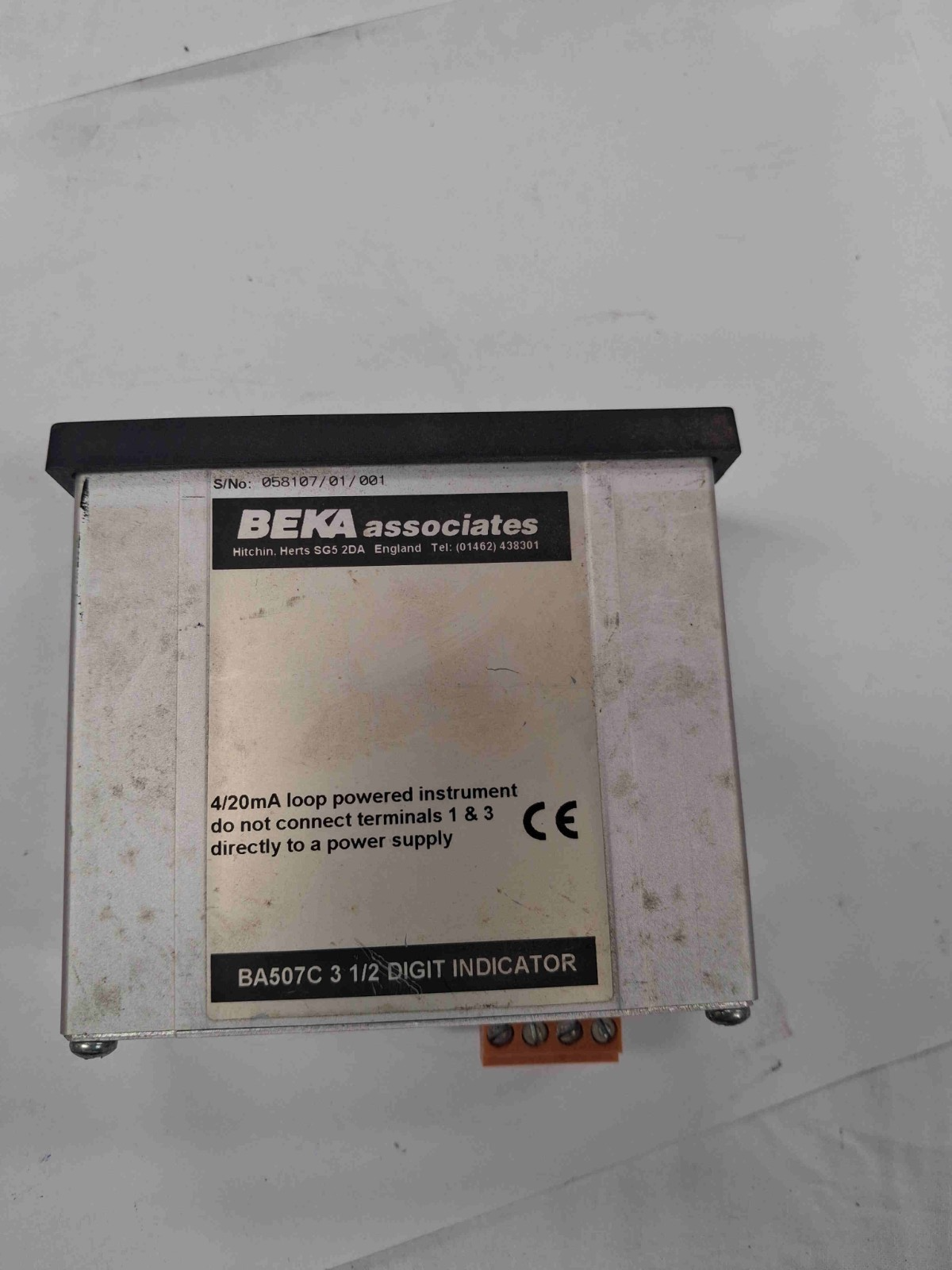

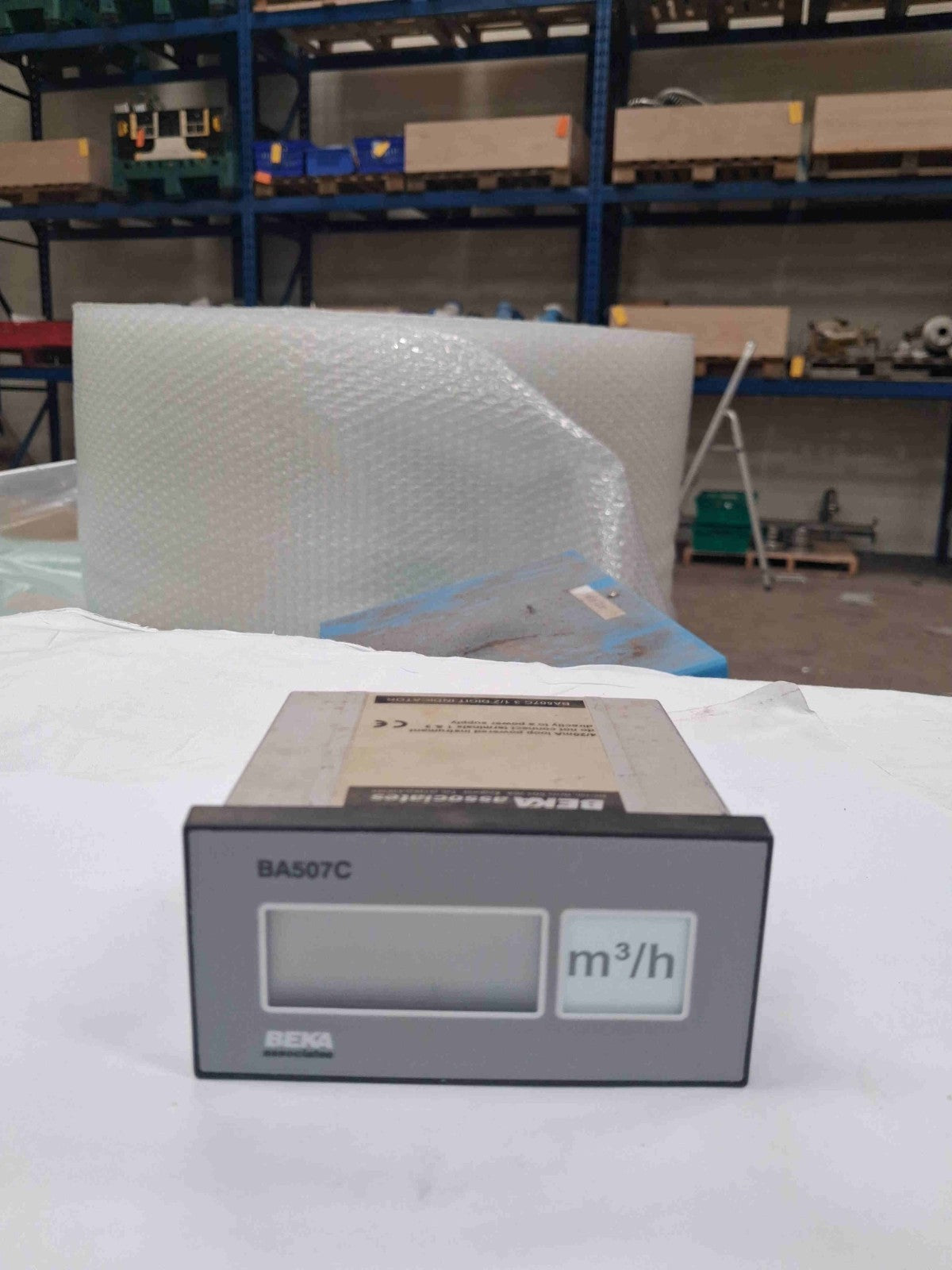

BEKA Associates BA507C 3 1/2 Digital Indicator

Genuine BEKA Associates BA507C 3½ digit loop powered process indicator designed for displaying standard 4–20 mA process signals.

This unit has been configured to display 0.0–30.0 m³/h, making it suitable for flow measurement applications, although it can be re-scaled for use with pressure, level, temperature or other 4–20 mA transmitters.

The BA507C operates directly from the current loop, eliminating the need for a separate power supply and providing a simple, reliable local process display.

Specifications

• Manufacturer: BEKA Associates
• Model: BA507C
• Device Type: Loop Powered Process Indicator
• Display: 3½ Digit LCD
• Input Signal: 4–20 mA
• Configured Display Range: 0.0–30.0 m³/h
• Engineering Units: m³/h
• Loop Powered Operation
• Adjustable Zero & Span
• Panel Mount Design
• Low Power Consumption
• Suitable for Industrial Process Instrumentation

Applications

• Flow Measurement
• Water Treatment
• Chemical Processing
• Industrial Automation
• Process Plants
• Pressure Monitoring
• Level Measurement
• Temperature Indication
• General 4–20 mA Instrumentation

Condition

Used industrial surplus.

Shows cosmetic signs of previous industrial use including minor marks and scratches. The unit has not been functionally tested unless otherwise stated

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

MSTAK Email: mdalrymple@stakam.co.uk

Quantity

We have 19 total units available.
