AxFlow Aturia 6X4X25 Centrifugal Pump ATEX Zone 1 Electric Motor Driven

Contact

We have a wide range of industrial items such as pressure transmitters, temperature transmitters, flow meters, and loads more!

MSTAK Contact Number: 07915071899

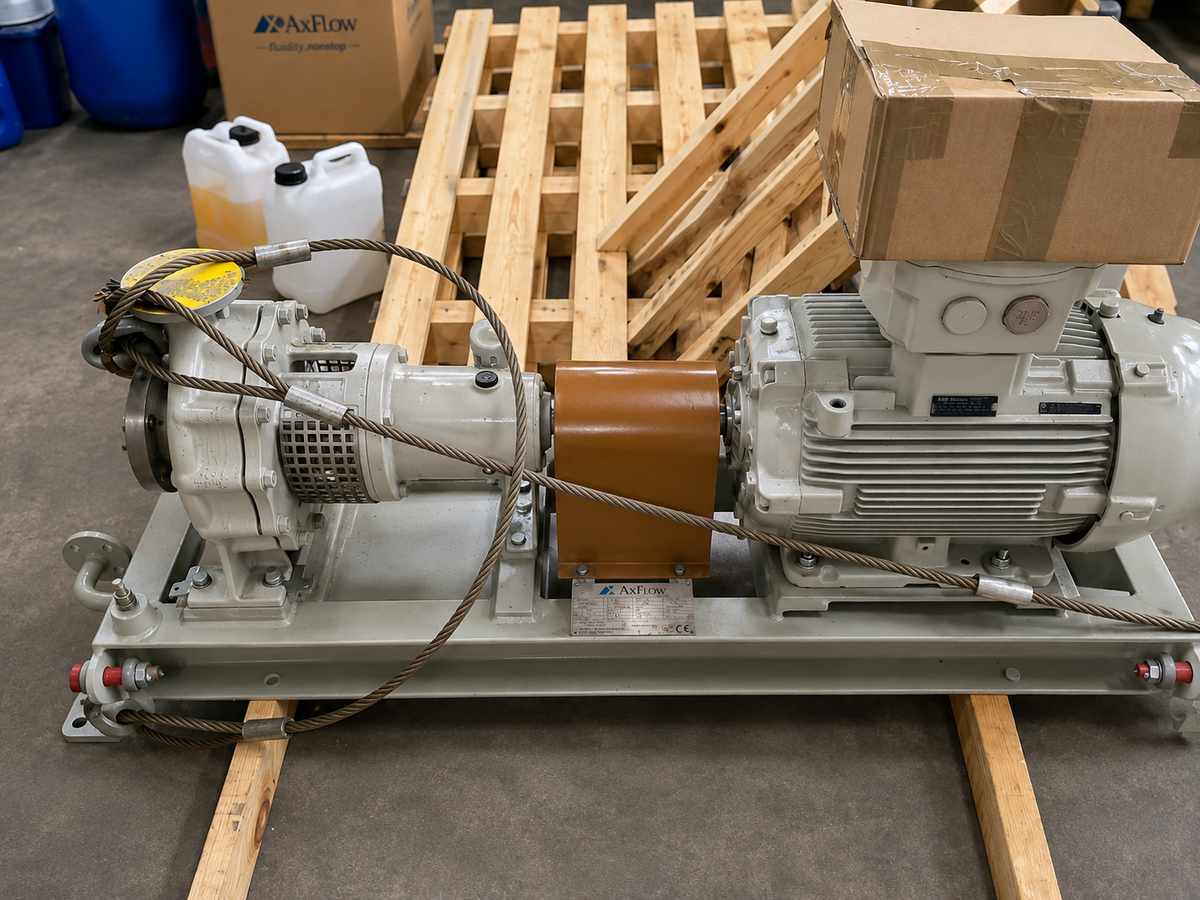

Used AxFlow / Aturia 6X4X25 industrial centrifugal pump, supplied as a complete electric motor-driven pump assembly on its fabricated baseplate.

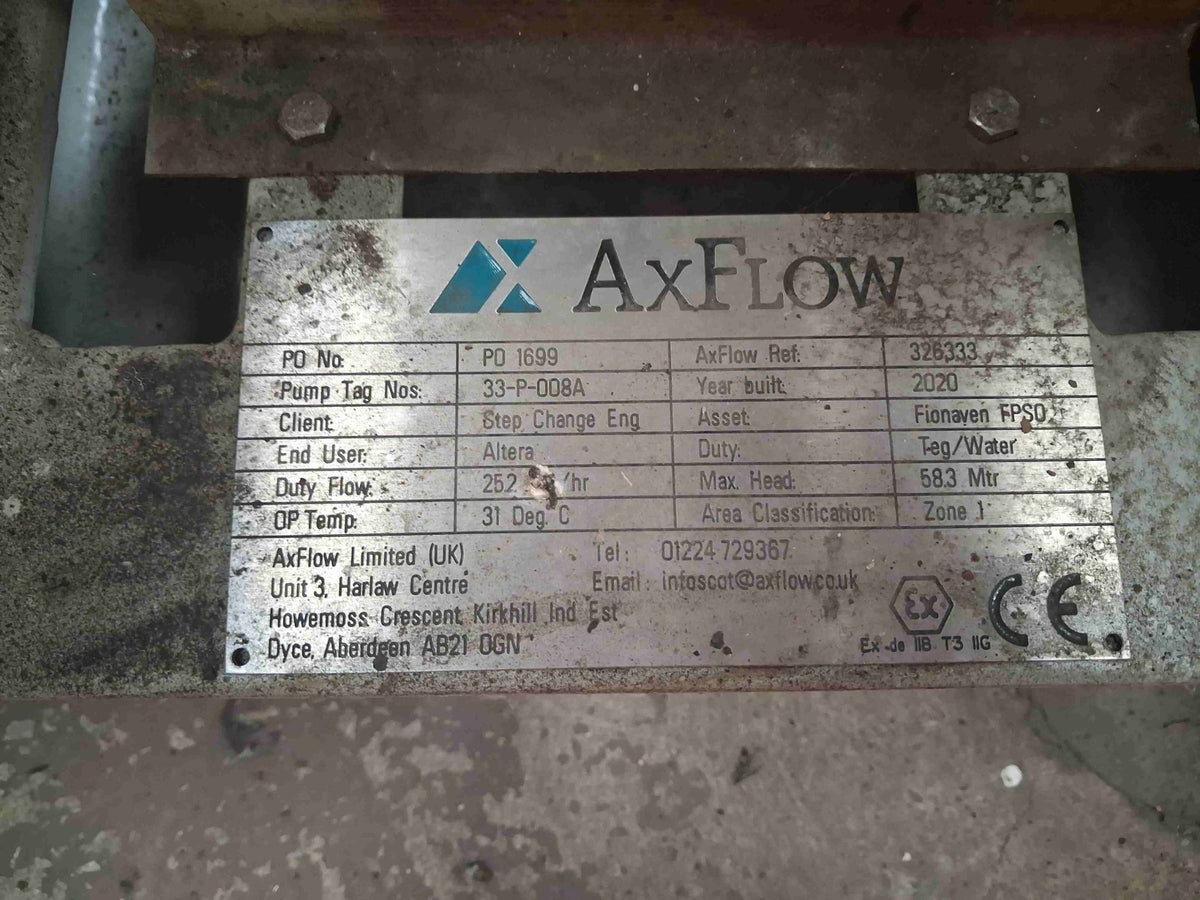

The pump is fitted with original identification plates and an AxFlow project/data plate. The AxFlow plate identifies the unit as a 2020-built pump supplied for an industrial process application.

Equipment Details

• Manufacturer: AxFlow / Aturia
• Pump: 6X4X25
• Type: Industrial centrifugal pump
• Drive: Electric motor
• Year Built: 2020
• AxFlow Reference: 326333
• PO No.: PO 1699
• Pump Tag: 33-P-008A
• Client: Step Change Engineering
• End User: Altera
• Asset: Fionaven FPSO
• Duty: Teg/Water
• Duty Flow: Approx. 252 m³/hr
• Maximum Head: 58.3 m
• GP Temperature: 31°C
• Area Classification: Zone 1

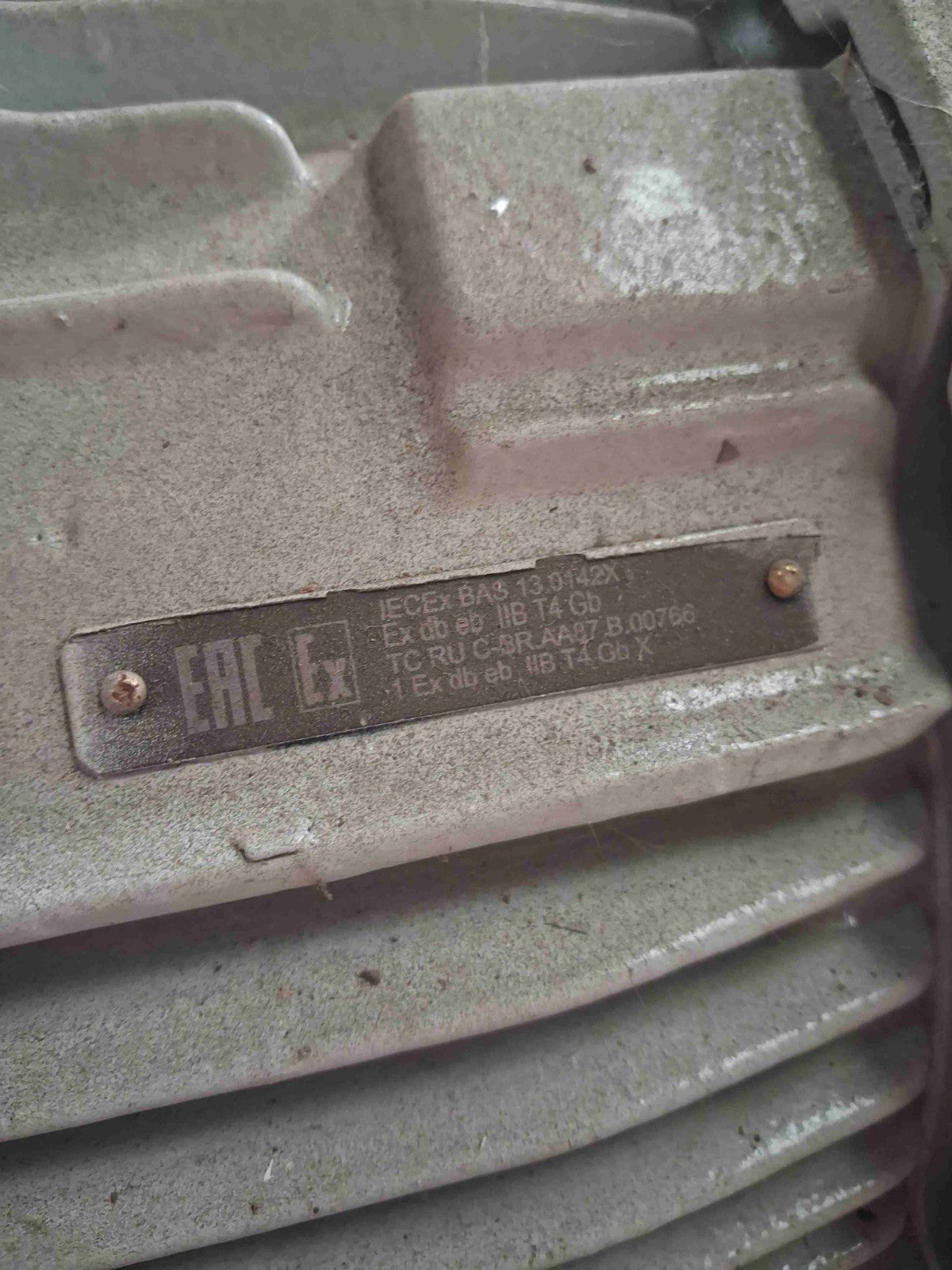

• ATEX marking shown: Ex db IIB T3 IIG
• Condition: Used / untested

Pump Construction

Heavy-duty industrial centrifugal pump assembly comprising:

• Aturia centrifugal pump
• Electric motor
• Flexible coupling
• Coupling guard
• Fabricated baseplate
• Flanged process connections
• Lifting/handling points

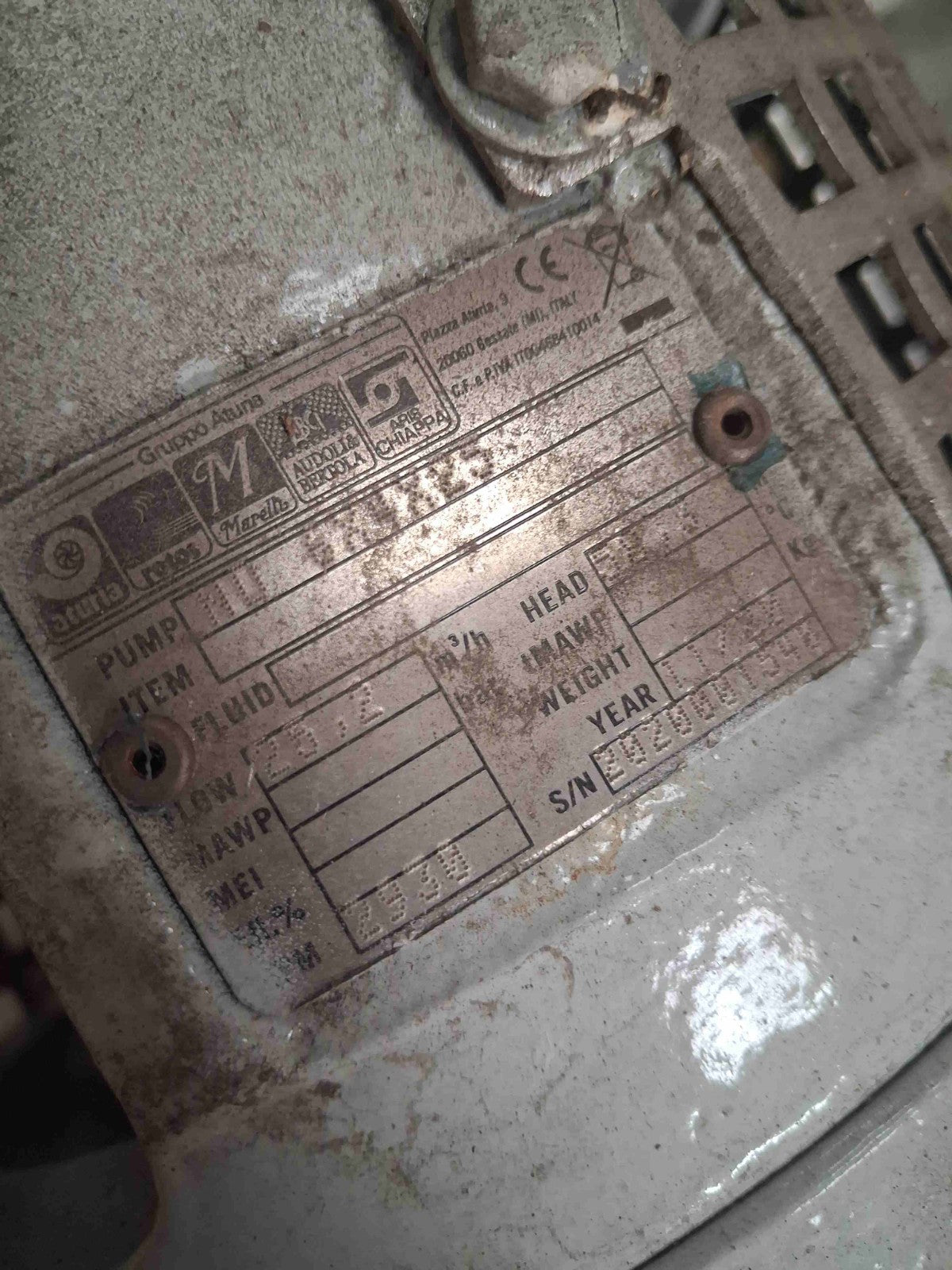

• Original manufacturer's identification plates

AxFlow's Aturia ND-series documentation identifies the 6×4×25 as an industrial centrifugal-pump configuration designed to ISO 2858 / ISO 5199 standards.

Condition

The pump is in used industrial condition and shows signs of previous service and storage.
